Part Number 19313, 19315, 19317, 19318

13'', 15'', 17'' or 18'' High Performance Stainless Steel Reverse Rotation Flex Fan, Black Hub

Description

Rated for engine speeds up to 8,000 rpm, these high performance reverse rotation flex fans include 6 stainless steel blades and a black powder coated hub. A very good choice for applications with limited space between the radiator and water pump.

Diameter Part Number
13" 19313

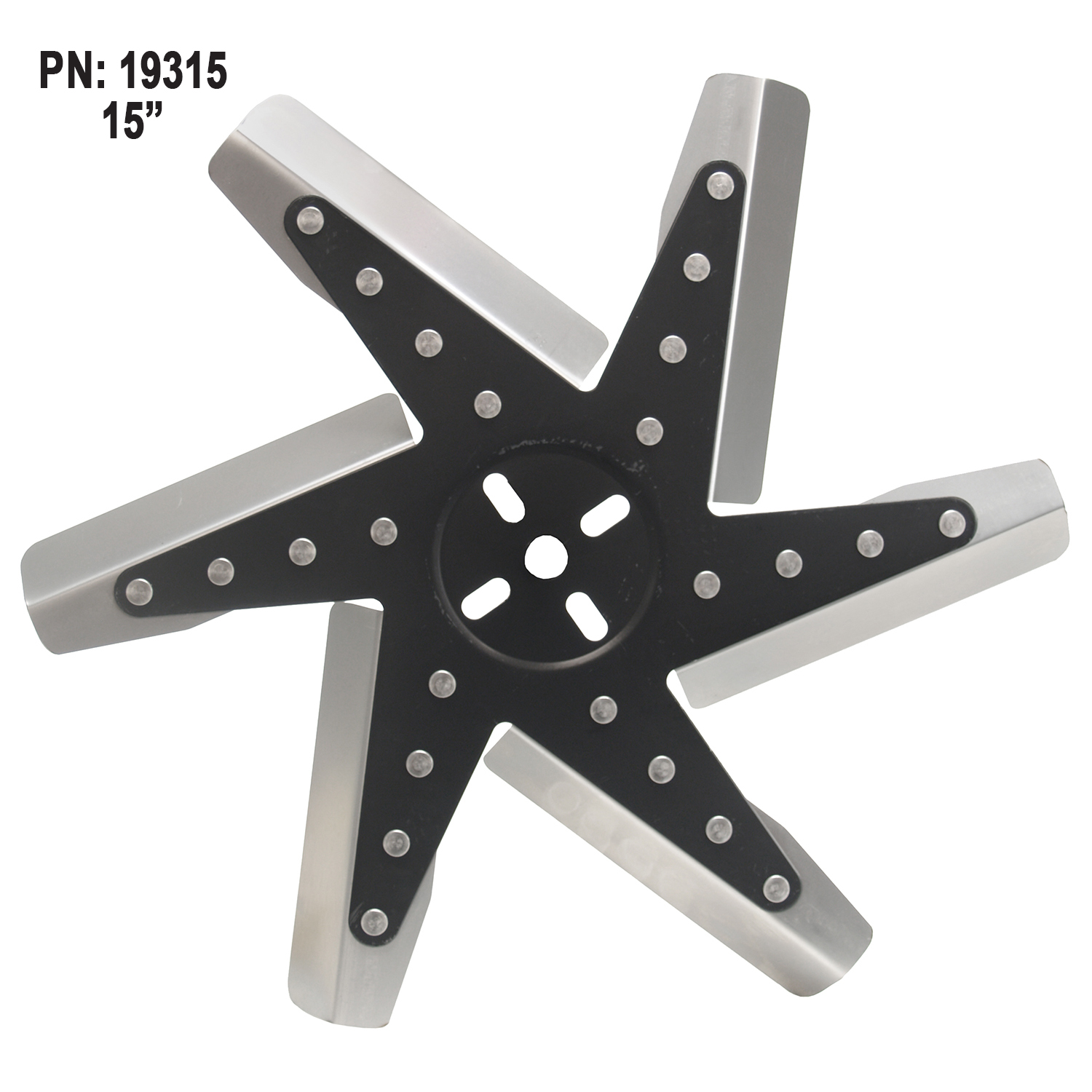

15" 19315
17" 19317

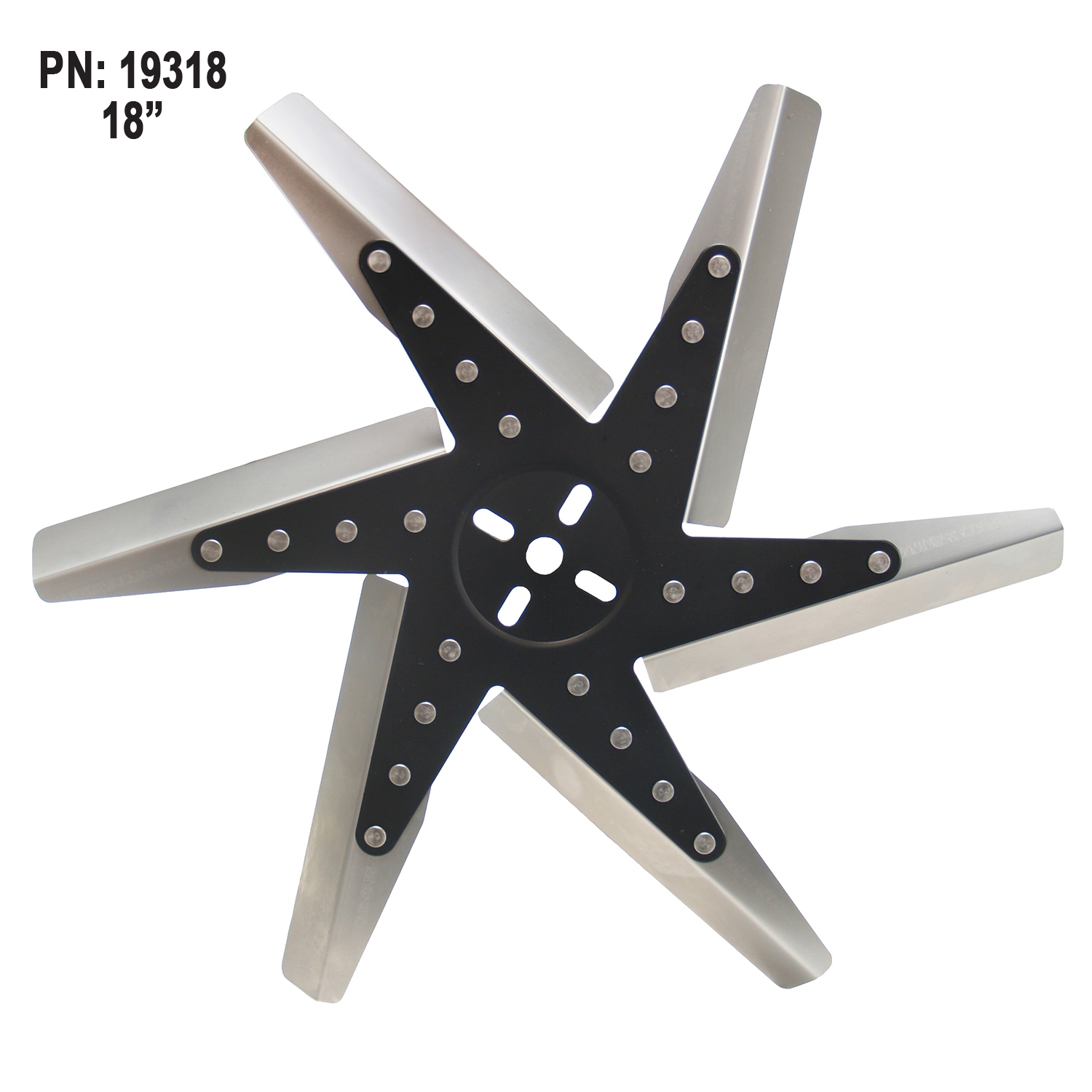

18" 19318



Features
  • Stainless steel fan blades
  • Black powder coated hub
  • Rated up to 8,000 RPM
  • Reverse rotation flex fan design
Specifications
  • PN 19313 Diameter: 13 3/8''
  • PN 19315 Diameter: 15 1/4''
  • PN 19317 Diameter: 17''
  • PN 19318 Diameter: 18 1/4''



Following specifications apply to all diameters

  • Depth: 1-1/8"
  • Flange bolt spacing: 1-3/4' - 2-1/4"
  • Mounting surface to front: 1/4"
  • Mounting surface to rear: 7/8"
  • Blade pitch: 50°
  • Rotation: Reverse (counter clockwise)
  • Hub construction: Powder coated black steel
  • Blade construction: Stainless steel
