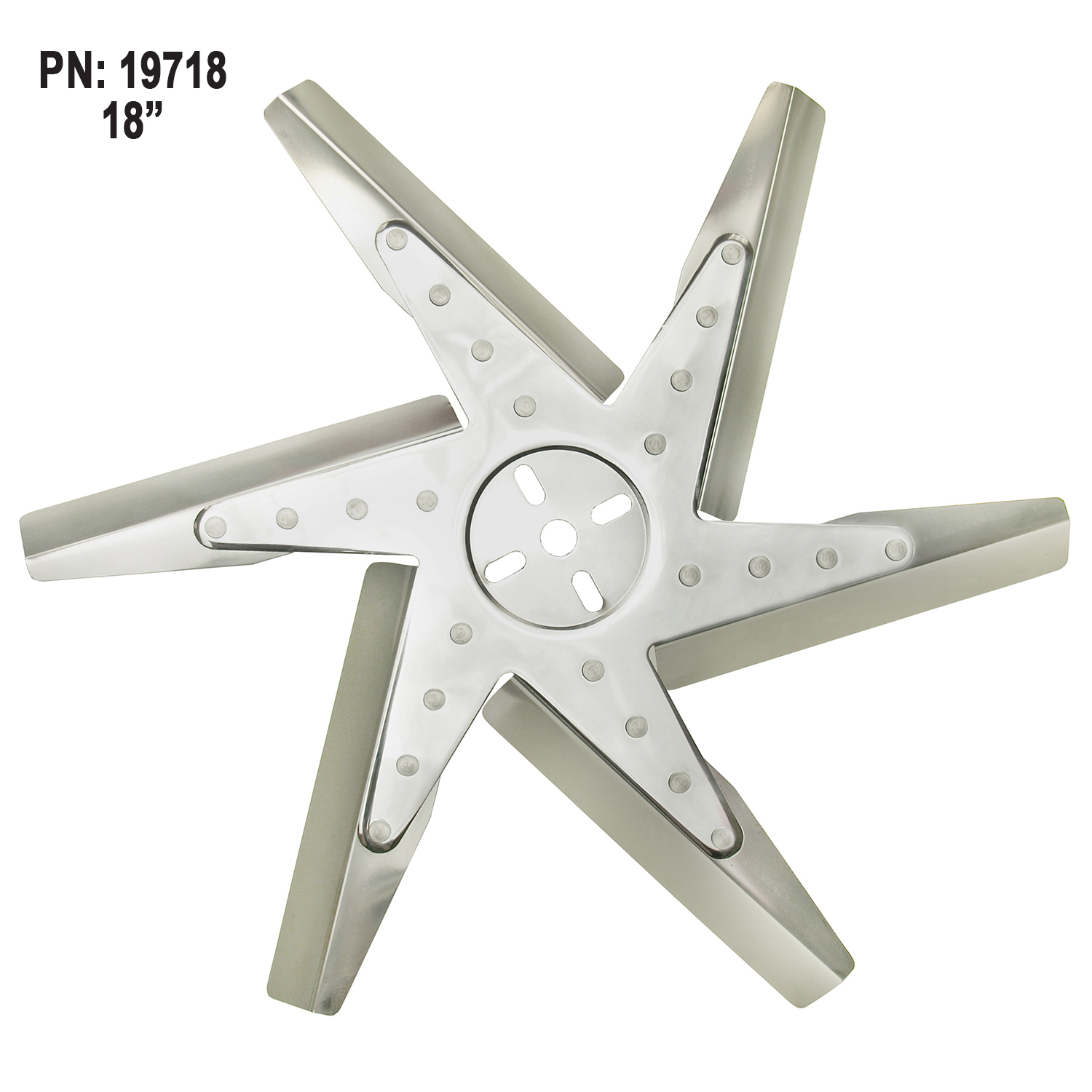

Part Number 19713, 19715, 19717, 19718
13'', 15'', 17'' or 18'' High Performance Stainless Steel Reverse Rotation Flex Fan, Chrome Hub
Description
Rated for engine speeds up to 8,000 rpm, these attractive high performance reverse rotation flex fans include 6 polished stainless steel blades and a polished and chrome plated hub. A very good choice for applications with limited space between the radiator and water pump.
| Diameter | Part Number |
| 13" | 19713 |
| 15" | 19715 |
| 17" | 19717 |
| 18" | 19718 |
Features
- Stainless steel fan blades
- Chrome plated hub
- Rated up to 8,000 RPM
- Reverse rotation flex fan design
Specifications
- PN 19713 Diameter: 13 3/8''
- PN 19715 Diameter: 15 1/4''
- PN 19717 Diameter: 17''
- PN 19718 Diameter: 18 1/4''
Following specifications apply to all diameters
- Depth: 1-1/8"
- Flange bolt spacing: 1-3/4' - 2-1/4"
- Mounting surface to front: 1/4"
- Mounting surface to rear: 7/8"
- Blade pitch: 50°
- Rotation: Reverse (counter clockwise)
- Hub construction: Chrome plated steel
- Blade construction: Polished stainless steel
