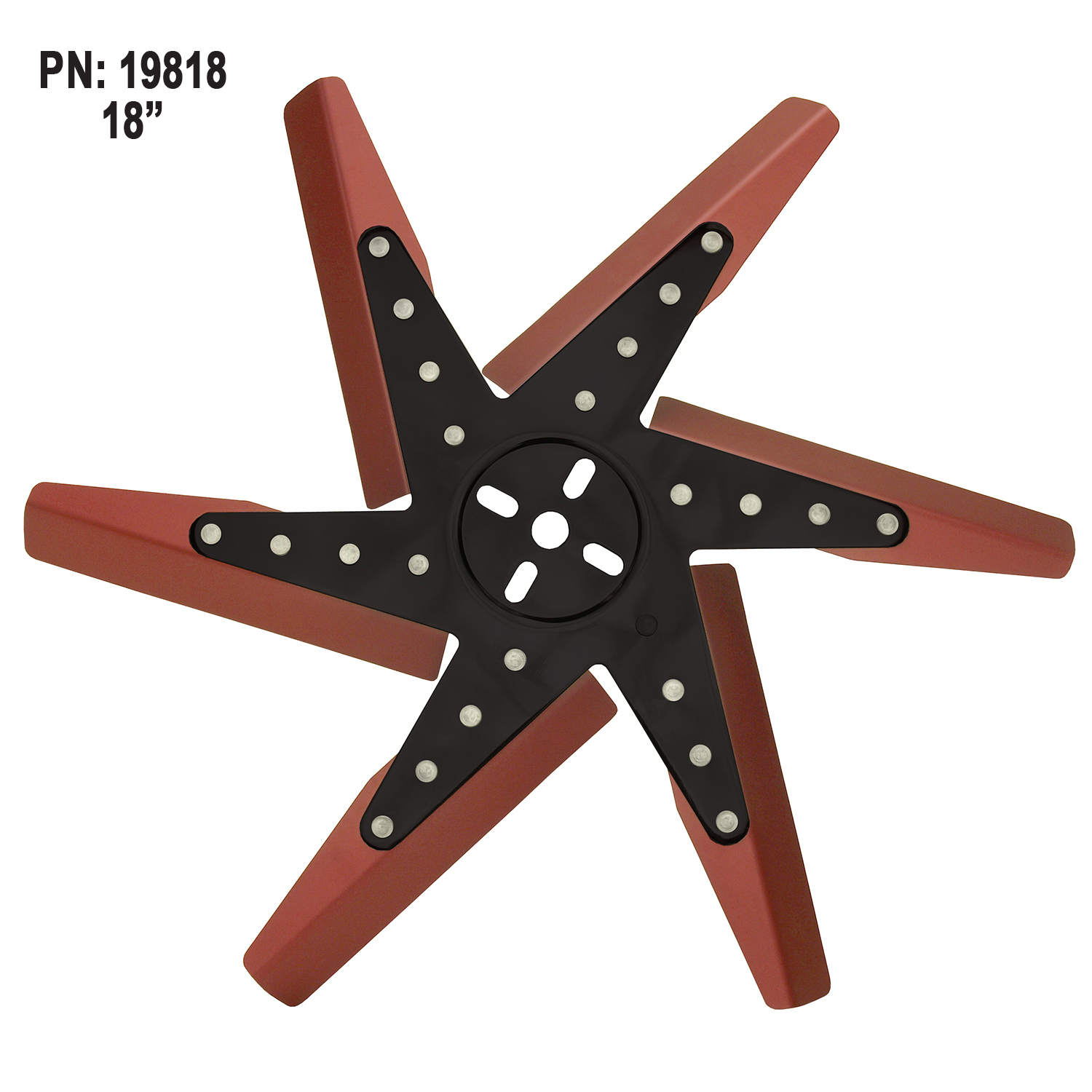

Part Number 19817 & 19818
17'' or 18'' High Performance Aluminum Standard Rotation Flex Fan, Red Blade with Black Hub
Description
These high performance, standard rotation flex fans feature 6 red anodized aluminum blades and a black powder coated steel hub and is rated for engine speeds up to 8,000 rpm. Popular with hot rodders and muscle car owners, a perfect solution for applications where space is at a premium.
| Diameter | Part Number |
| 17" | 19817 |
| 18" | 19818 |
Features
- Red anodized aluminum fan blades
- Black powder coated hub
- Rated up to 8,000 RPM
- Standard rotation flex fan design
Specifications
- PN 19817 Diameter: 17''
- PN 19818 Diameter: 18 1/4''
Following specifications apply to all diameters
- Depth: 1-1/8"
- Flange bolt spacing: 1-3/4' - 2-1/4"
- Mounting surface to front: 1/4"
- Mounting surface to rear: 7/8"
- Pilot Hole: 5/8"
- Blade pitch: 50°
- Rotation: Standard (clockwise)
- Hub construction: Powder coated black steel
- Blade construction: Anodized red aluminum
