Part Number 17313, 17315, 17317, 17318, 17319, 17320
13'', 15'', 17'', 18'', 19'' or 20'' Standard Rotation Rigid Race Fan, Steel Blade
Description
Designed to provide maximum full time airflow across the rpm range, this standard rotation rigid race fan features a strong steel hub, 6 steel fan blades and is rated up to 8,000 rpm. Comes finished in durable black powder coat.
| Diameter | Part Number |
| 13" | 17313 |
| 15" | 17315 |
| 17" | 17317 |
| 18" | 17318 |
| 19" | 17319 |
| 20" | 17320 |
Features
- Steel fan blades
- Maximum full time airflow
- Rated up to 8,000 RPM
- Standard rotation rigid fan design
Specifications
- PN 17313 Diameter: 13'' - Depth 2 1/4"

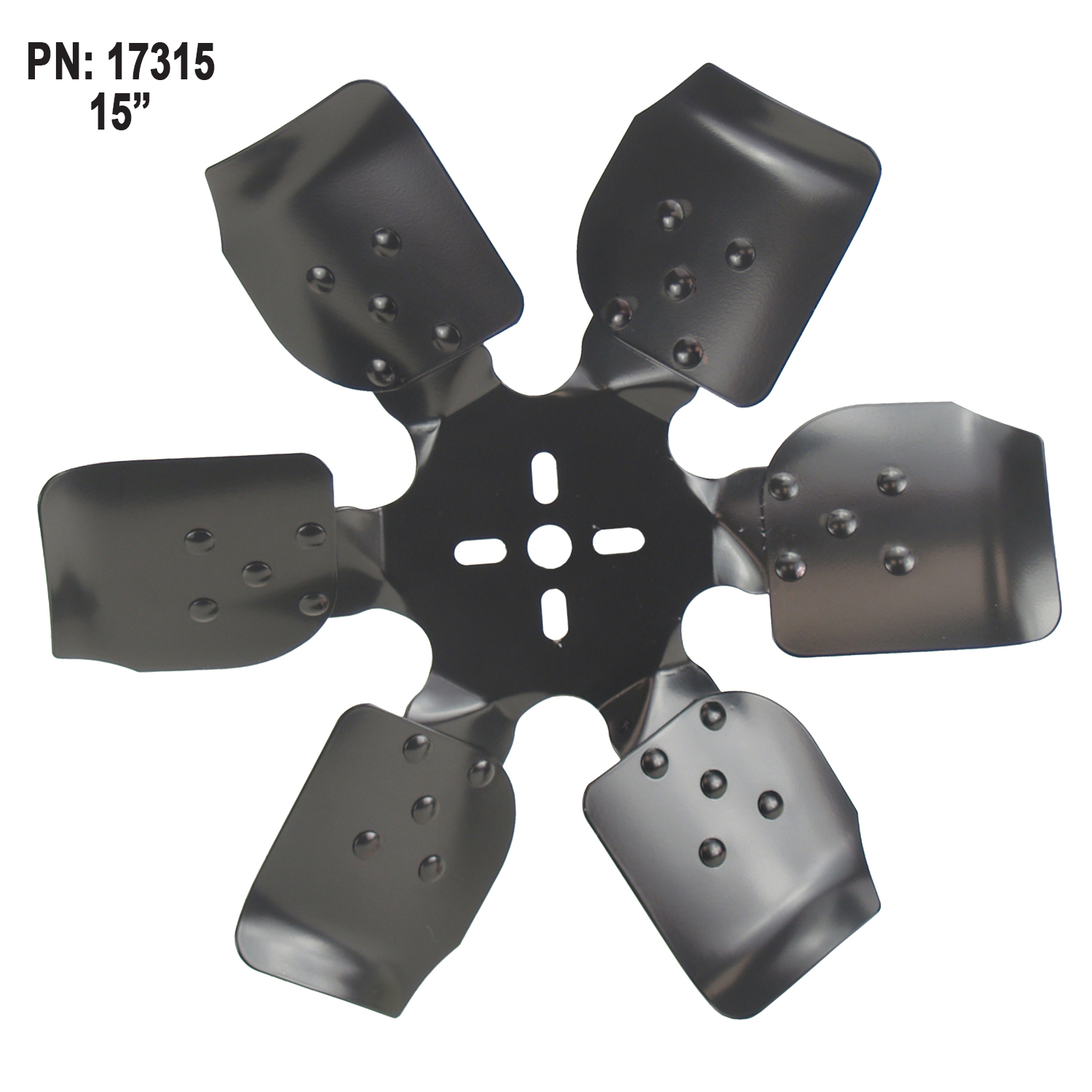

- PN 17315 Diameter: 15'' - Depth 2 7/16"
- PN 17317 Diameter: 17'' - Depth 2 5/16"
- PN 17318 Diameter: 18'' - Depth 2 1/4"
- PN 17319 Diameter: 18 7/8'' - Depth 2 1/4"
- PN 17320 Diameter: 19 7/8'' - Depth 2 3/8"
Following specifications apply to all diameters
- Flange bolt spacing: 1 3/4" - 2 1/4"
- Mounting surface to front: 1 7/16"
- Mounting surface to rear: 3/4"
- Pilot Hole: 5/8"
- Blade pitch: 28°
- Rotation: Standard (clockwise)
- Construction: Powder coated black steel
