Direct Fit 1986-2006 Jeep Wrangler TJ/YJ Performance Electric Fan Kit - 19-1/2

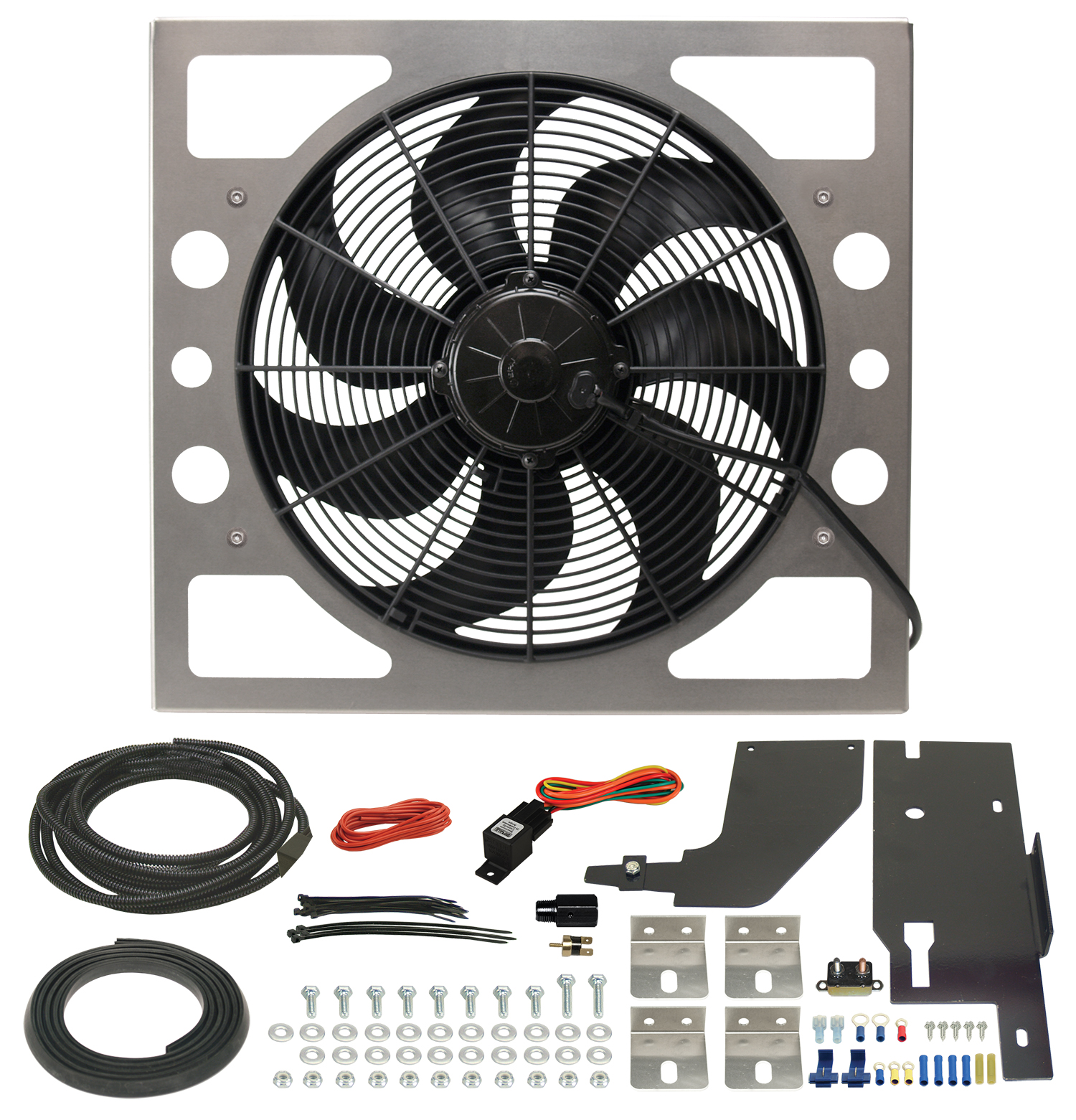

Electric Fan Kit, Fits 1986-2006 Jeep Wrangler TJ/YJ 20161
201616
201619

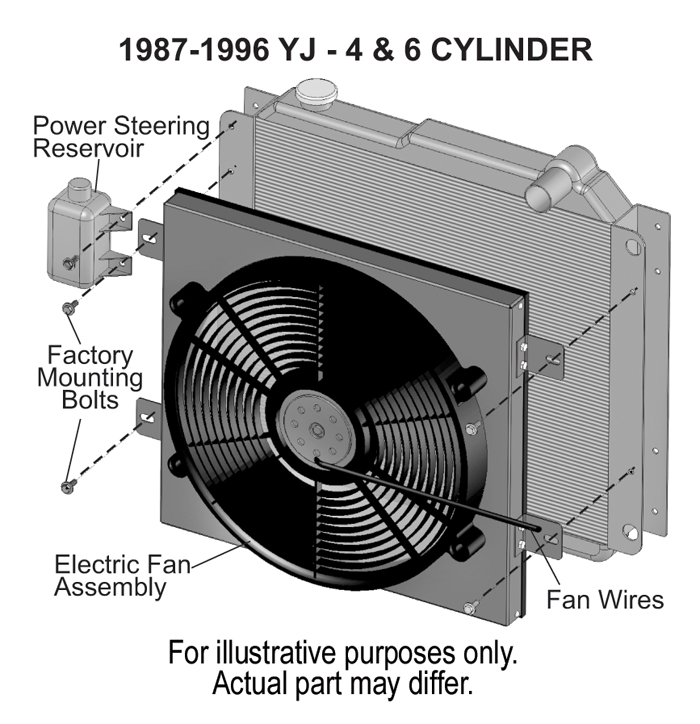

20161-Illustration

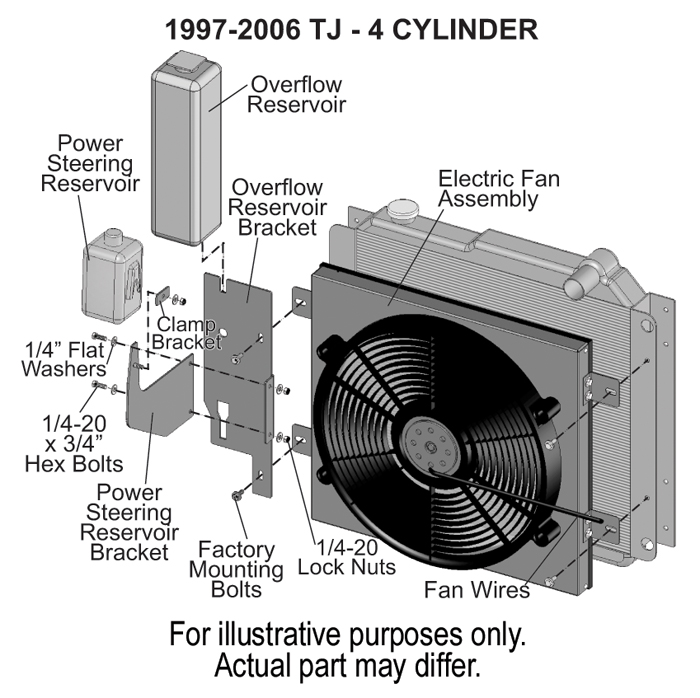

20161-Illustration2

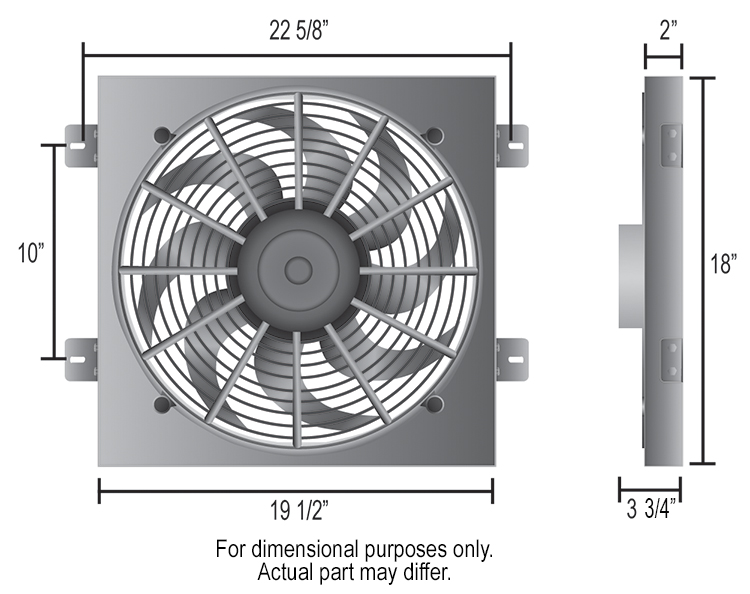

20161-dimensions5
Description

This direct fit electric cooling fan assembly is the same as all of our products: the kit comes complete from the factory without the need to spend extra on necessities such as power steering reservoir brackets or coolant recovery tank brackets.  Everything you MIGHT need is included, except of course the tools. Leave your drill in your toolbox, you won't need it here. We take a thermostatically-controlled high performance 16" skewed blade electric fan motivated by a 265 watt IP68 certified waterproof/dustproof motor and a laser-cut heavy duty aluminum shroud, along with all necessary brackets, fittings, relay harness, and mounting hardware to create the ultimate direct fit electric fan on the market. Fits ALL 4 and 6 cylinder Jeep Wrangler YJ's and TJ's.

Features
  • Replaces fan clutch, fan shroud & new shroud mounts to factory locations
  • Complete kit includes everything you need for a do-it-yourself installation
  • Radiator reservoir remount brackets included (used on some 4 & 6 cylinder applications)
  • Aluminum shroud
  • Thermostatic control included
  • A/C override circuit included
  • Auto resetting circuit breaker included
  • Easy to follow step-by-step instructions




Specifications
  • Fan size: 16"
  • CFM: 2400
  • Amp draw: 25.4
  • Width: 19-1/2"
  • Height: 18"
  • Depth: 1 5/8"
  • Overall depth: 3-5/8"
  • Mounting: 10" x 22-5/8"
  • Airflow: Puller
