Brushless Single Powerpack - 17'' RAD Fan/Aluminum Shroud w/ Built-in PWM Controller
Get complete control of your engine temperature! Derale Performance has combined their high-performing shrouded Powerpacks with the ultimate fan controller. Using a brushless electric fan incorporated into an engineered shroud, this Powerpack can conquer even the most difficult cooling conditions. These units feature a Aluminum shroud measuring only 2 13/16" in depth and with the electric fan the overall thickness is only 3 1/2". This 17" brushless electric fan is one of the best in our line-up offering up to 2800 CFM and is specifically designed to thrive on thick, tight fin radiator cores. Now add the PWM Fan Controller with built-in soft start technology. The controller utilizes Pulse Width Modulation to constantly adjust electric fan speeds from 0-100%, to maintain 185°F, 195°F or 215°F temperature. No more reacting to the engine temps, you can control it! This allows the 17” brushless electric fan to operate at the percentage needed, instead of 100% all the time, therefore increasing component life and eliminating amperage spikes.
-185 PN: PWM Sensor maintains Temps at 185°F
-195 PN: PWM Sensor maintains Temps at 195°F
-215 PN: PWM Sensor maintains Temps at 215°F
| 185°F PWM Sensor |
195°F PWM Sensor |
215°F PWM Sensor |
Width |
Height |
Overall Depth |
Depth |
| 67922-185 | 67922-195 | 67922-215 | 22 1/4" | 17 5/8" | 3 1/2" | 2 13/16" |
| 67923-185 | 67923-195 | 67923-215 | 21" | 17 1/8" | 3 1/2" | 2 13/16" |

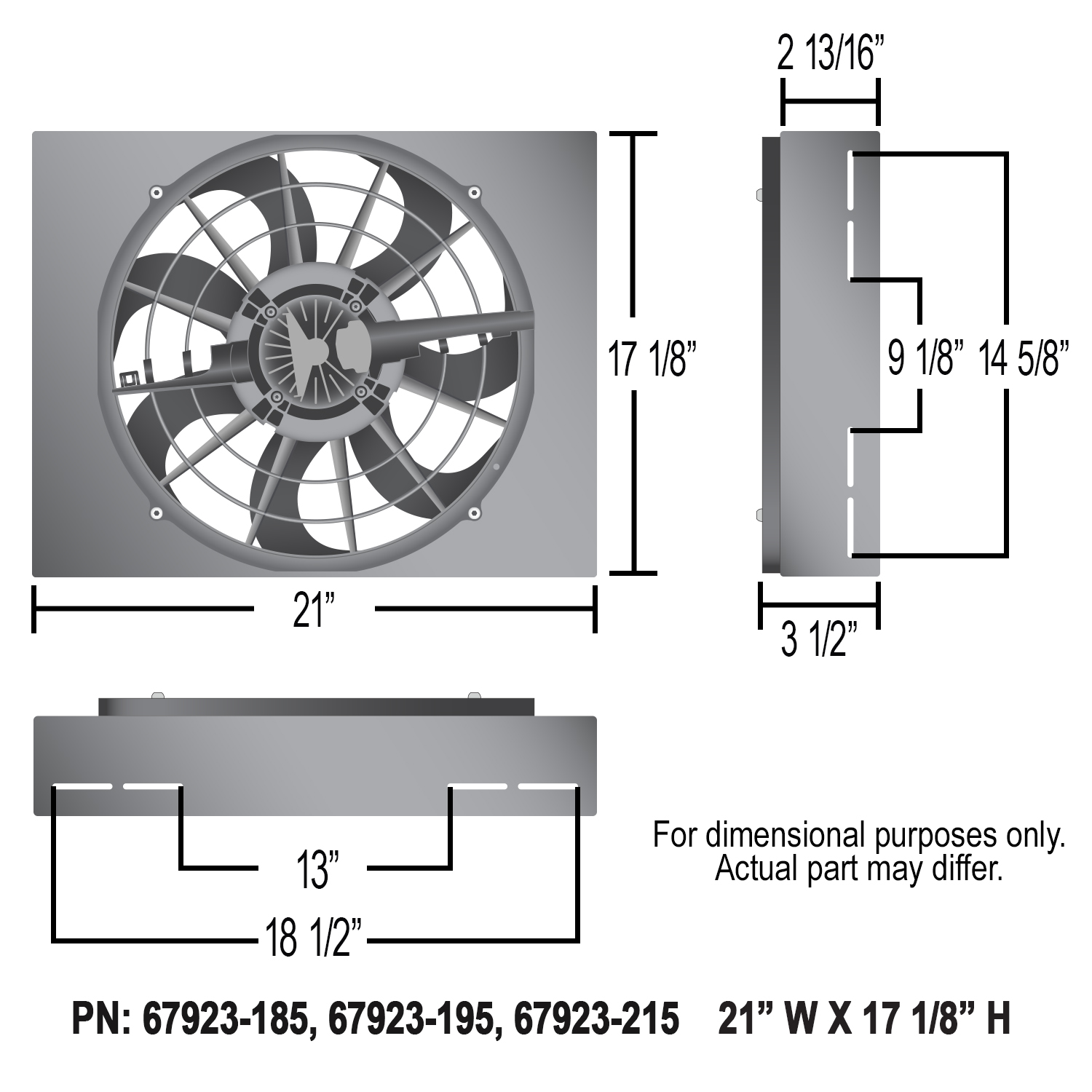

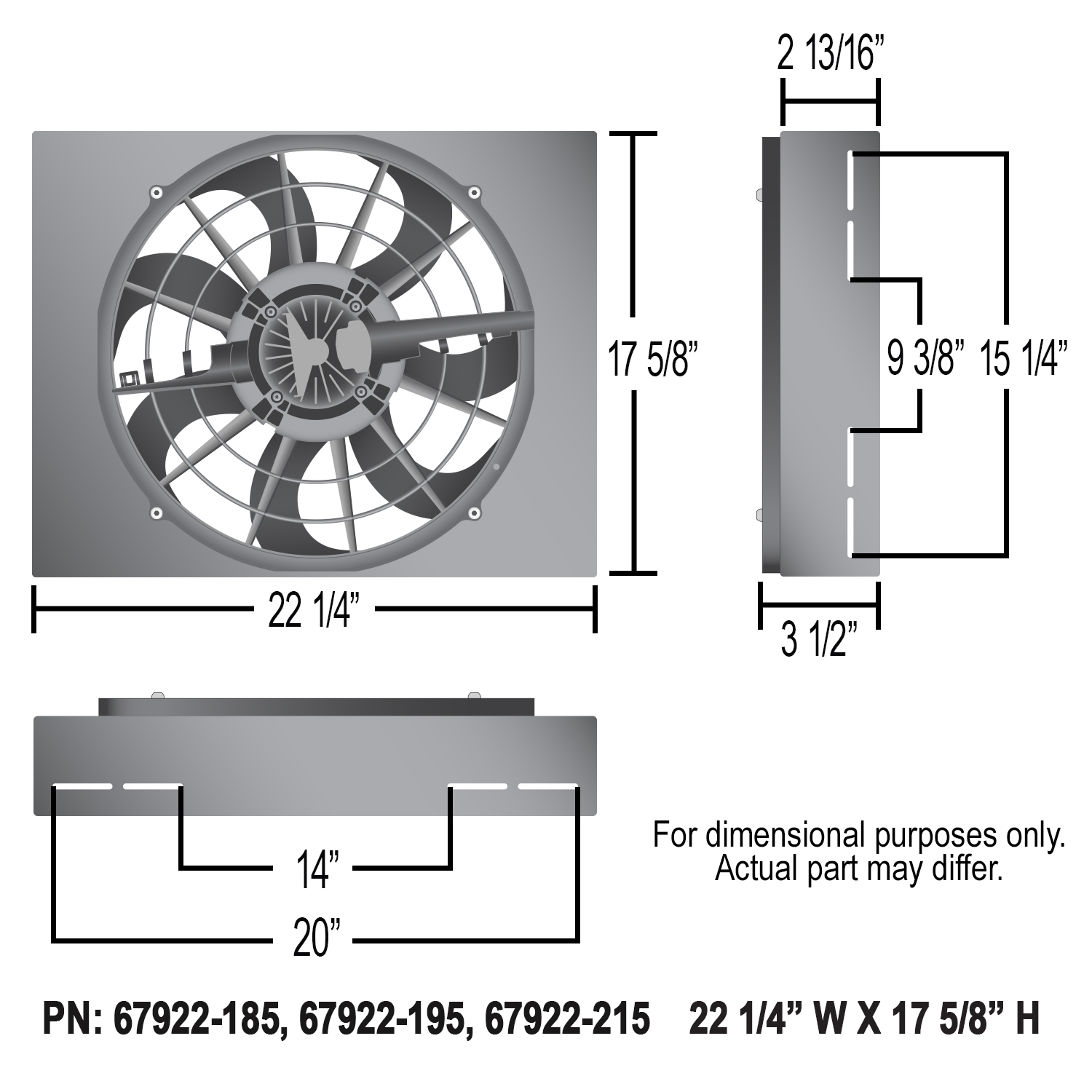

Reference Dimension Drawings for mounting Dimensions
Instruction Sheet PDF: Click Here
- CFM: 2800
- Amp draw: 35
- Shroud Depth: 2 13/16"
- Overall Depth 3 1/2"

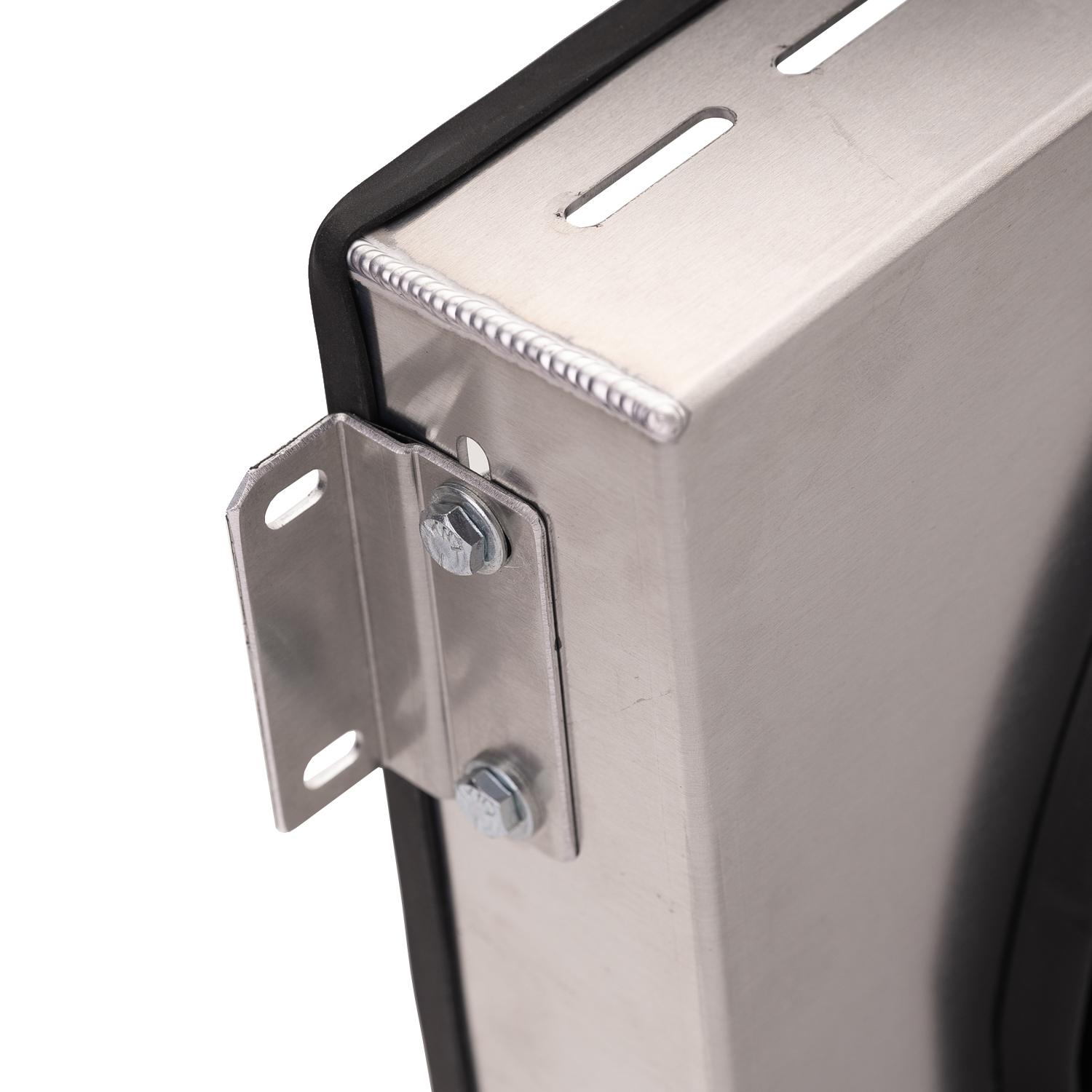

- Mounting: Adjustable
- Designed for primary cooling
- Raw aluminum shroud construction can be polished, painted or anodized

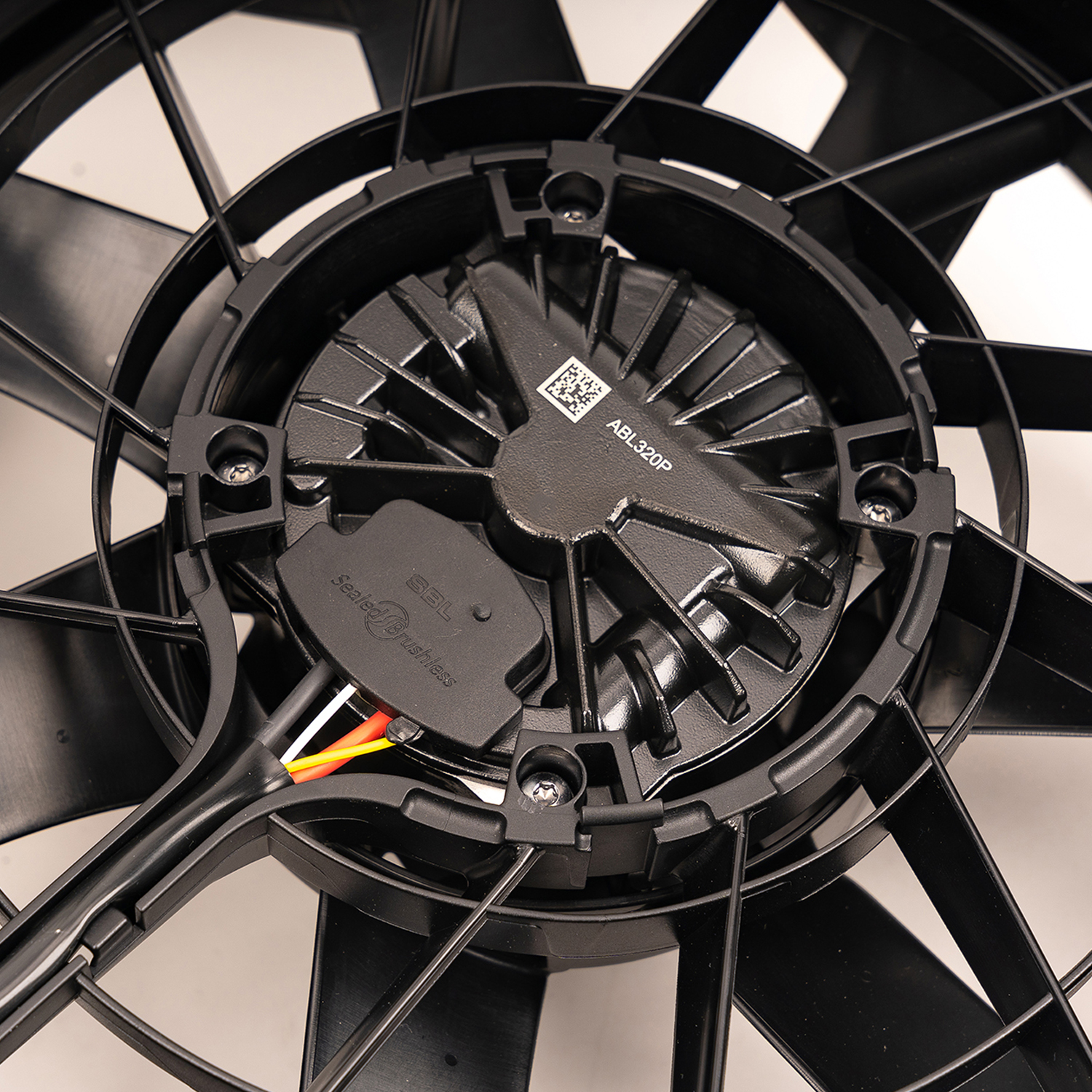

- High Output Brushless motor
- 2800 CFM
- Ultra-quiet skewed blade design
- Multiple mounting options
- Puller (engine side) applications only

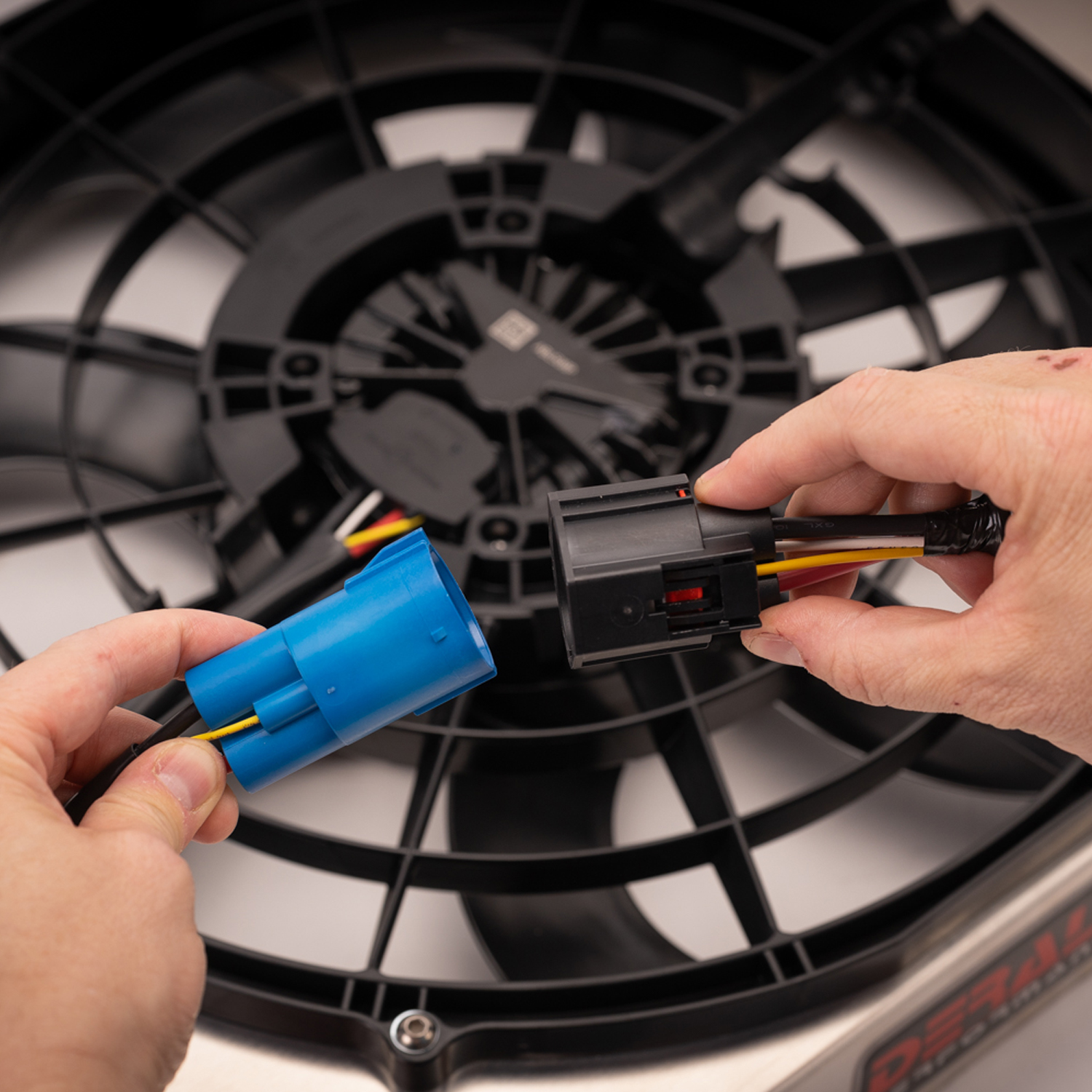

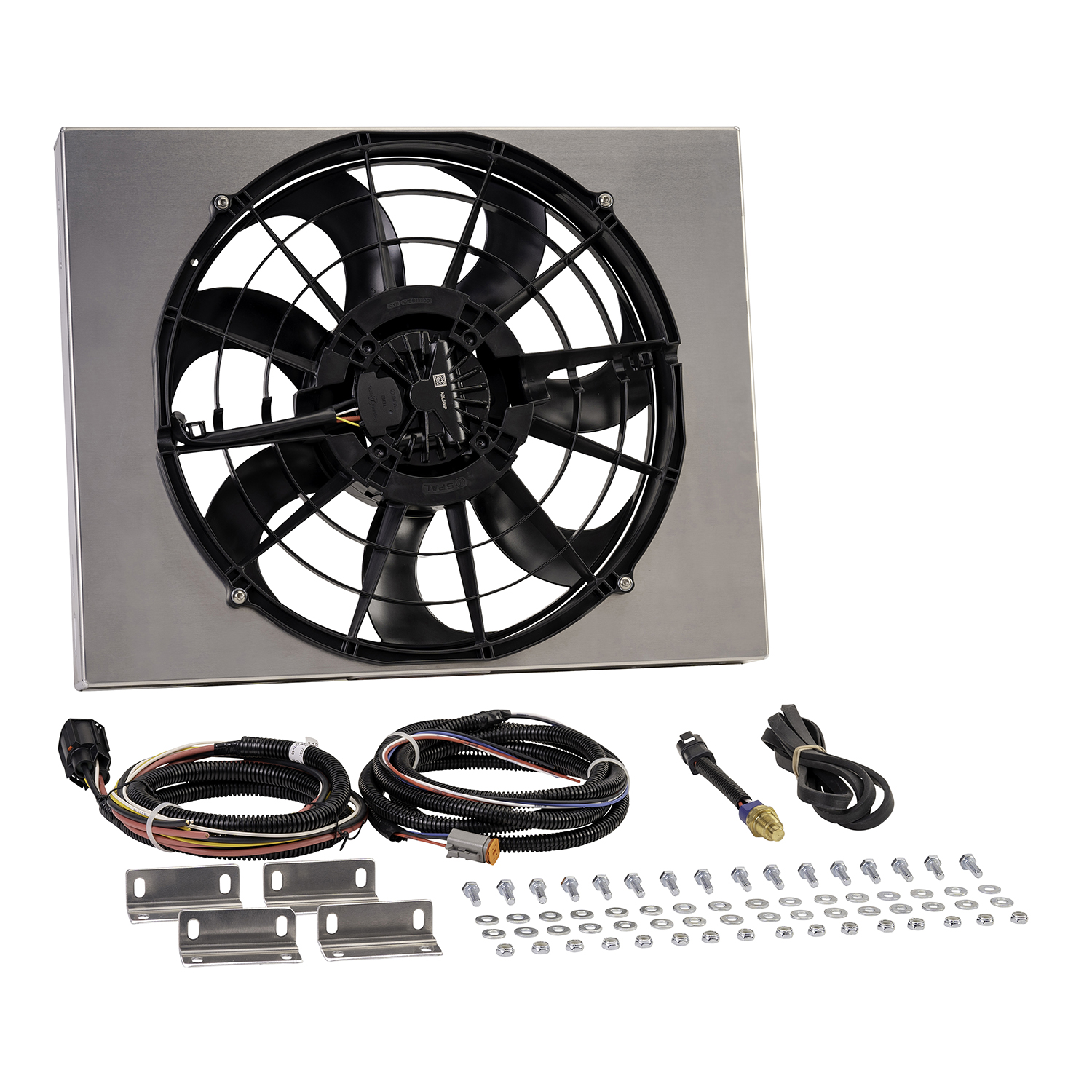

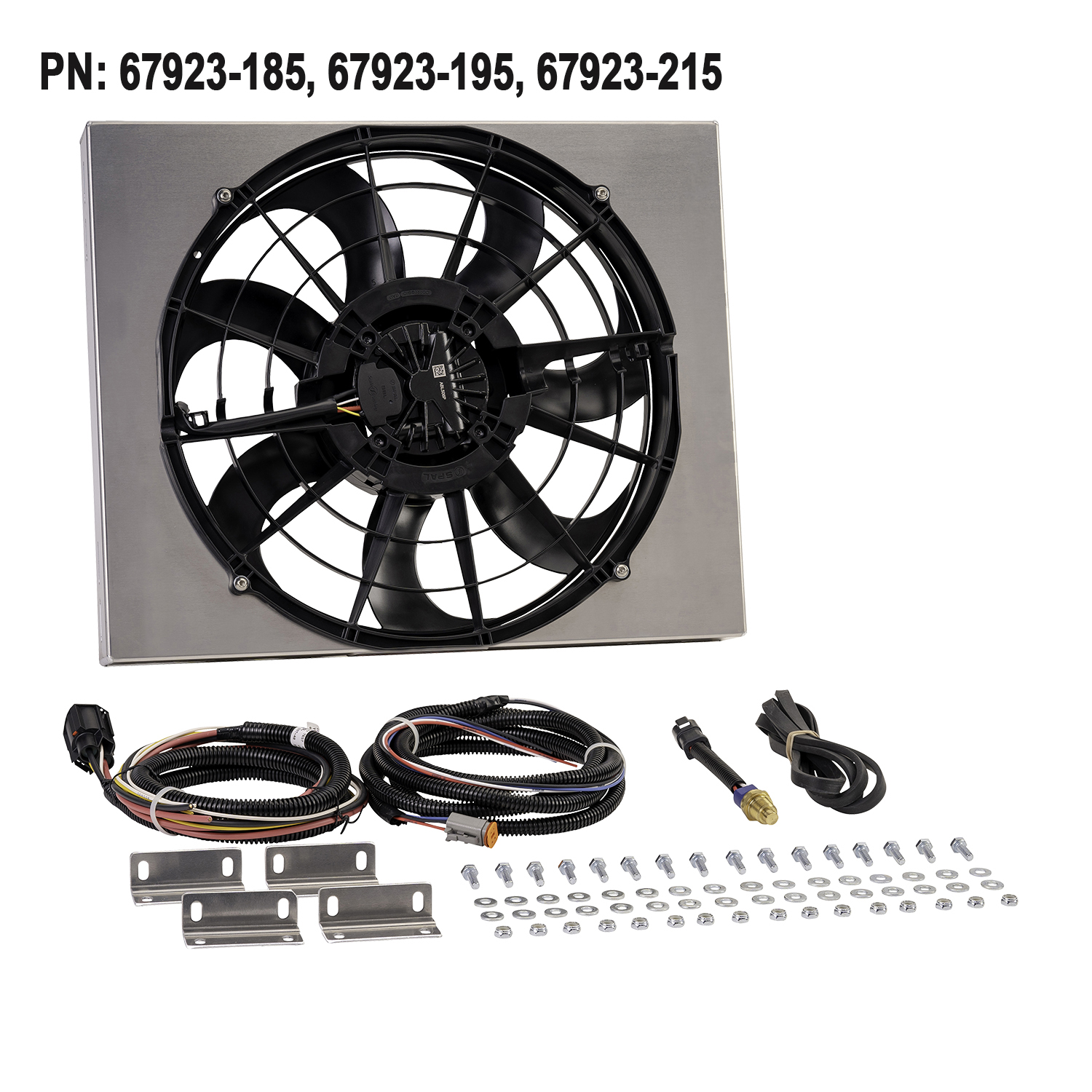

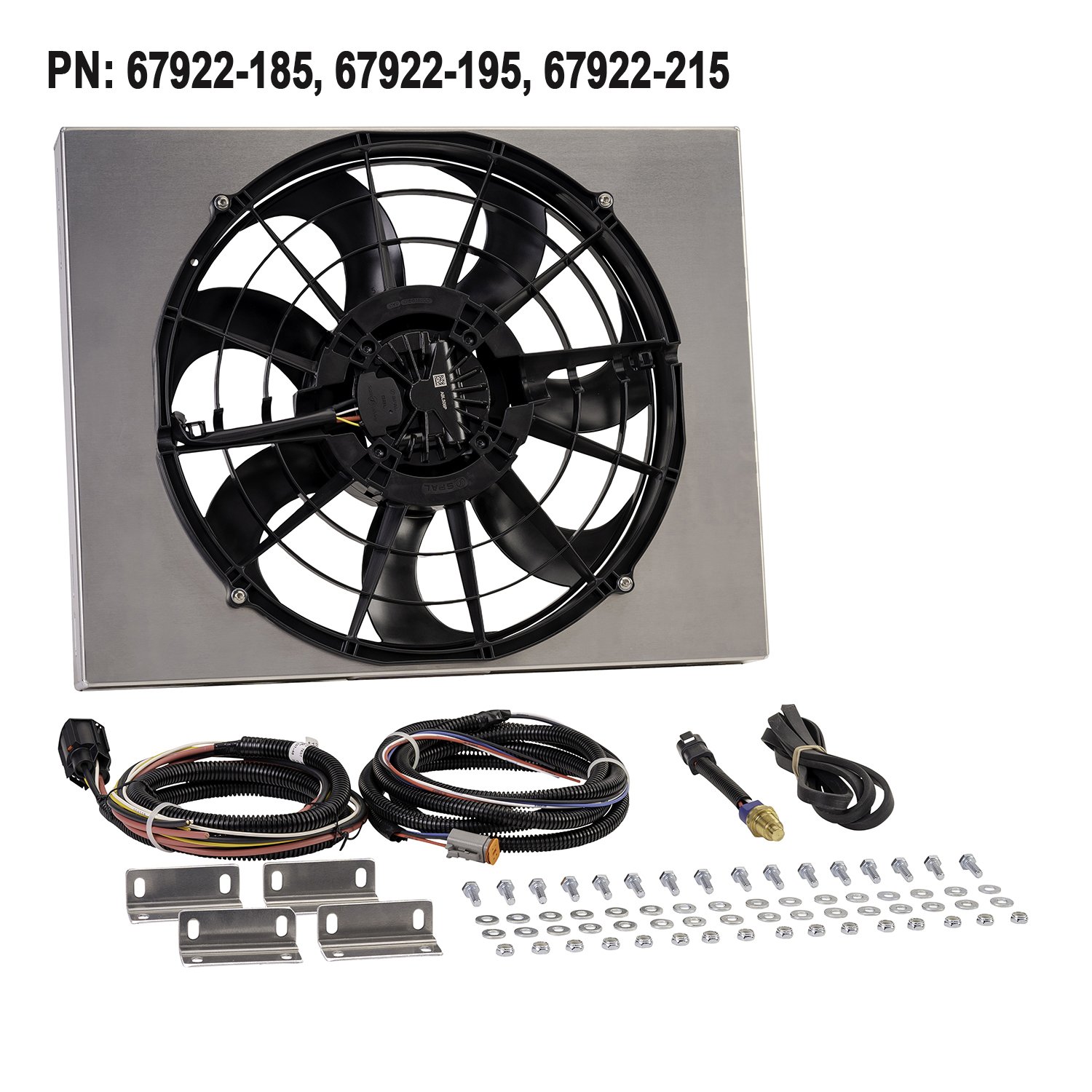

- Kit includes adjustable mounting brackets, complete mounting hardware and wiring harnesses
- Fans are IP6K9K certified
Built In PWM Controller
- PWM Controller Offers Numerous Benefits
- Pulse Width Modulation controls fan(s) speed from 0-100%
- Constantly adjusts fan(s) speed to maintain 185°F, 195°F or 215°F
- Digital solid state controller
- Includes automatic resetting circuit breaker and A/C override circuit built-in
