Part Number 16721

190°F Fan Switch Relay Kit

Description

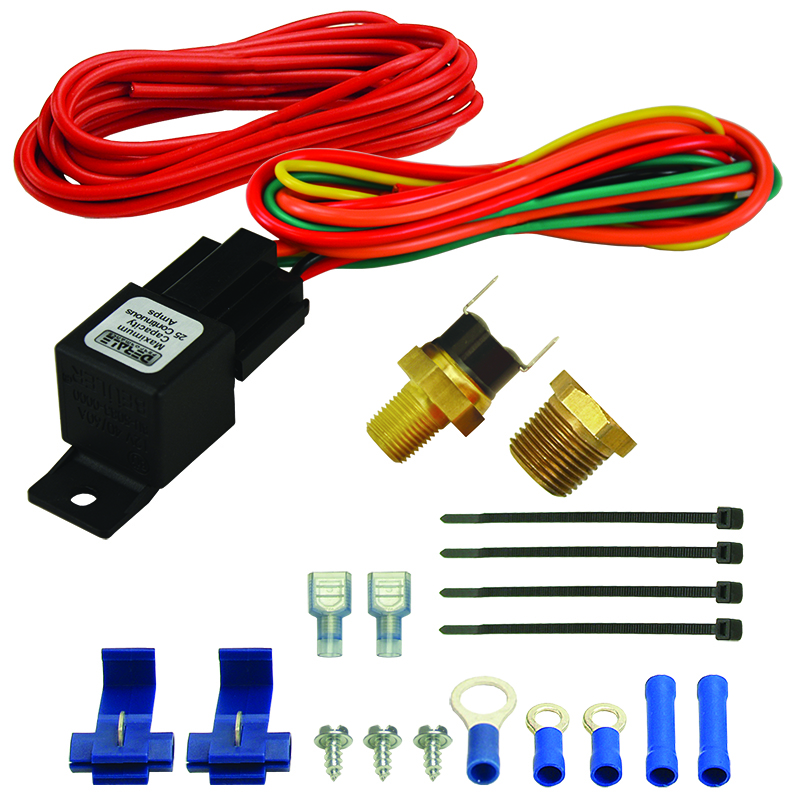

This 190°F-on/175°F-off electric fan control kit includes the 1/8" NPT threaded switch, 1/8" x 3/8" NPT adapter bushing and a relay wire harness to make it an easy installation. Maximum capacity on this kit is 25 amps.

Features
  • Single stage fan control thermostat with 190°F turn-on temperature
  • Turn-off temperature is preset at 175°F

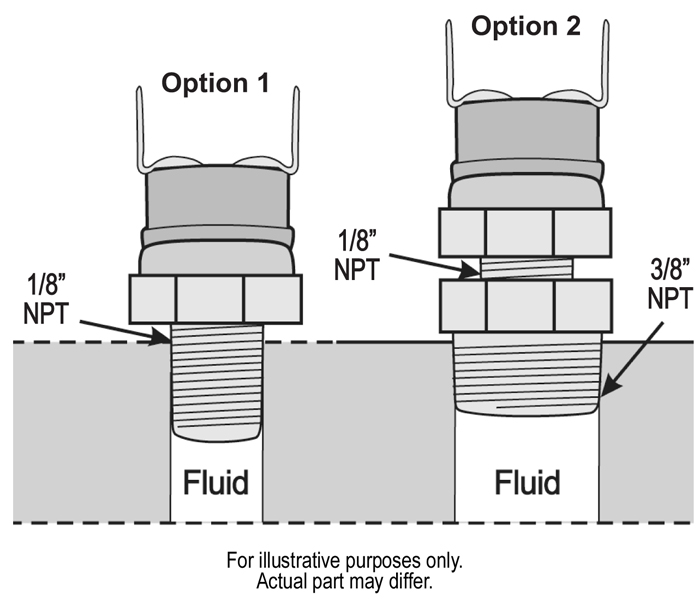

  • Fits into either a 3/8" NPT or 1/8" NPT port
  • 3/8" NPT x 1/8" NPT bushing included
  • 40/60 amp relay wire harness with AC override included
