Part Number 16720

180°F Fan Switch Relay Kit

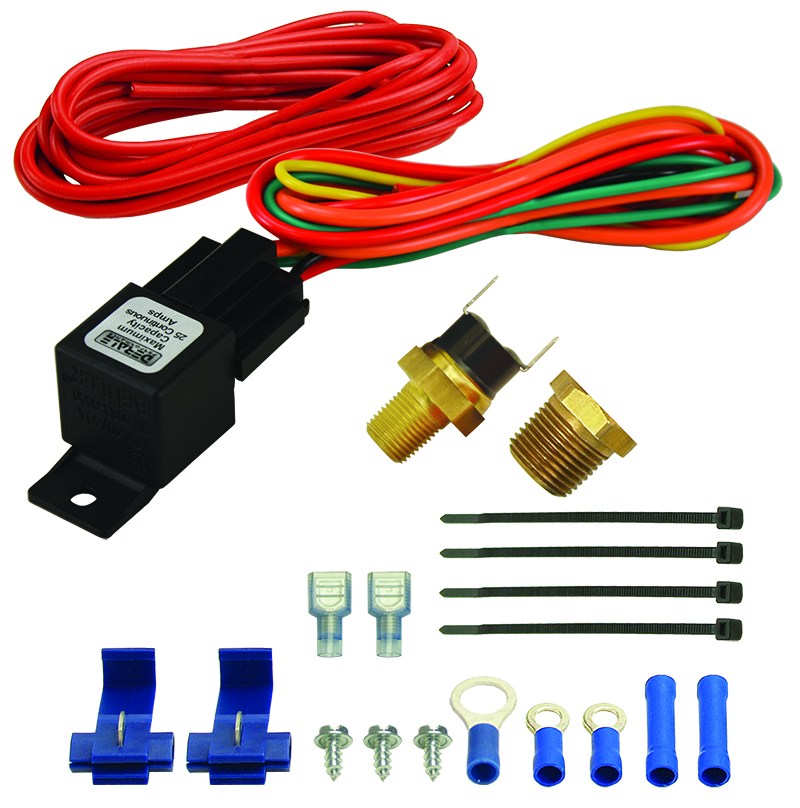

This 180°F-on/165°F-off electric fan controller kit includes the 1/8" NPT threaded switch, 1/8" x 3/8" NPT adapter bushing and a relay wire harness to make it an easy installation. Maximum capacity on this kit is 25 amps.



  • Single stage fan controller with 180°F turn-on temperature
  • Turn-off temperature is preset at 165°F

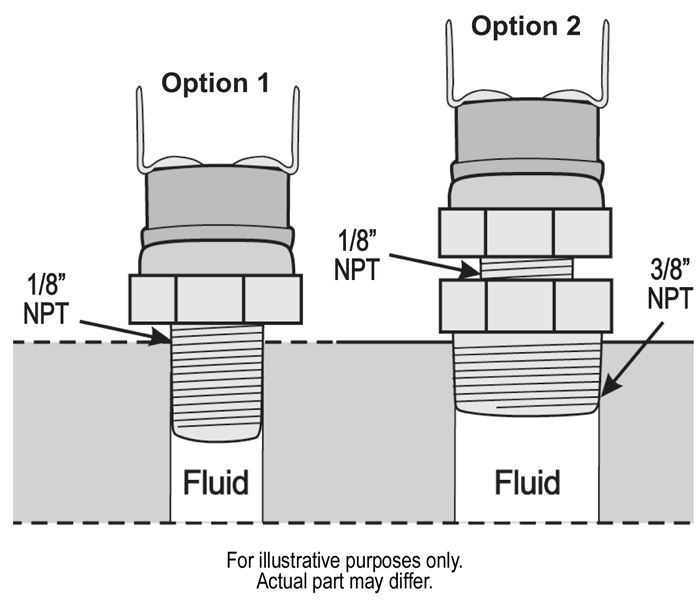

  • Fits into either a 3/8" NPT or 1/8" NPT port
  • 3/8" NPT x 1/8" NPT bushing included
  • 40/60 amp relay wire harness with AC override included
