Part Number 16812
Powerpack - High Output Dual 10'' Electric RAD Fan/Aluminum Shroud Kit - 24-3/4''W x 11-1/2''H x 3-1/4''D
Description

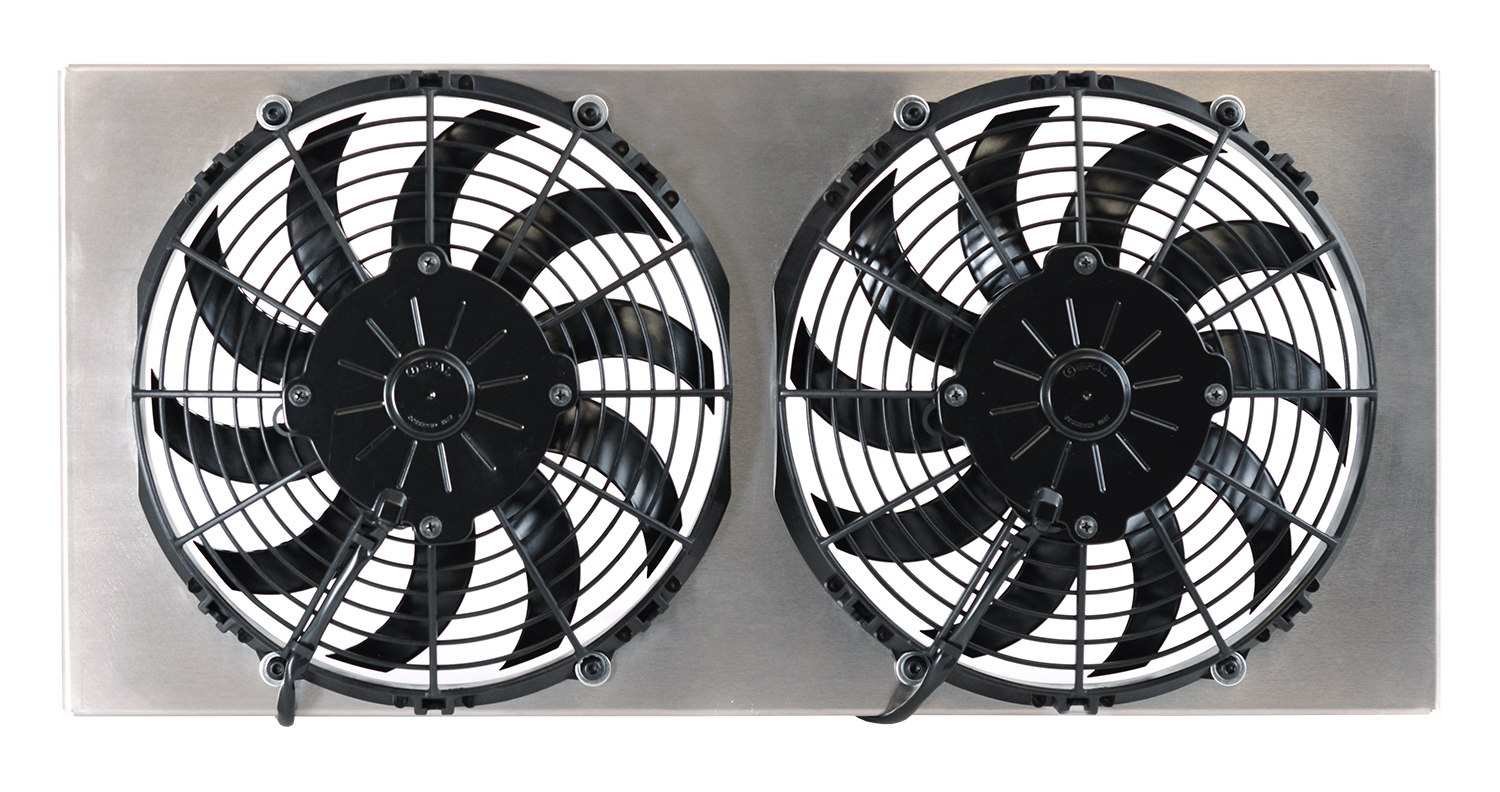

This Dual High Output RAD Fan Powerpack Assembly allows true Dual Fan performance in a package the size of others Single shrouded fans. Featuring an aluminum shroud measuring a tidy 24 3/4" wide by 11 1/2" top to bottom and only 3 1/4" in overall depth to offer an adjustable yet precision fit, it uses two IP-68 certified waterproof/dustproof 10" electric fans to provide a powerful one-two 1650 cfm punch to a hot engine. The natural, non-finished aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it raw to create a truly custom look at a reasonable price. Fan mounting kit included.
Features
- New and improved design
- Sealed waterproof/dustproof IP68 certified motors
- Ultra-low profile design
- Ultra quiet S-blade designs
- Aircraft quality natural satin aluminum finish that can be easily polished, painted or anodized
- Multiple mounting options
- Increased fuel economy
- Increases horsepower

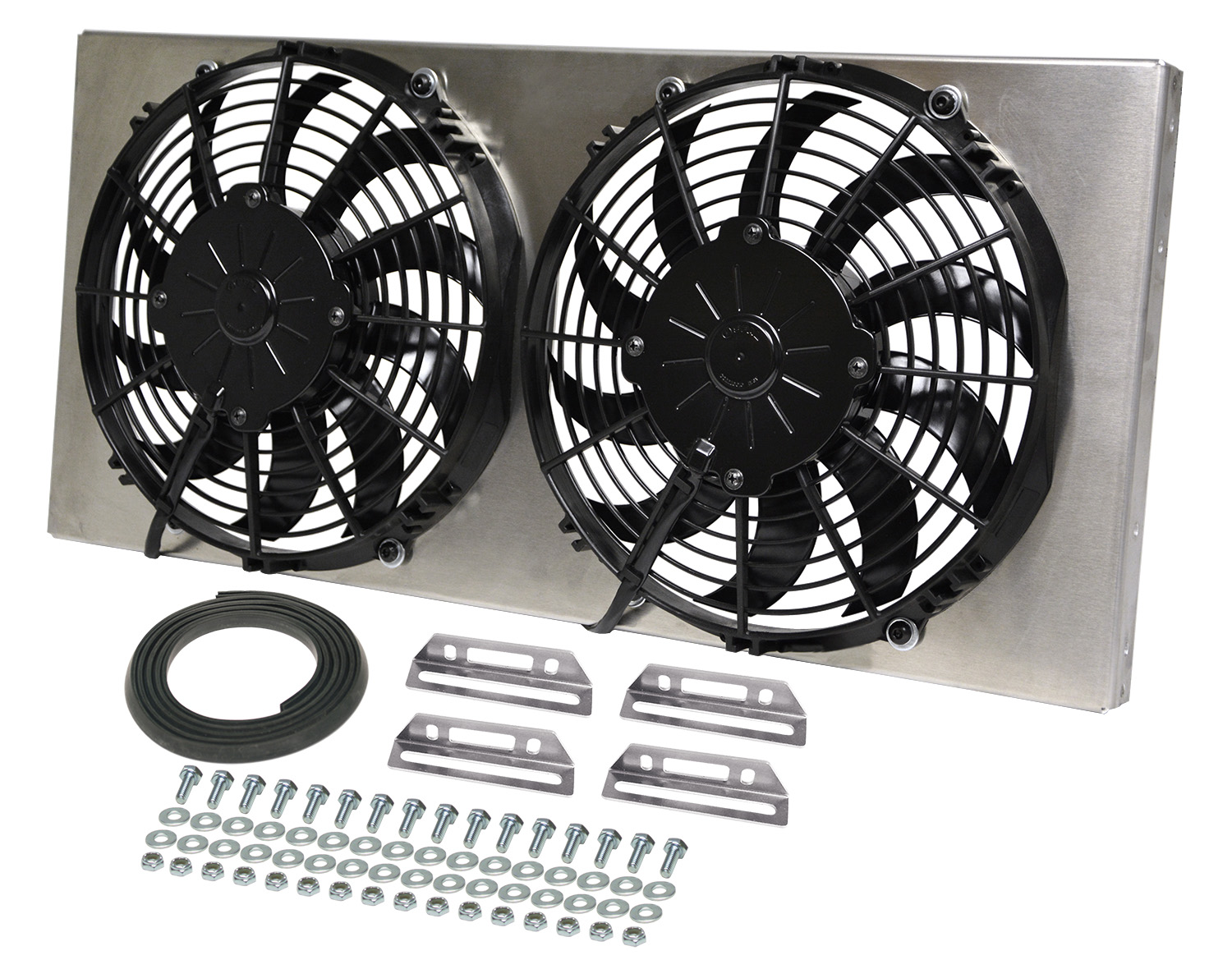

- Mounting hardware included
- Can be used with our optional PWM fan control part number 16795

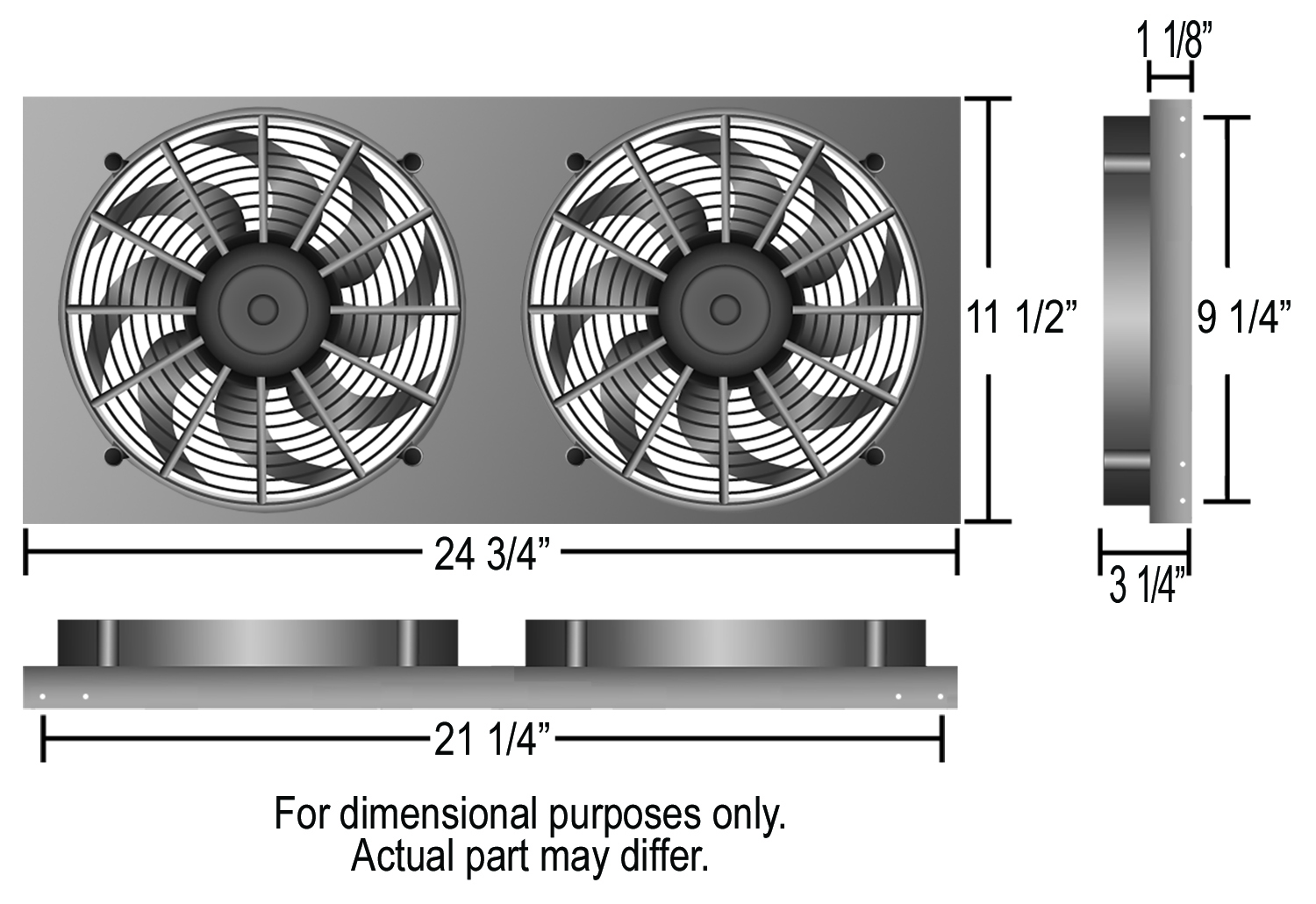

Specifications
- CFM fan 1/2: 825 / 825
- Amp draw fan 1/2: 9.2 / 9.2
- Width: 24-3/4"
- Height: 11-1/2"
- Depth: 1-1/8"

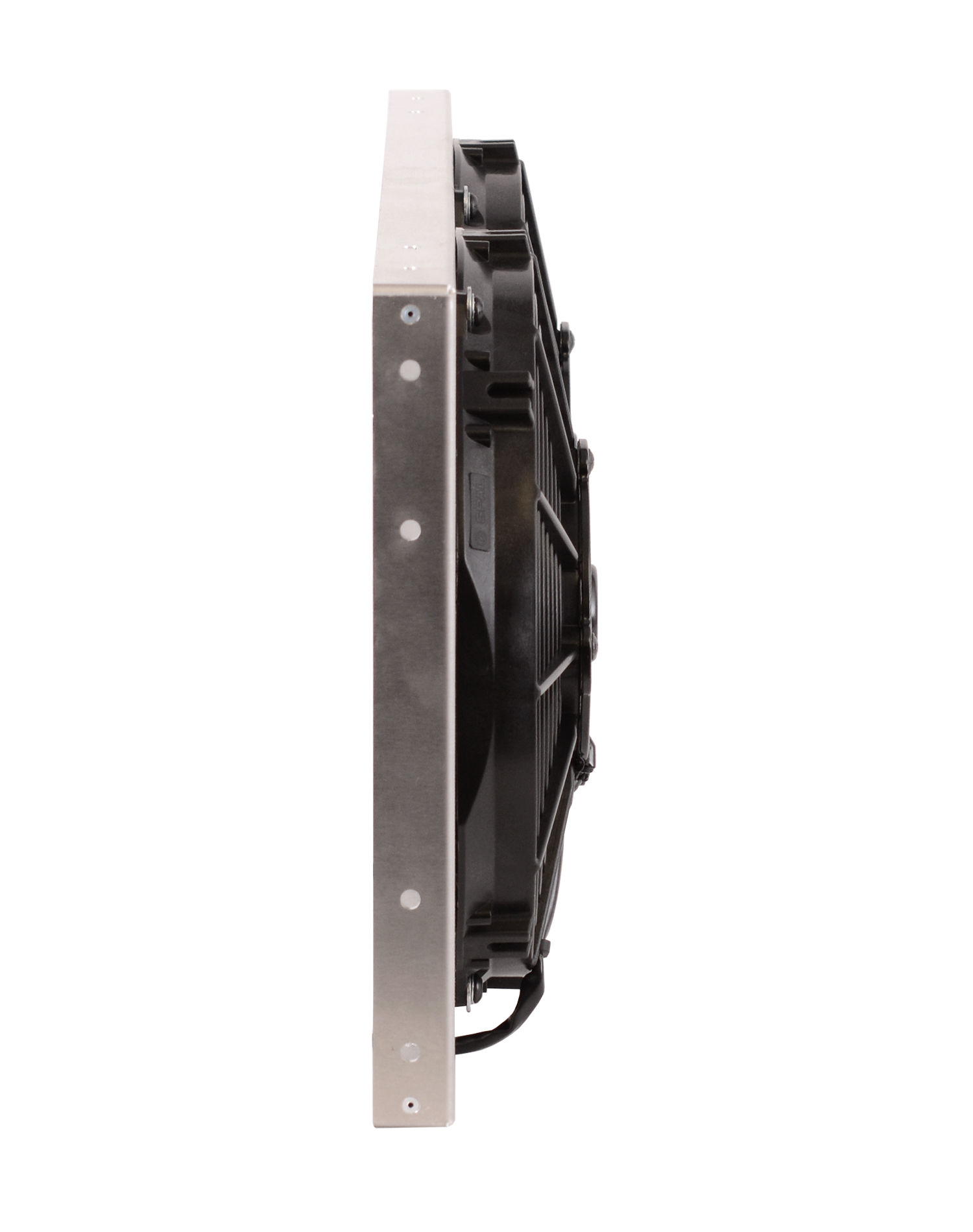

- Overall Depth: 3-1/4"
- Mounting: 9-1/4" x 21-1/4"
