Part Number 16835

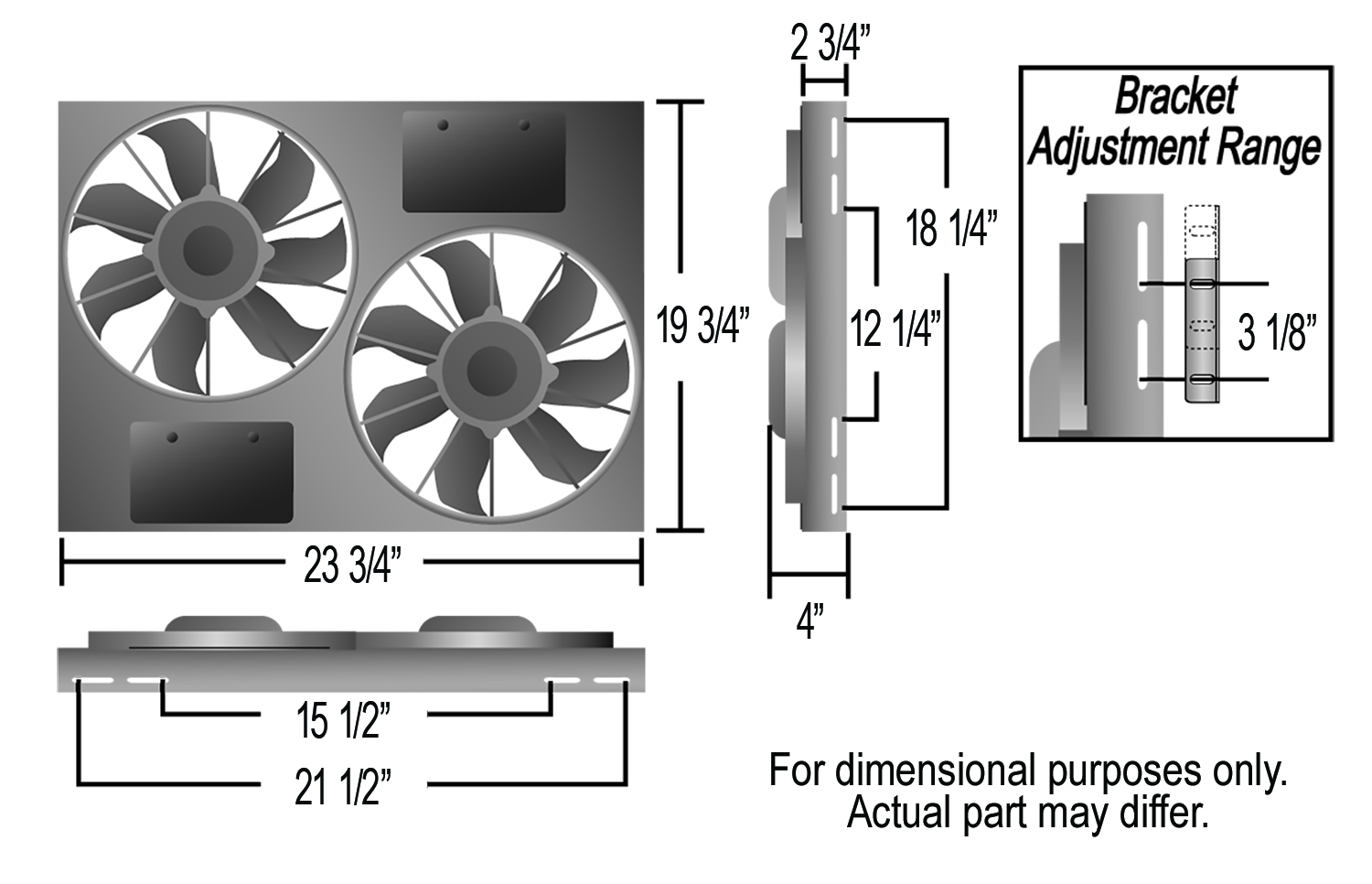

High Output Dual 11'' Electric RAD Fan/Aluminum Shroud Kit - 23-3/4''W x 19-3/4''H x 4-1/2''D


This Dual High Output RAD Fan Assembly allows true Dual Fan performance in a package the size of others Single shrouded fans. Featuring an aluminum shroud measuring a tidy 23 3/4" wide by 19 3/4" top to bottom and only 4 1/2" in overall depth to offer an adjustable yet precision fit, it uses two IP-68 certified waterproof/dustproof 11" electric fans to provide a powerful one-two 3750 cfm punch to a hot engine. The natural, non-finished aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it raw to create a truly custom look at a reasonable price.

  • Designed for primary cooling
  • Raw aluminum shroud construction with stator flow directors can be polished, painted or anodized
  • High output IP-68 certified waterproof/dustproof motors
  • 3750 CFM
  • Ultra-quiet patented skewed blade design
  • Multiple mounting options
  • Puller (engine side) applications only

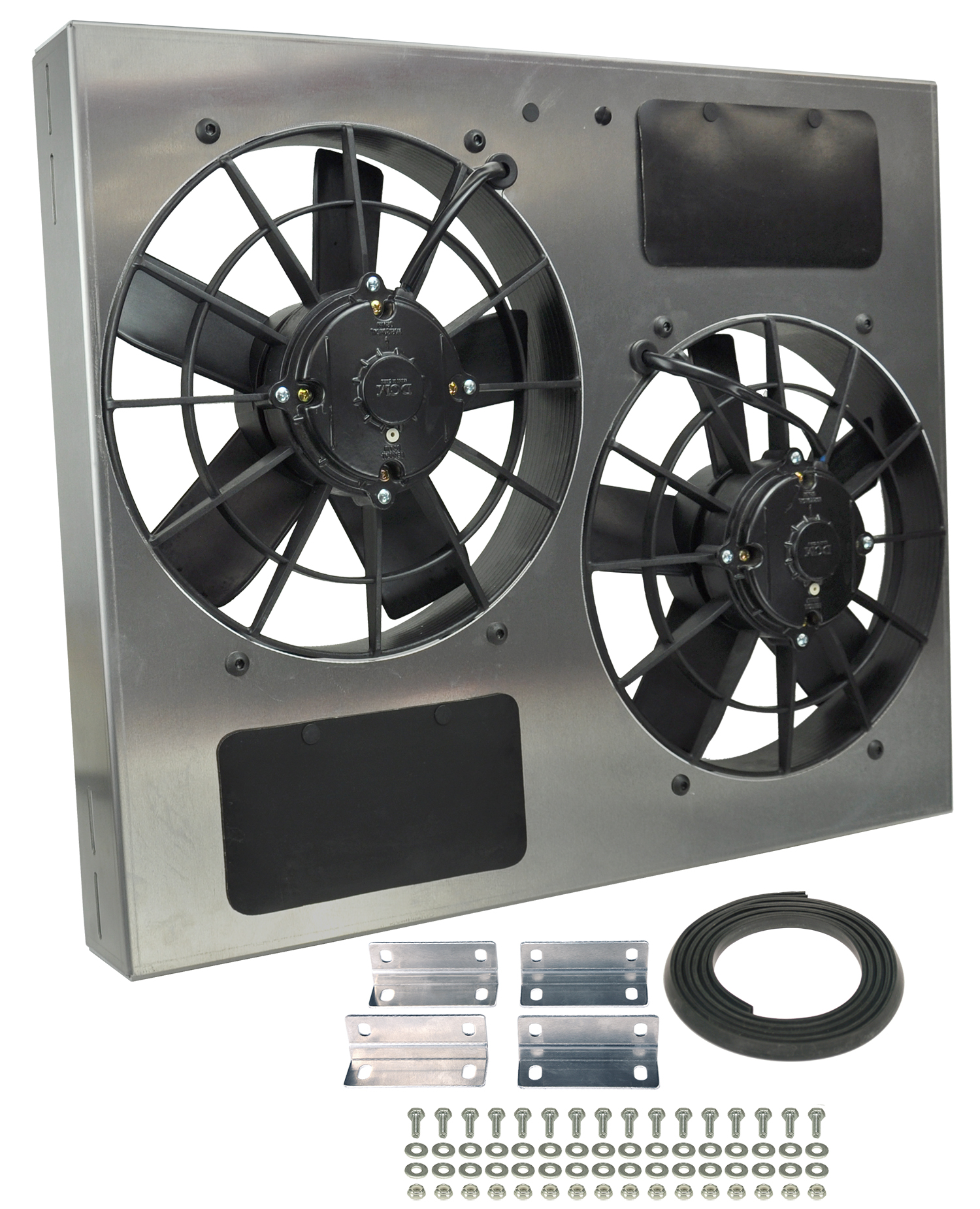

  • Kit includes adjustable mounting brackets and complete mounting hardware
  • CFM fan 1/2: 1875/1875
  • Amp draw fan 1/2: 18.7/18.7
  • Width: 23 3/4"
  • Height: 19 3/4"
  • Depth: 2-3/4"
  • Overall Depth: 4-1/2"
  • Mounting: Adjustable
