Part Number 16850

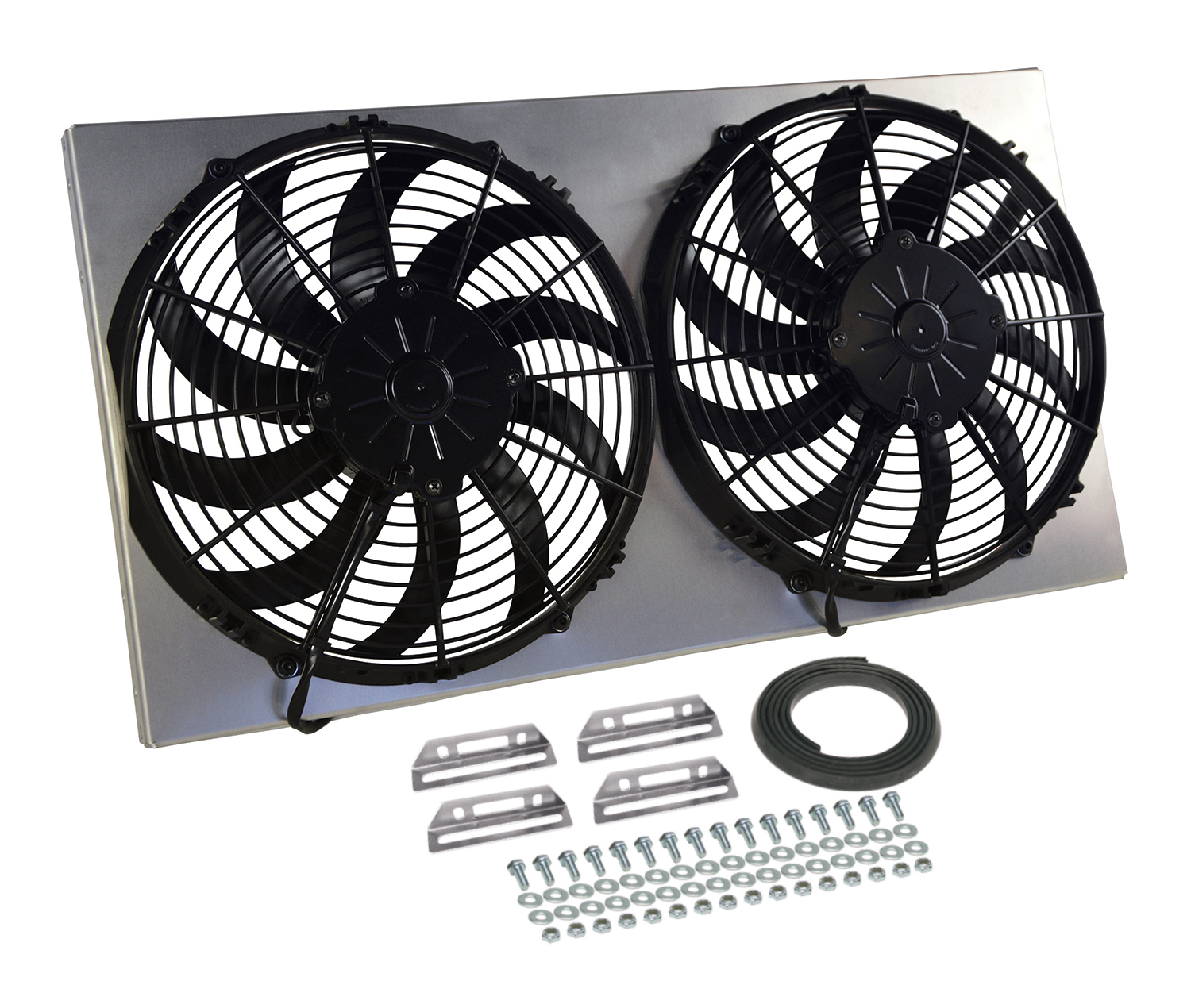

Powerpack - High Output Dual 12'' Electric RAD Fan/Aluminum Shroud Kit - 26''W x 14''H x 3-3/4''D
Description

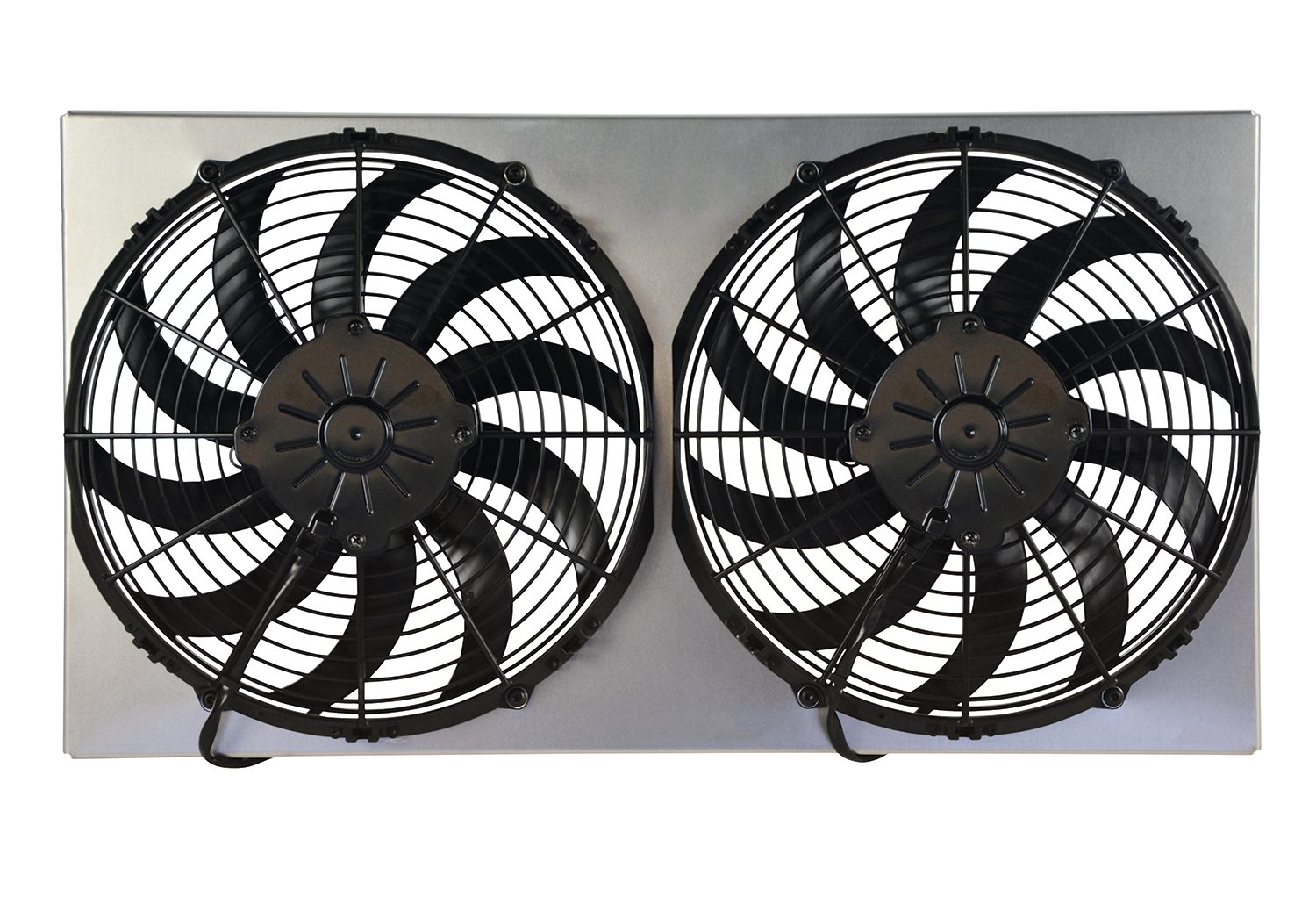

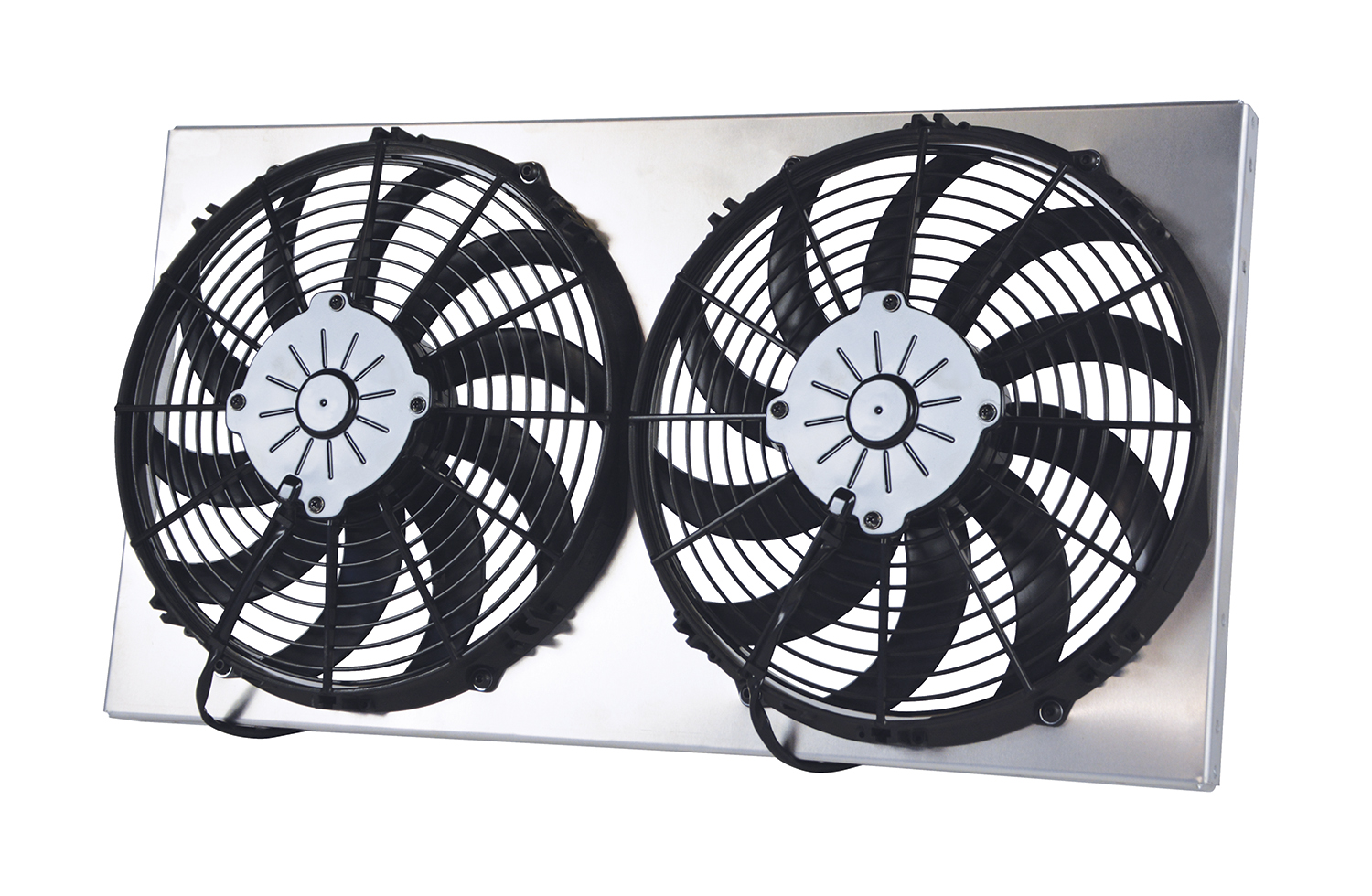

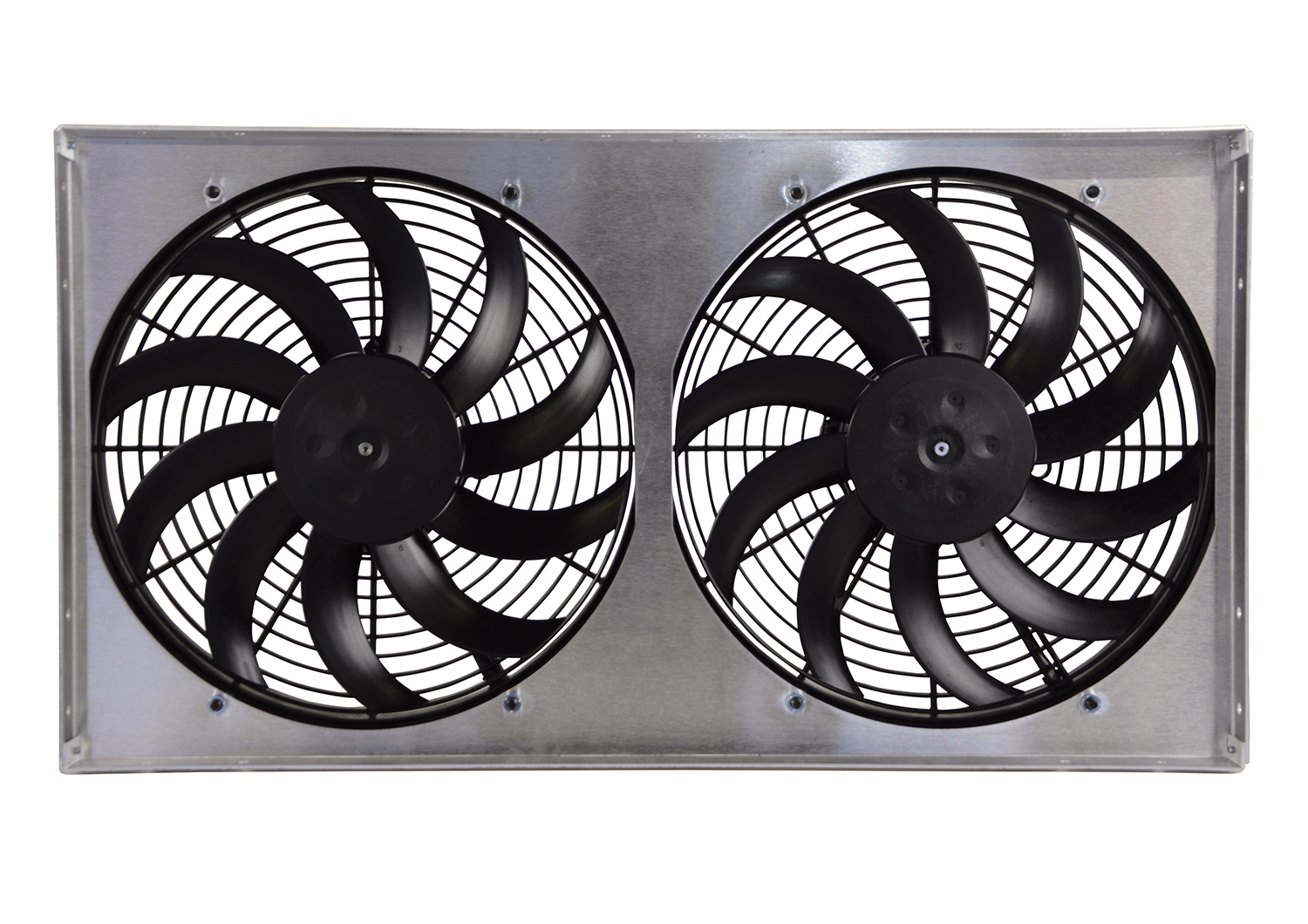

This Dual High Output RAD Fan Powerpack Assembly is part of the HO Aluminum Shrouded Fan Series that is designed with the application in mind. Based on some of the most common radiator core sizes sold today, this unit features an aluminum shroud measuring 26" wide by 14" top to bottom and is only 3-3/4" in overall depth to offer an adjustable yet precision fit. The natural, non-finished aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it raw to create a truly custom look for an affordable price. The dual 12" high output fans are some of the best in our line-up offering 2675 combined CFM to create the most airflow possible in a compact size.
Features
- Designed for primary cooling
- Raw aluminum shroud construction with stator flow directors can be polished, painted or anodized
- 2-High output 12" IP68 water/dust proof electric fans
- slimline series
- 2675 combined CFM
- Ultra-quiet patented skewed blade design
- Multiple mounting options
- Puller (engine side) applications only

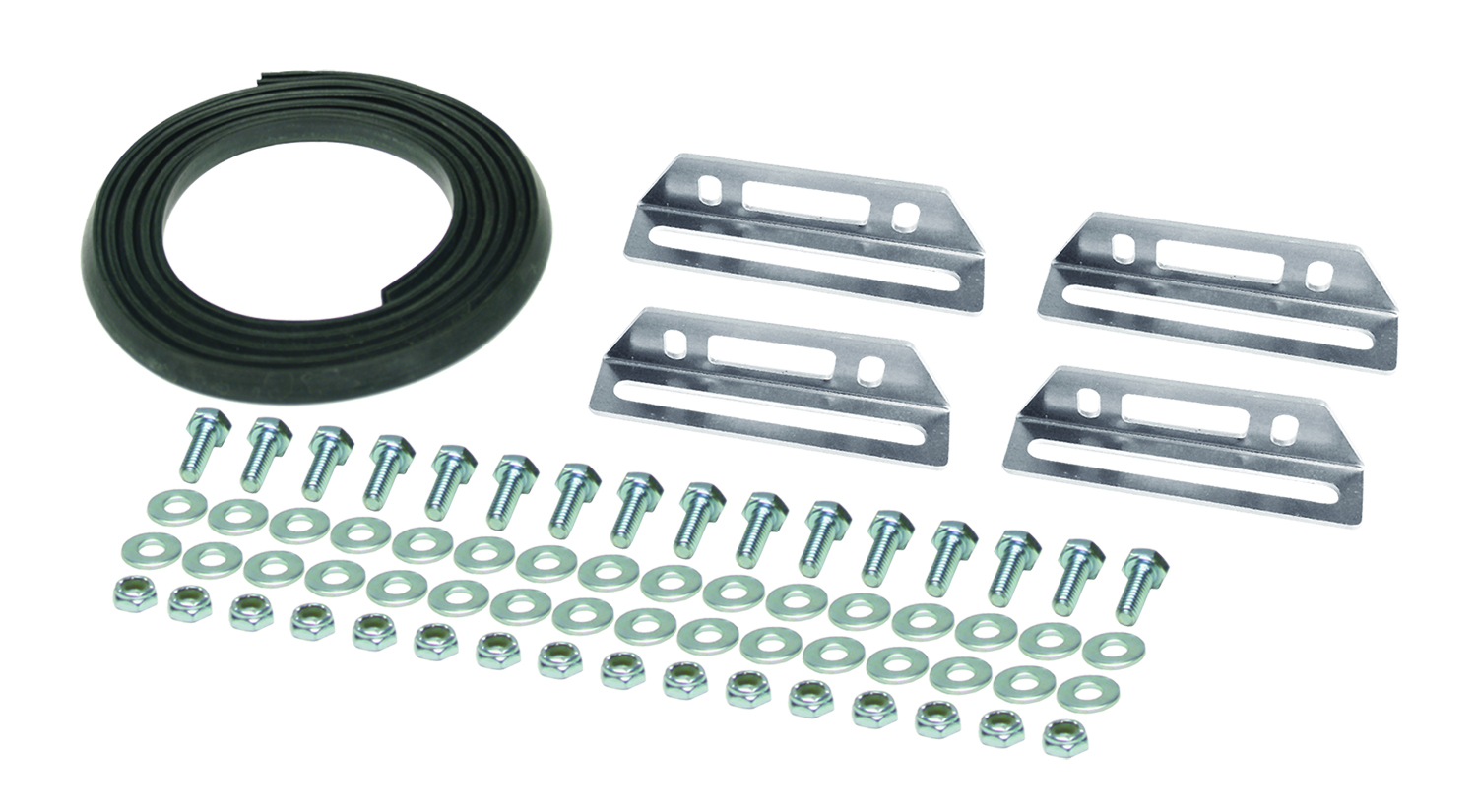

- Kit includes adjustable mounting brackets and complete mounting hardware
Specifications
- CFM fan 1/2: 1337.5/1337.5
- Amp draw fan 1/2: 14.2/14.2
- Width: 26"
- Height: 14"
- Depth: 1-1/8"
- Overall Depth 3-3/4"
- Mounting: Adjustable
