Part Number 66836

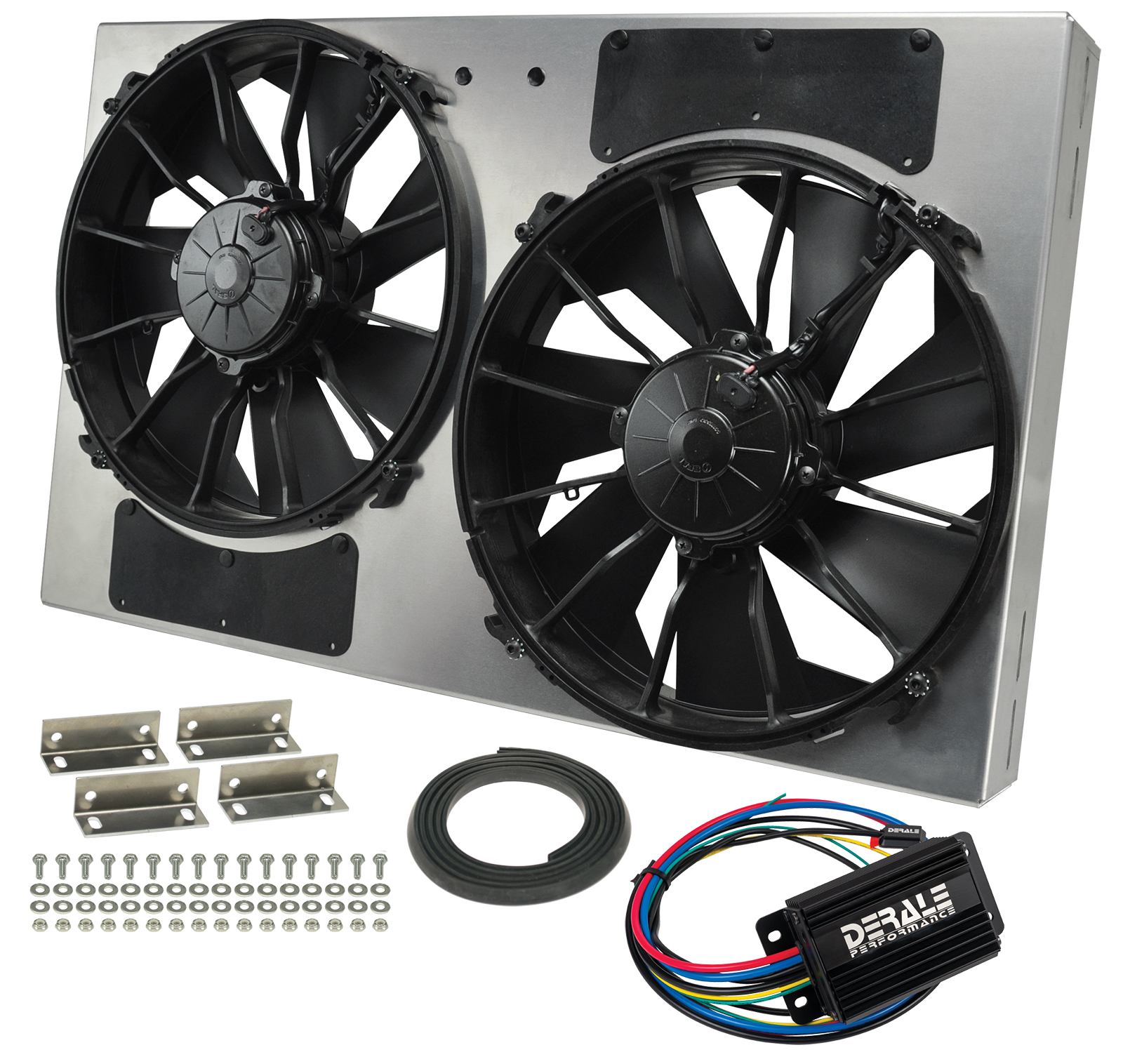

Powerpack - High Output Dual 12'' Electric RAD Fan/Aluminum Shroud with PWM Controller - 26-3/8''W x 16''H x 4''D

Description

Get complete control of your engine temperature! Derale Performance has combined their high-performing shrouded powerpacks with the ultimate fan controller.  Using high output electric fans incorporated into an engineered shroud, this powerpack can conquer even the most difficult cooling conditions.  This unit features an aluminum shroud measuring 26 3/8" wide by 16" top to bottom and is only 4" in overall depth to offer an adjustable yet precision fit. The natural, non-finished aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it raw to create a truly custom look for an affordable price. The dual 12" high output electric fans are some of the most proven and reliable fans in our line-up and are specifically designed to thrive on thick, tight fin radiator cores. Offering a total of 4000 CFM, this dual electric fan assembly generates the most real-world airflow in the smallest package on the market.

Now add the digital PWM Fan Controller with built-in soft start technology.  The controller utilizes Pulse Width Modulation to constantly adjust electric fan speeds from 0-100%, maintaining the optimal engine operating temperature. No more reacting to the engine temps, you can control it! This allows electric fans to operate at the percentage needed, instead of 100% all the time, therefore increasing component life and eliminating amperage spikes.

Features
  • Designed for primary cooling
  • Raw aluminum shroud construction can be polished, painted or anodized
  • High output 300-watt motors
  • 4000 CFM
  • Ultra-quiet patented skewed blade design
  • Multiple mounting options
  • Puller (engine side) applications only
  • Air pressure relief vents
  • Kit includes adjustable mounting brackets and complete mounting hardware

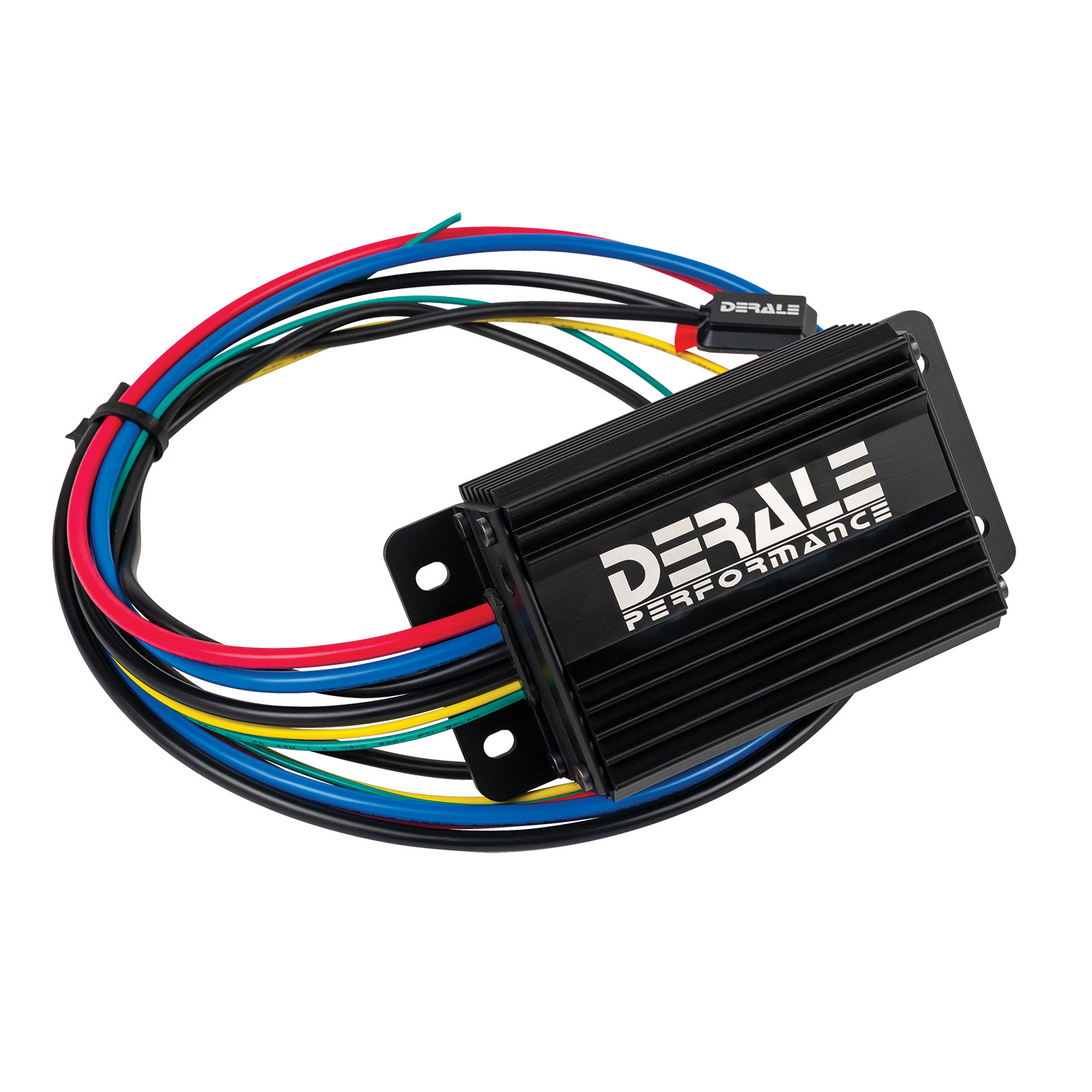

PWM Controller Features

  • Pulse Width Modulation controls fan(s) speed from 0-100%
  • Constantly adjusts fans speed to maintain the desired temperature
  • Controls multiple electric fans up to 70 amp capacity
  • Includes automatic resetting circuit breaker
  • Air Conditioning override circuit built-in
  • Digital solid-state controller
  • 20-second shutdown timer
  • 6061 aluminum anodized housing

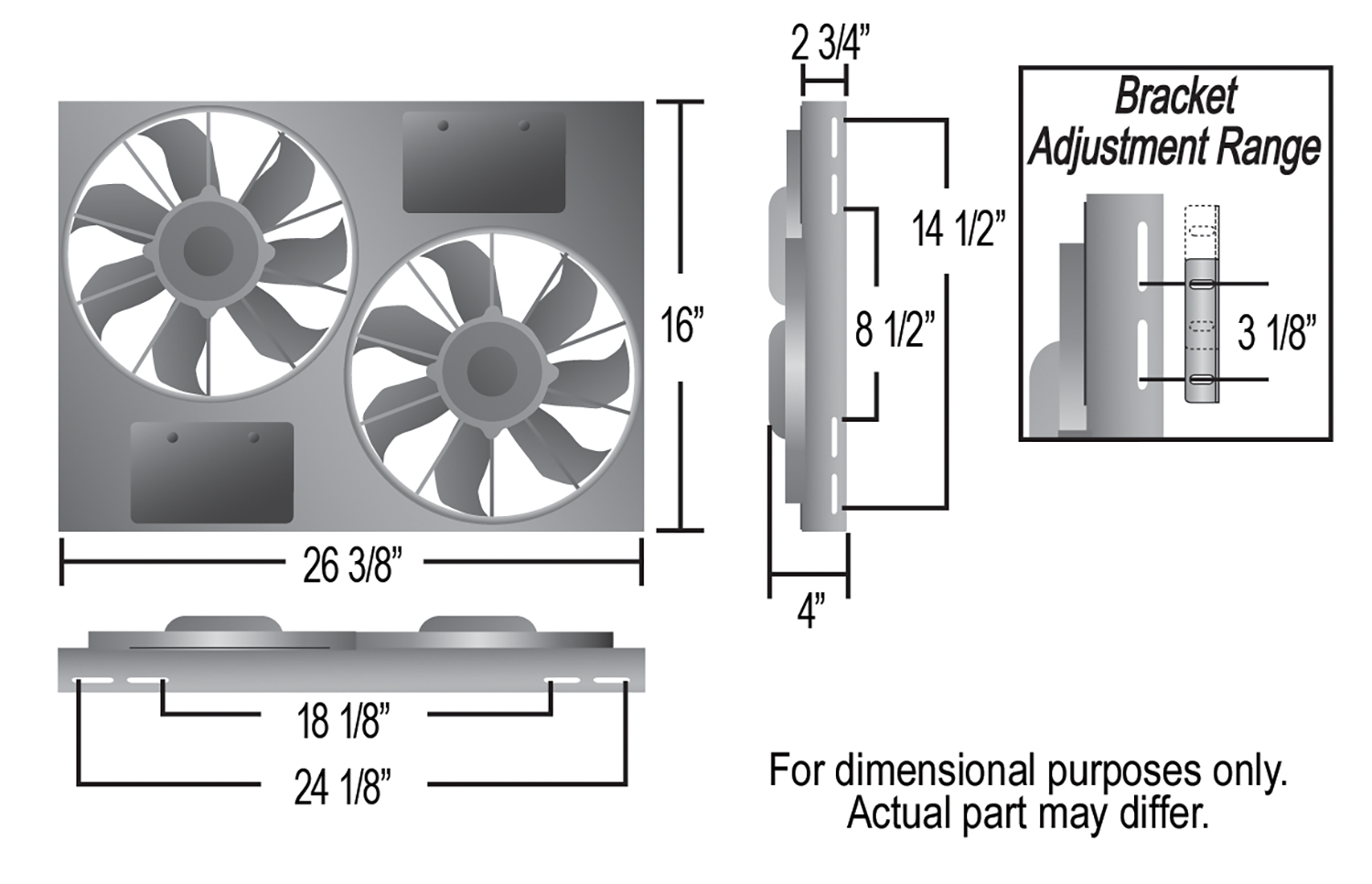

Specifications
  • CFM fan 1/2: 2000/2000
  • Amp draw fan 1/2: 24.8/24.8
  • Shroud Height: 16"
  • Width: 26-3/8"
  • Shroud Depth: 2-3/4"
  • Overall Depth 4"
  • Mounting: Adjustable



PWM Controller Specifications

  • Amp Rating: 70 amp

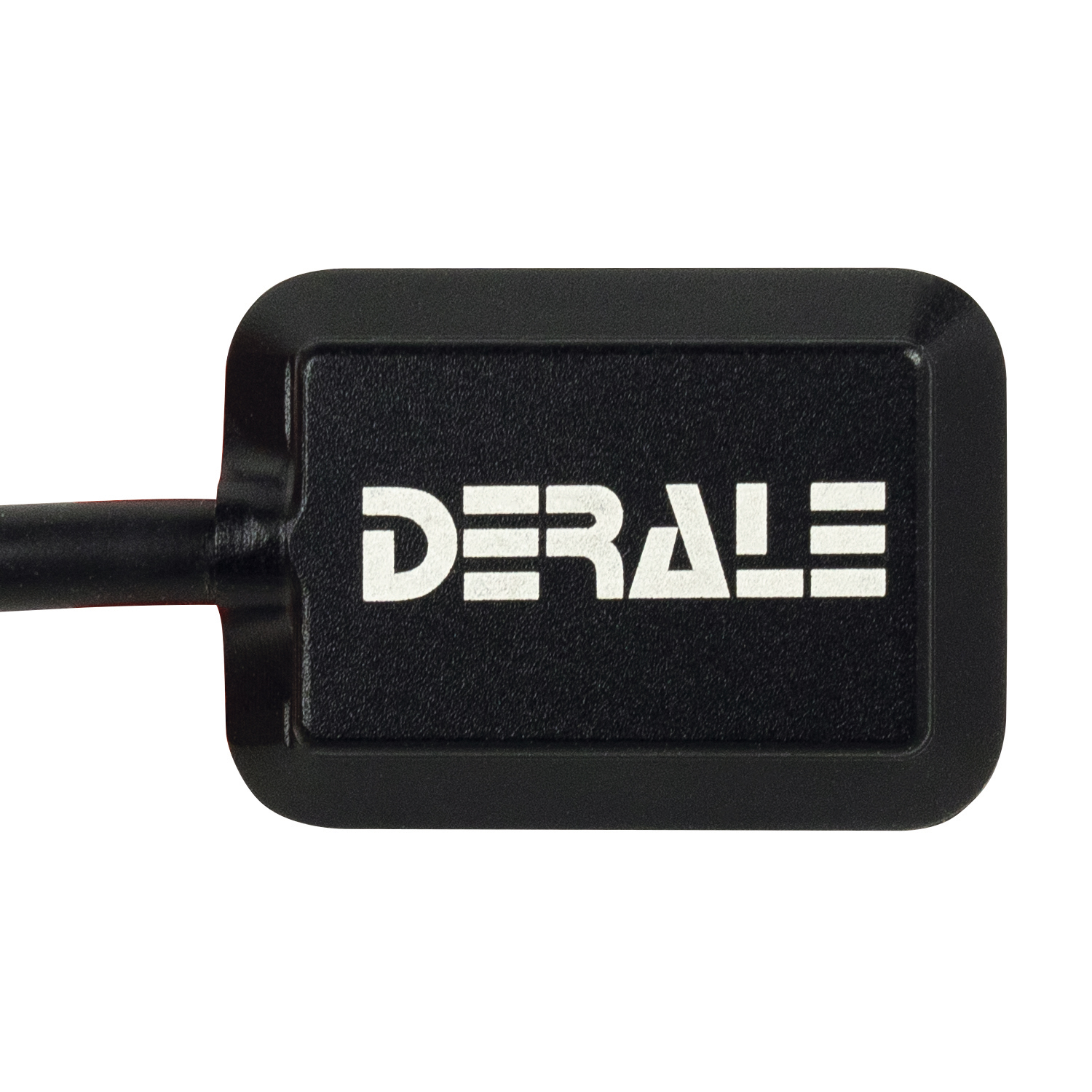

  • Sensor: Part No. 16757
  • PWM Controller: Part No. 16797
  • Fan: Part No. 16917
  • Flaps: Rubber
