Part Number 16820

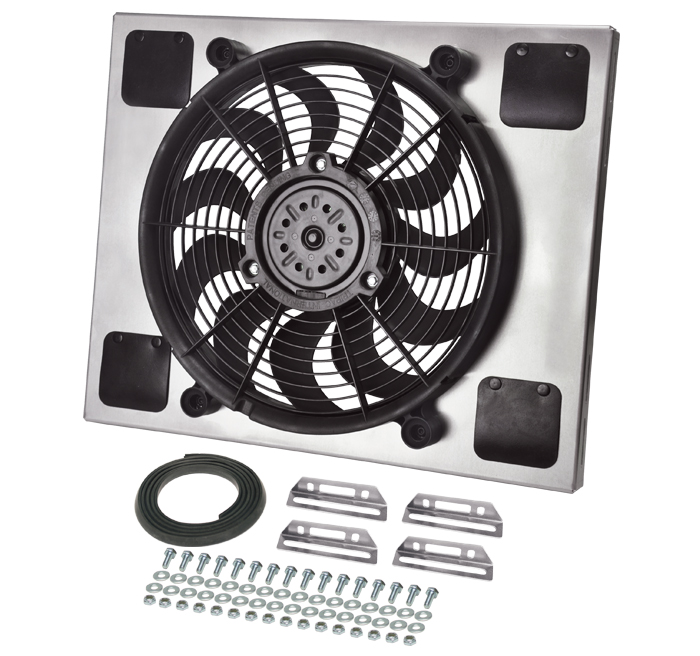

High Output Single 14'' Electric RAD Fan/Aluminum Shroud Kit - 20''W x 16 3/8''H x 2 3/4''D


This High Output Single RAD Fan is part of the HO Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 20" wide by 16 3/8" top to bottom and only 2 3/4" thick to offer a precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 14" high output two speed fan is one of the best in our line-up offering 2100 CFM when on high to create the most airflow possible in a compact size.

  • Designed for primary cooling
  • Raw aluminum shroud construction can be polished, painted or anodized
  • High Output 265 watt 2-speed motor
  • 2100 CFM
  • Ultra-quiet patented skewed blade design
  • Puller (engine side) applications only
  • Kit includes mounting brackets and complete mounting hardware
  • CFM high/low: 2100/1500
  • Amp draw high/low: 22/16.2

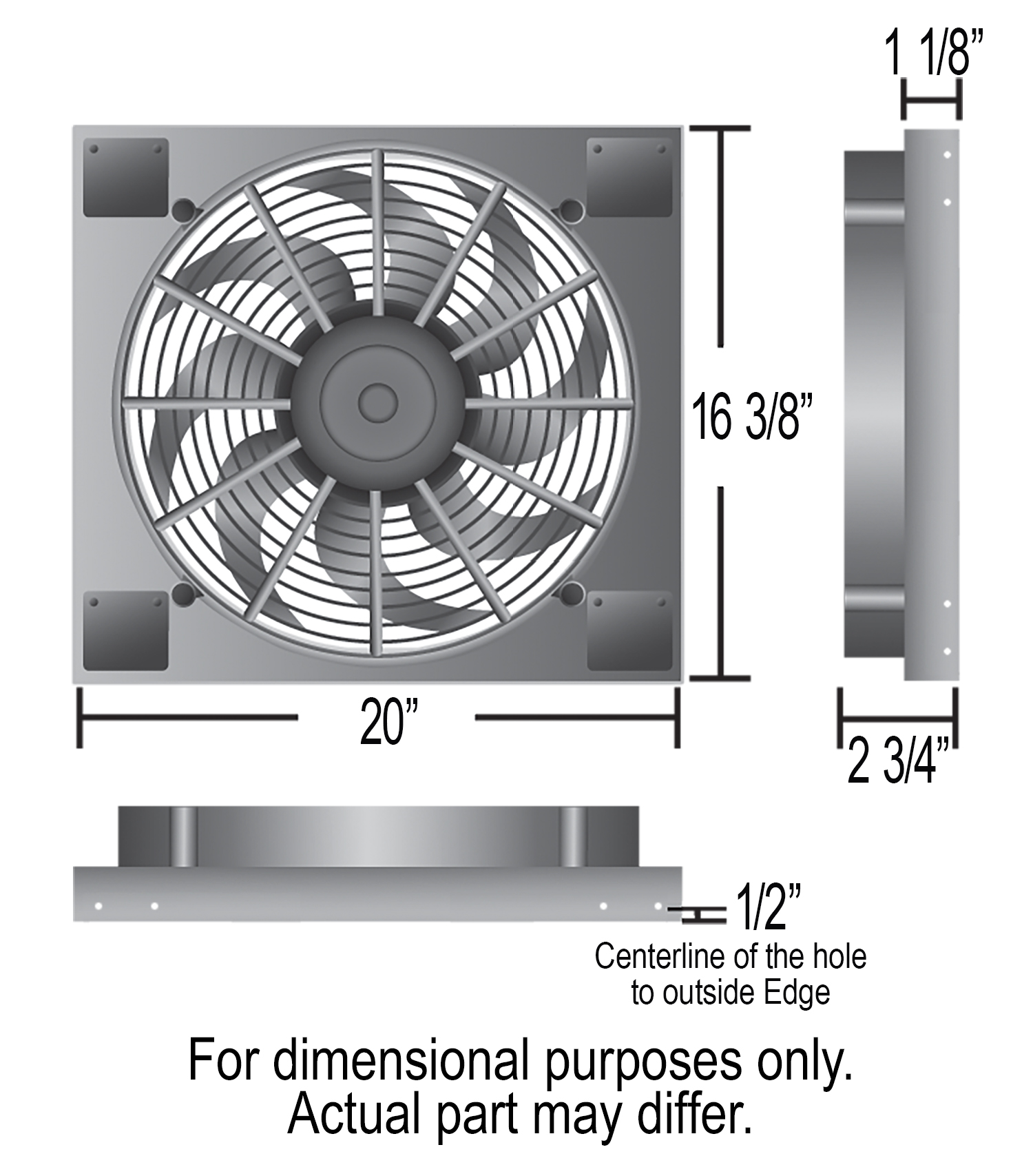

  • Width:20"
  • Height: 16-3/8"
  • Shroud Depth: 1 1/8"
  • Overall depth: 2 3/4"
  • Mounting Hole(s) center to outside edge: 1/2"
