Part Number 16822

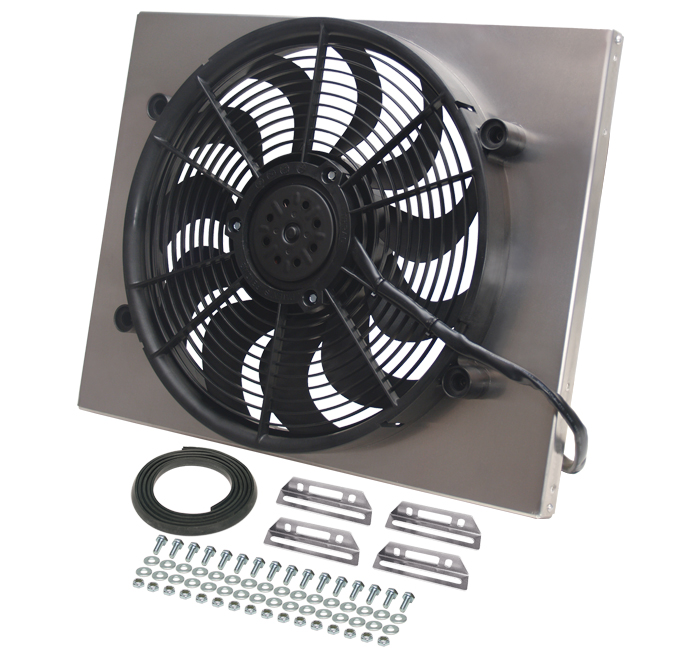

High Output Single 17'' Electric RAD Fan/Aluminum Shroud Kit - 22 1/4''W x 17 5/8''H x 3''D


This High Output Single RAD Fan is part of the HO Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 22 1/4" wide by 17 5/8" top to bottom and only 3" thick overall to offer a precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 17" high output two speed fan is one of the best in our line-up offering 2400 CFM when on high to create the most airflow possible in a compact size.

  • Designed for primary cooling
  • Raw aluminum shroud construction can be polished, painted or anodized
  • High Output 265 watt motor
  • 2400 CFM
  • Ultra-quiet patented skewed blade design
  • Puller (engine side) applications only
  • Kit includes mounting brackets and complete mounting hardware
  • CFM high/low: 2400/1800
  • Amp draw high/low: 23.5/17.4

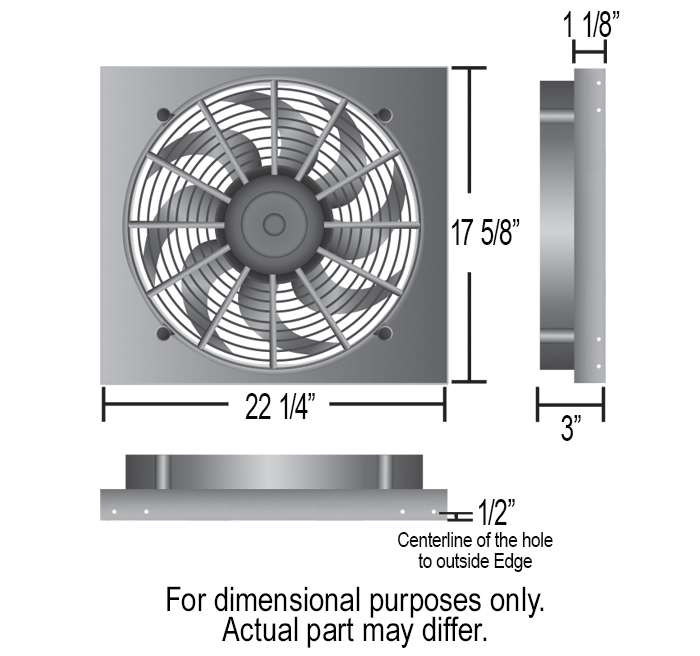

  • Width:22 1/4"
  • Height: 17 5/8"
  • Depth: 1-1/8"
  • Overall depth: 3"
  • Mounting Hole(s) center to outside edge: 1/2"
