Part Number 16823
High Output Single 17'' Electric RAD Fan/Aluminum Shroud Kit - 21''W x 16 3/4''H x 3''D
Description

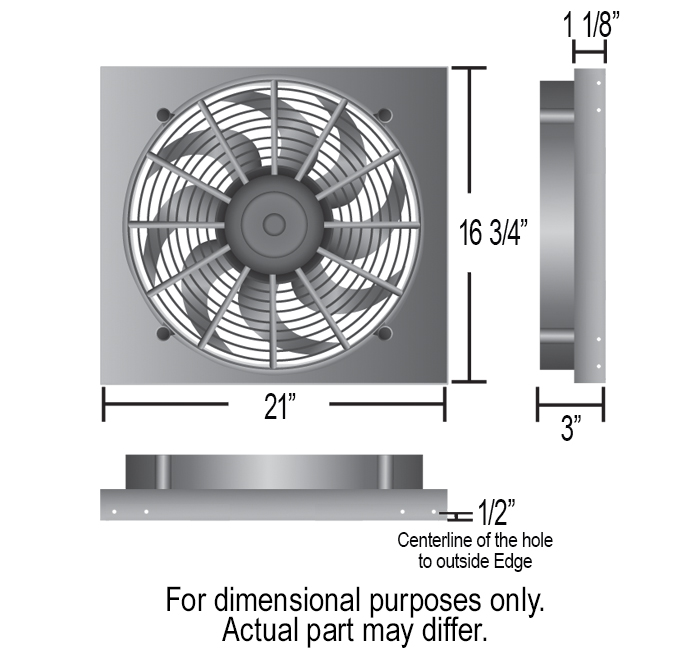

This High Output Single RAD Fan is part of the new HO Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 21" wide by 16 3/4" top to bottom and only 3" thick overall to offer a precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 17" high output two speed fan is one of the best in our line-up offering 2400 CFM when on high to create the most airflow possible in a compact size.
Specifications
- CFM high/low: 2400/1800
- Amp draw high/low: 23.5/17.4
- Width:21"
- Height: 16-3/4"
- Depth: 1-1/8"
- Overall depth: 3"
- Mounting Hole(s) center to outside edge: 1/2"
Features
- Designed for primary cooling
- Raw aluminum shroud construction can be polished, painted or anodized
- High Output 265 watt motor
- 2400 CFM
- Ultra-quiet patented skewed blade design
- Puller (engine side) applications only
- Replacement fan only is Derale 16917

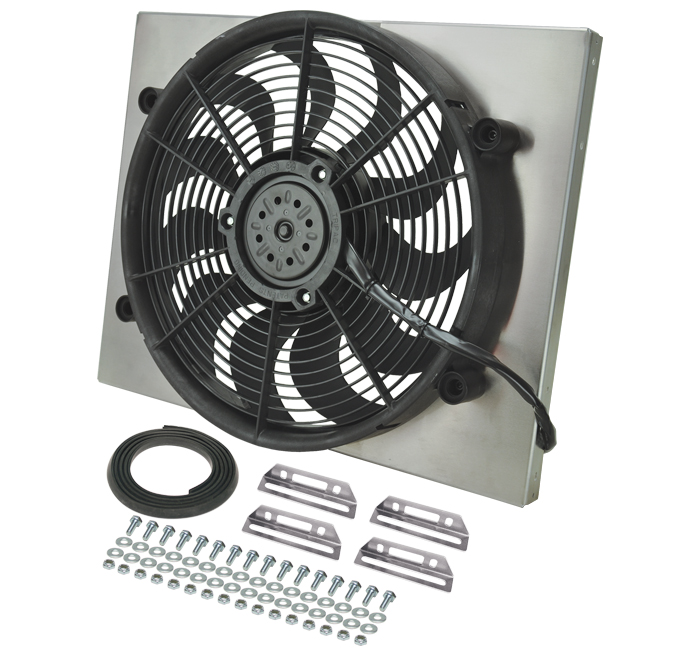

- Kit includes mounting brackets and complete mounting hardware
