Part Number 16308
8" Dyno-Cool Electric Fan and Mechanical Fan Controller Kit, Premium - 8"W x 8-1/8"H x 2-1/4"D
Description

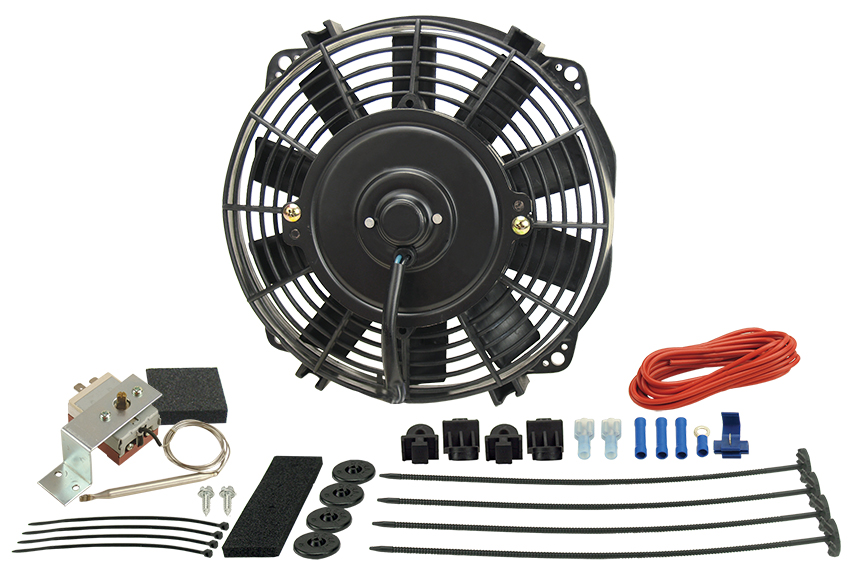

This little 8" straight blade electric fan moves 350 CFM at 0 static pressure, drawing only 5.3 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.
Features
- Ultra low profile design
- Straight fan blades
- 350 CFM
- Can be used as a puller
- Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware, and wire connections

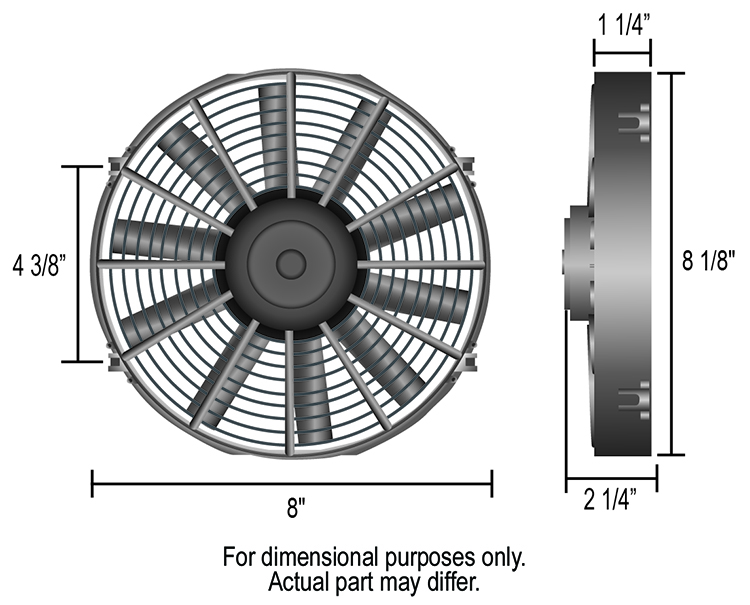

Specifications
- Fan size: 8"
- CFM: 350
- Amp draw: 5.3
- Width: 8"
- Height: 8-1/8"
- Depth: 1-1/4"
- Overall depth: 2-1/4"
- Mounting: 4-3/8"
- Airflow: Puller (reversible)
