Part Number 16310
10" Dyno-Cool Electric Fan and Mechanical Fan Controller Kit, Premium
Description
Our 10" straight blade electric fan moves 500 CFM at 0 static pressure, drawing only 6.4 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.
Features
- Ultra low profile design
- Straight fan blades
- 500 CFM
- Reversible design - can be used as a pusher or puller

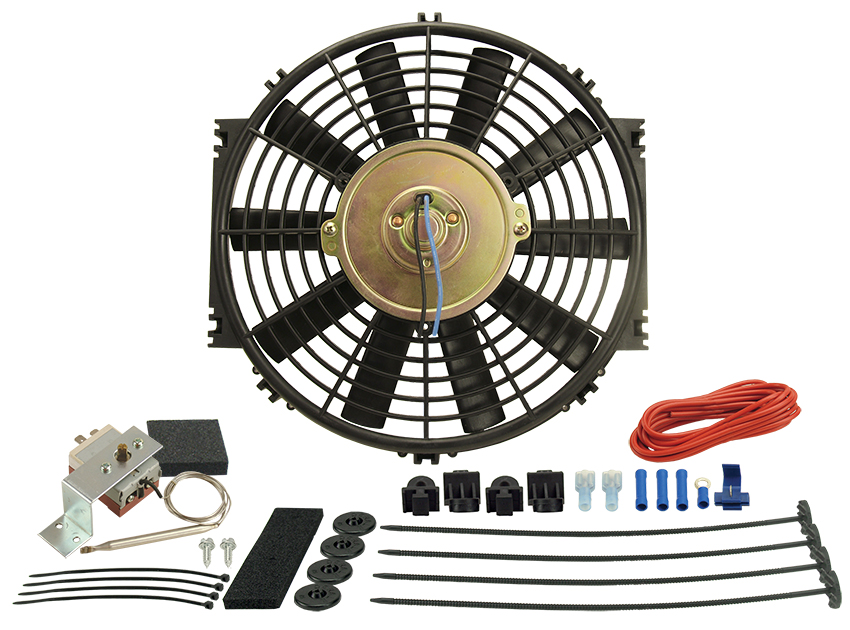

- Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections

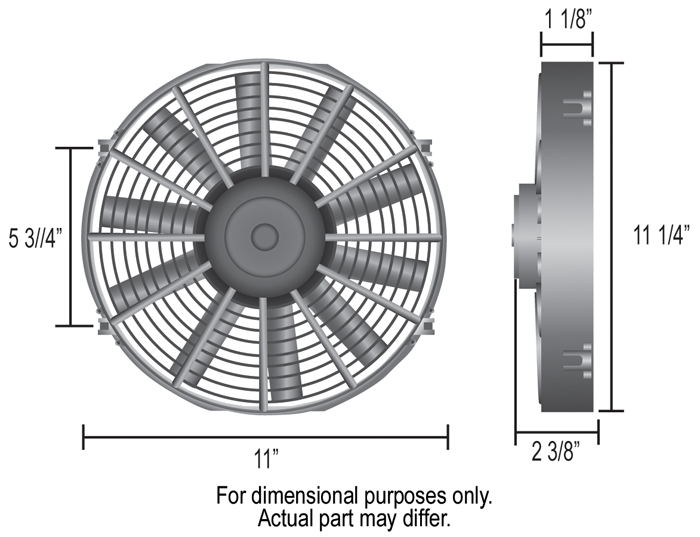

Specifications
- Fan size: 10"
- CFM: 500
- Amp draw: 6.4
- Width: 11"
- Height: 11-1/4"
- Depth: 1-1/8"
- Overall depth: 2-3/8"
- Mounting: 5-3/4"
- Airflow: Puller (reversible)
