Part Number 16316

16" Dyno-Cool Electric Fan and Mechanical Fan Controller Kit, Premium

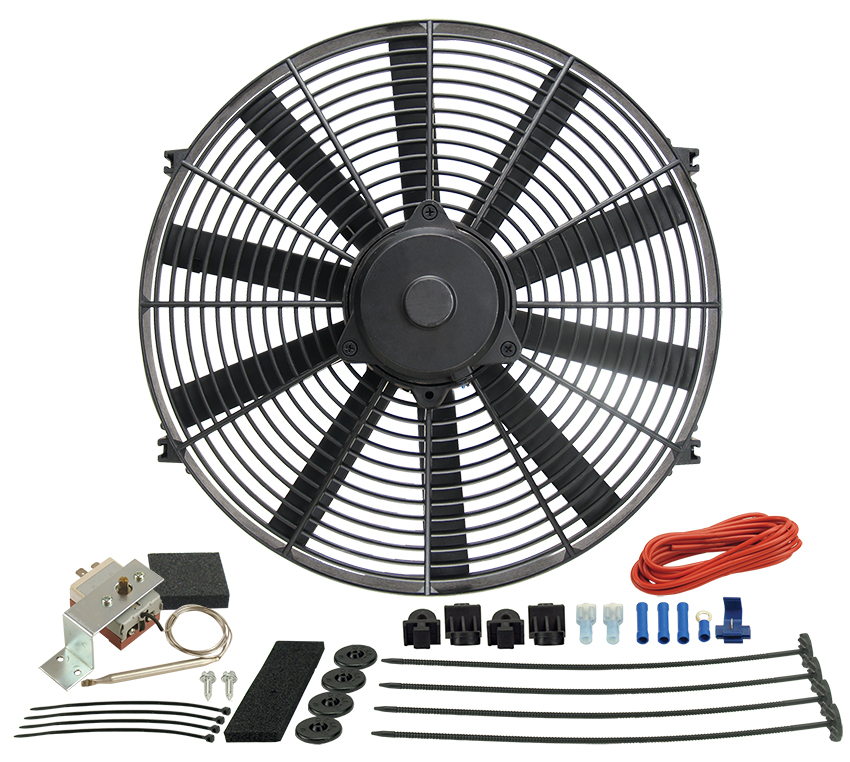

A great auxiliary fan or primary cooling fan for small to intermediate cars and trucks, this 16" straight blade electric fan produces 1550 CFM at 0 static pressure, drawing only 15.5 amps. Includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.

  • Ultra low profile design
  • Straight fan blades
  • 1550 CFM
  • Reversible design - can be used as a pusher or puller
  • Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections
  • Fan size: 16"
  • CFM: 1550
  • Amp draw: 15.5

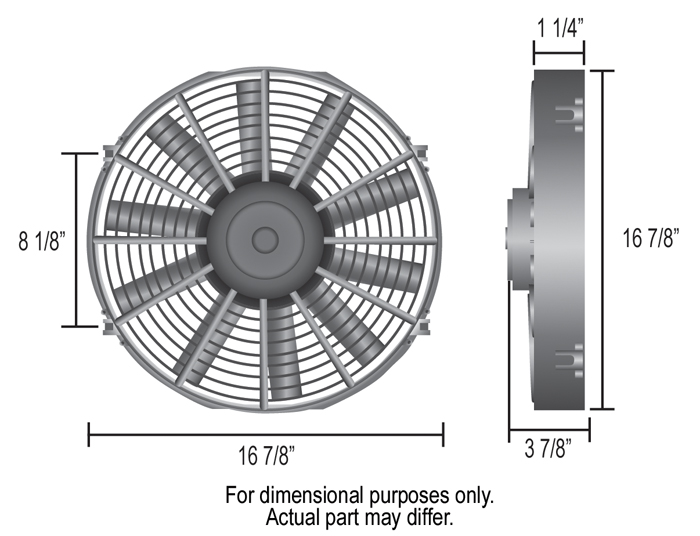

  • Width: 16-7/8"
  • Height: 16-7/8"
  • Depth: 1-1/4"
  • Overall depth: 3-7/8"
  • Mounting: 8-1/8"
  • Airflow: Puller (reversible)
