Part Number 18910
10" Dyno-Cool Curved Blade Electric Fan
Description
This 10" electric fan uses curved blades to provide more blade area and performance with less noise, plus has a lower profile. It moves 590 CFM at 0 static pressure, drawing only 5.3 amps. Included with each fan is a fan mounting kit with 4 plastic through radiator core rods and clips, 4 foam pads and 4 mounting feet.

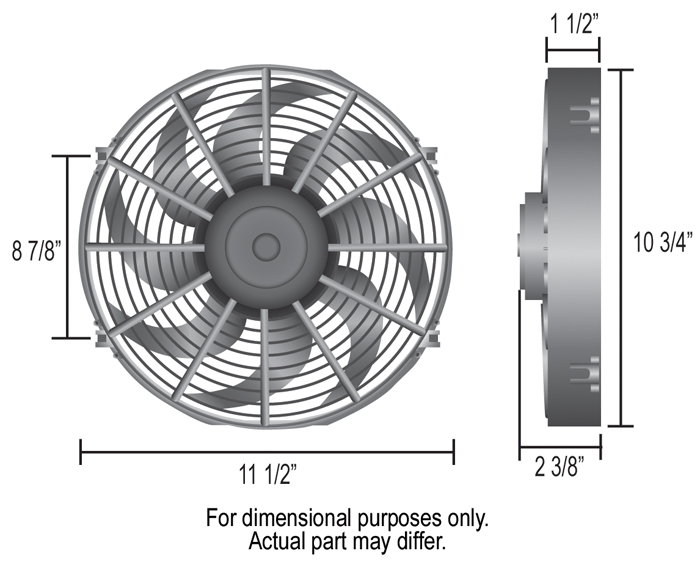

Specifications
- Fan size: 10"
- CFM: 590
- Amp draw: 5.3
- Width: 11-1/2"
- Height: 10-3/4"
- Depth: 1-1/2"
- Overall depth: 2-3/8"
- Mounting: 9-7/8 x 5-3/4"
- Airflow: Puller (reversible)
Features
- Efficient curved blade design
- Low profile
- 590 CFM
- Reversible design - can be used as a pusher or puller
- Complete with fan kit which includes all mounting hardware, lighted toggle switch, fuse, and wire connections
