Part Number 16136
16" High Output Paddle Blade IP68 Electric Puller Fan
Description
This powerful 16" diameter unit uses 7 thick curved blades to pull large volumes of air in the toughest environments. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 times longer than normal electric fan motors, this puller fan is designed to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.
Specifications
- CFM: 1918
- Amp Draw: 25.4

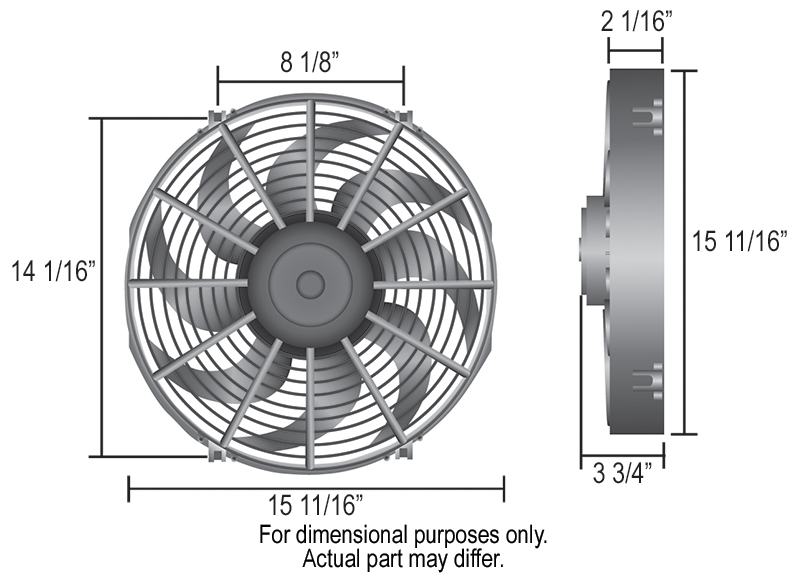

- Width: 15-11/16"
- Height: 15-11/16"
- Depth: 3-3/4"
- Mounting: 8-1/8" x 14-1/16"
Features
- Primary cooling fan eliminates fuel and horsepower robbing belt driven fans
- 7 thick curved blades pull large volumes of air in the toughest environments
- Designed for maximum performance at high static pressure loads for more effective cooling.
- Long lasting, sealed IP68 certified waterproof & dustproof motor
- 1918 CFM
- Includes mounting kit and illustrated installation instructions
- Puller only (engine side)
