Part Number 16104

4" High Output Paddle Blade IP68 Electric Puller Fan

Description

This 4" diameter fan uses a sealed IP68 certified waterproof & dustproof motor with 5 large, paddle style blades and due to its size a very versatile little puller fan. Though not reversible, it is popular in multi-industrial applications, from atv's to computers to audio equipment. Includes mounting kit and illustrated installation instructions.

Features
  • Reliable, long lasting high torque motor lasts up to 3x longer than regular electric fan motors
  • 5 wide paddle blades pull large volumes of air for maximum heat extraction.
  • Designed for maximum performance at high static pressure loads for more effective cooling
  • Long lasting, sealed IP68 certified waterproof & dustproof motor
  • 125 CFM
  • Includes mounting kit and illustrated installation instructions
  • Puller only (engine side)

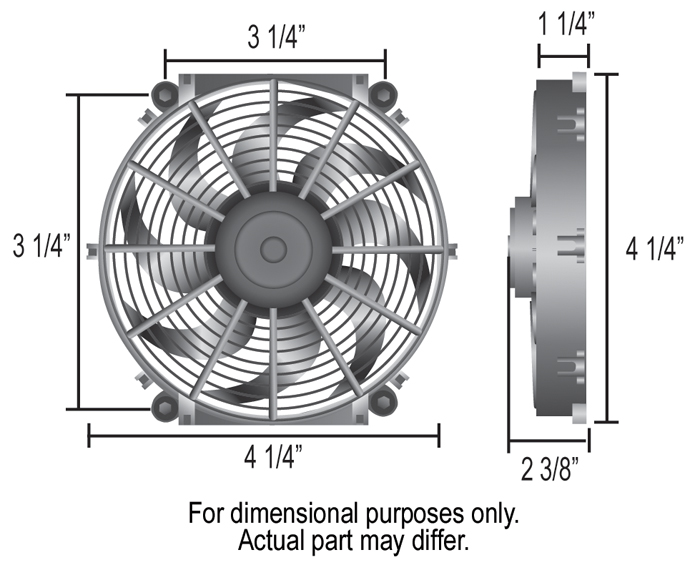

Specifications
  • Fan size: 4"
  • CFM: 125
  • Amp draw: 1.9
  • Width: 4-1/4"
  • Height: 4-1/4"
  • Depth: 1-1/4"
  • Overall Depth: 2-3/8"
  • Mounting: 3-1/4" x 3-1/4"
  • Airflow: Puller (not reversible)
