Part Number 16105

5" High Output Paddle Blade IP68 Electric Puller Fan

Description

This 5" diameter fan uses a sealed IP68 certified waterproof & dustproof motor with 5 large, paddle style blades and due to its size a very versatile little puller fan.  Though not reversible, it is popular in multi-industrial applications, from atv's to computers to audio equipment. Includes mounting kit and illustrated installation instructions.

Features
  • Reliable, long lasting high torque motor lasts up to 3x longer than regular electric fan motors
  • 5 wide paddle blades pull large volumes of air for maximum heat extraction.
  • Designed for maximum performance at high static pressure loads for more effective cooling
  • Long lasting sealed waterproof, dustproof IP-68 certified motor
  • 315 CFM

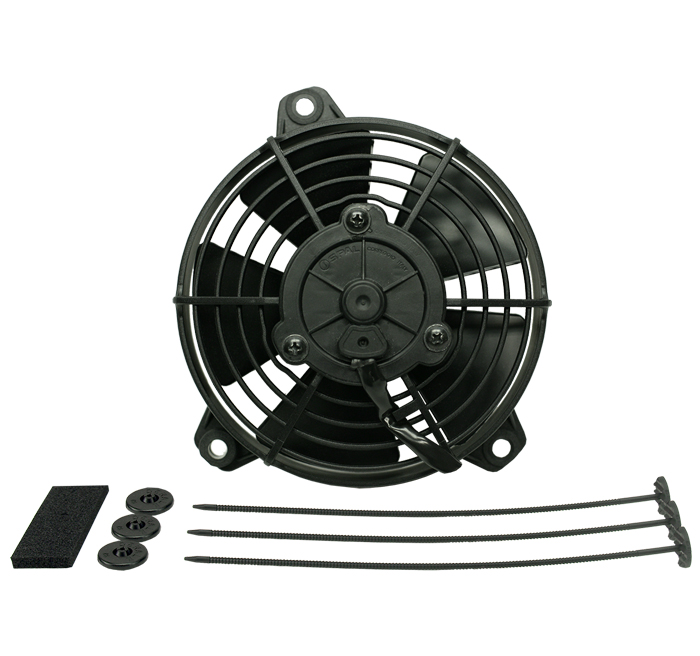

  • Includes mounting kit and illustrated installation instructions
  • Puller only (engine side)
Specifications
  • Fan size: 5"
  • CFM: 315
  • Amp draw: 3.6
  • Width: 5-5/8"
  • Height: 6-1/4"
  • Depth: 1-1/4"
  • Overall depth: 2-1/4"

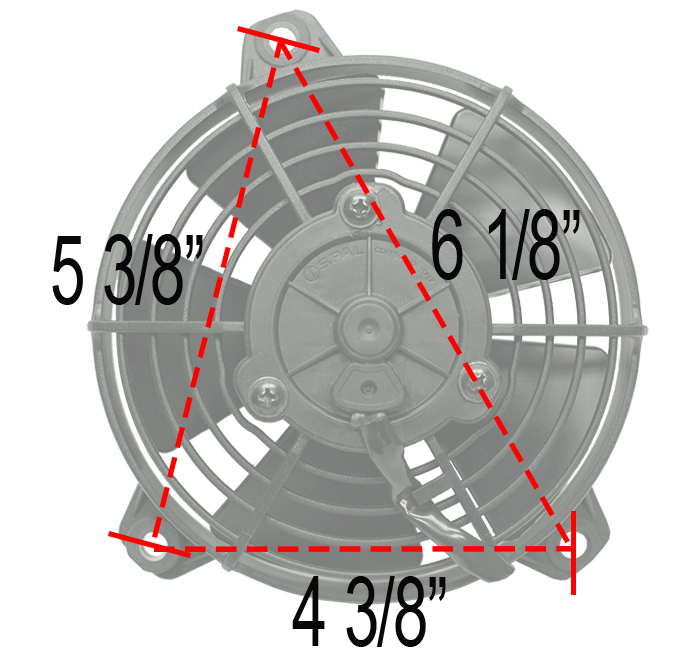

  • Mounting: Three hole mount
    Bottom Hole to Hole Bottom: 4-3/8"
    Left Bottom Hole to Top Hole: 5-3/8"
    Right Bottom Hole to Top Hole: 6-1/8"
  • Airflow: Puller (not reversible)
