Part Number 16110
10'' High Output Curved Blade IP68 Electric Puller Fan
Description

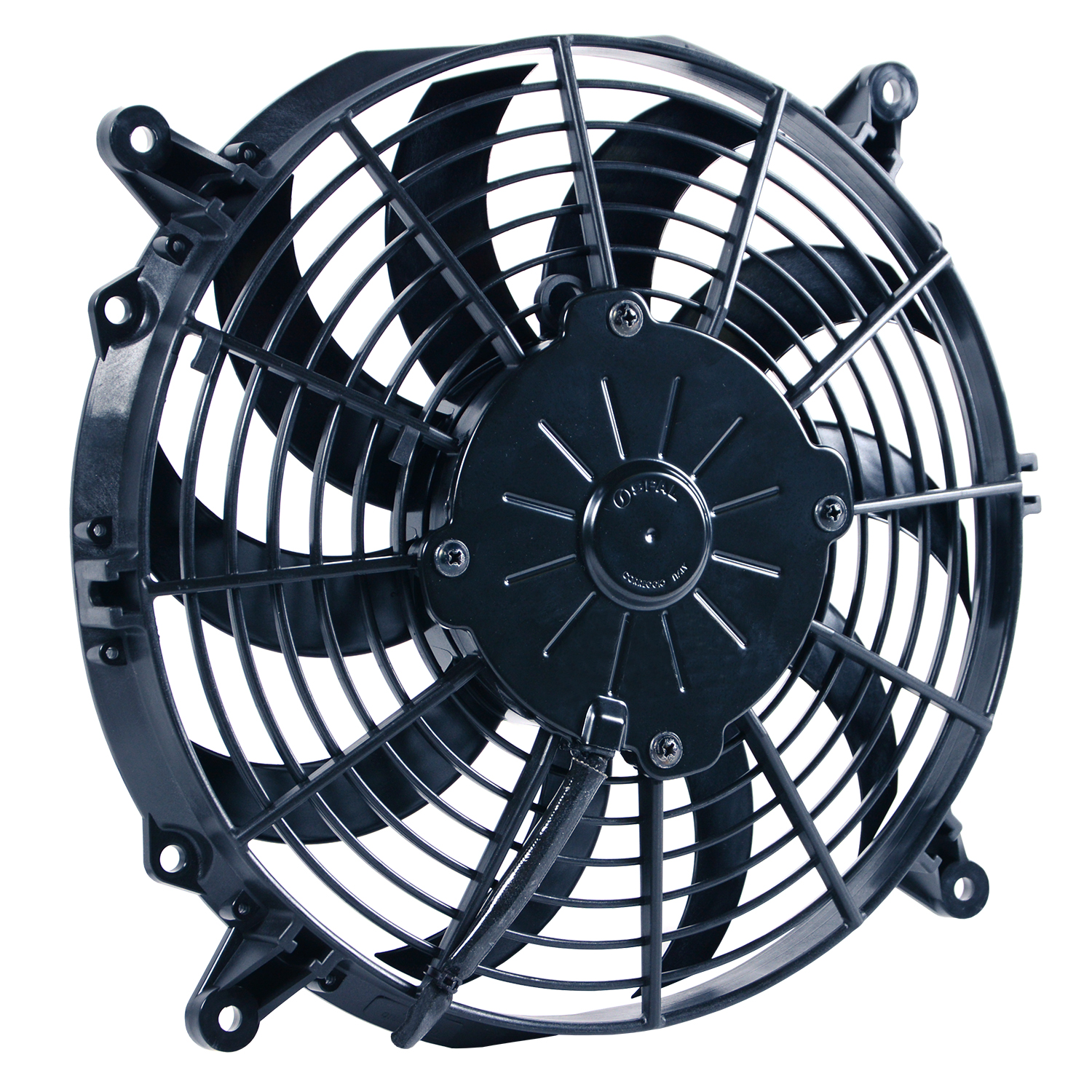

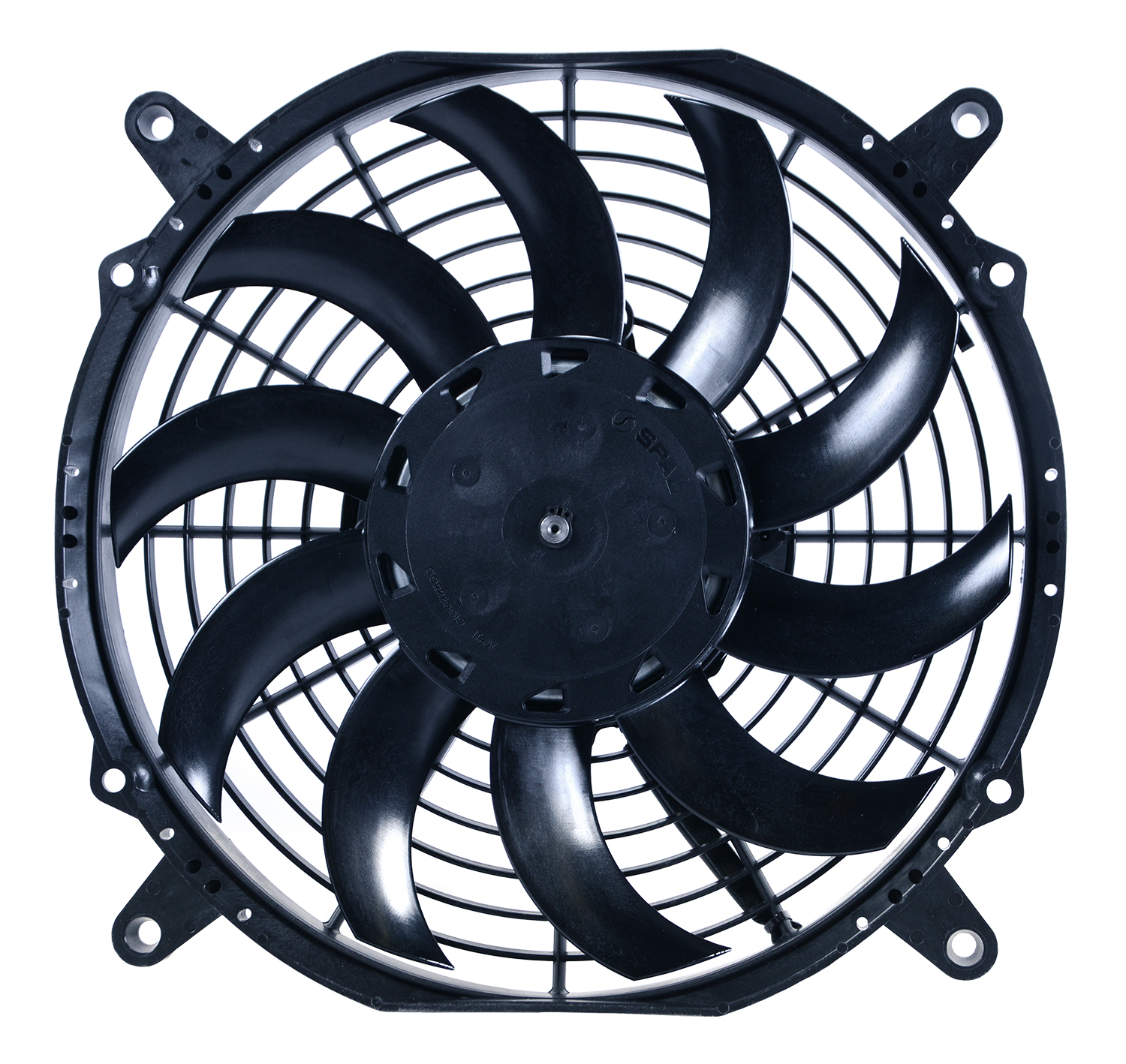

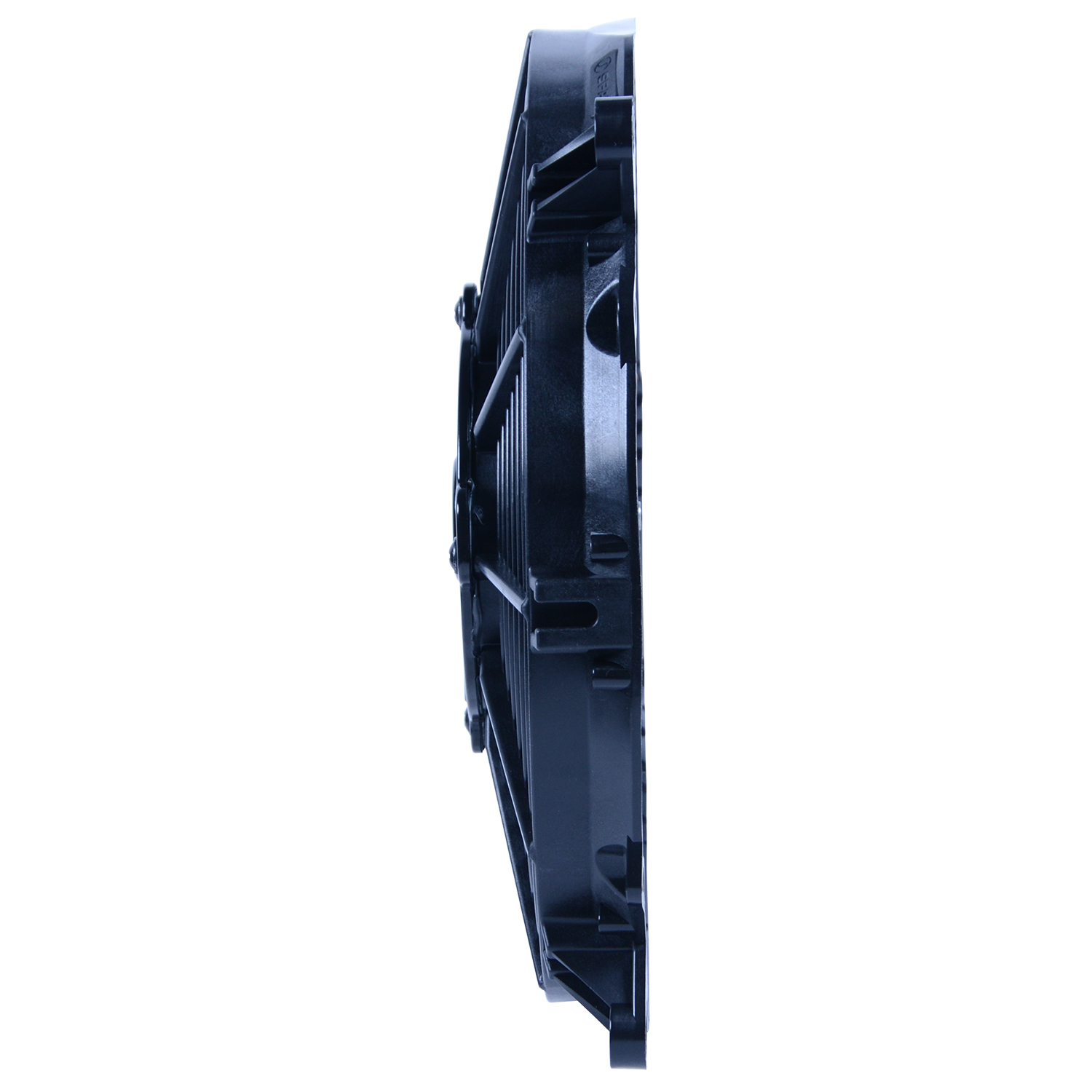

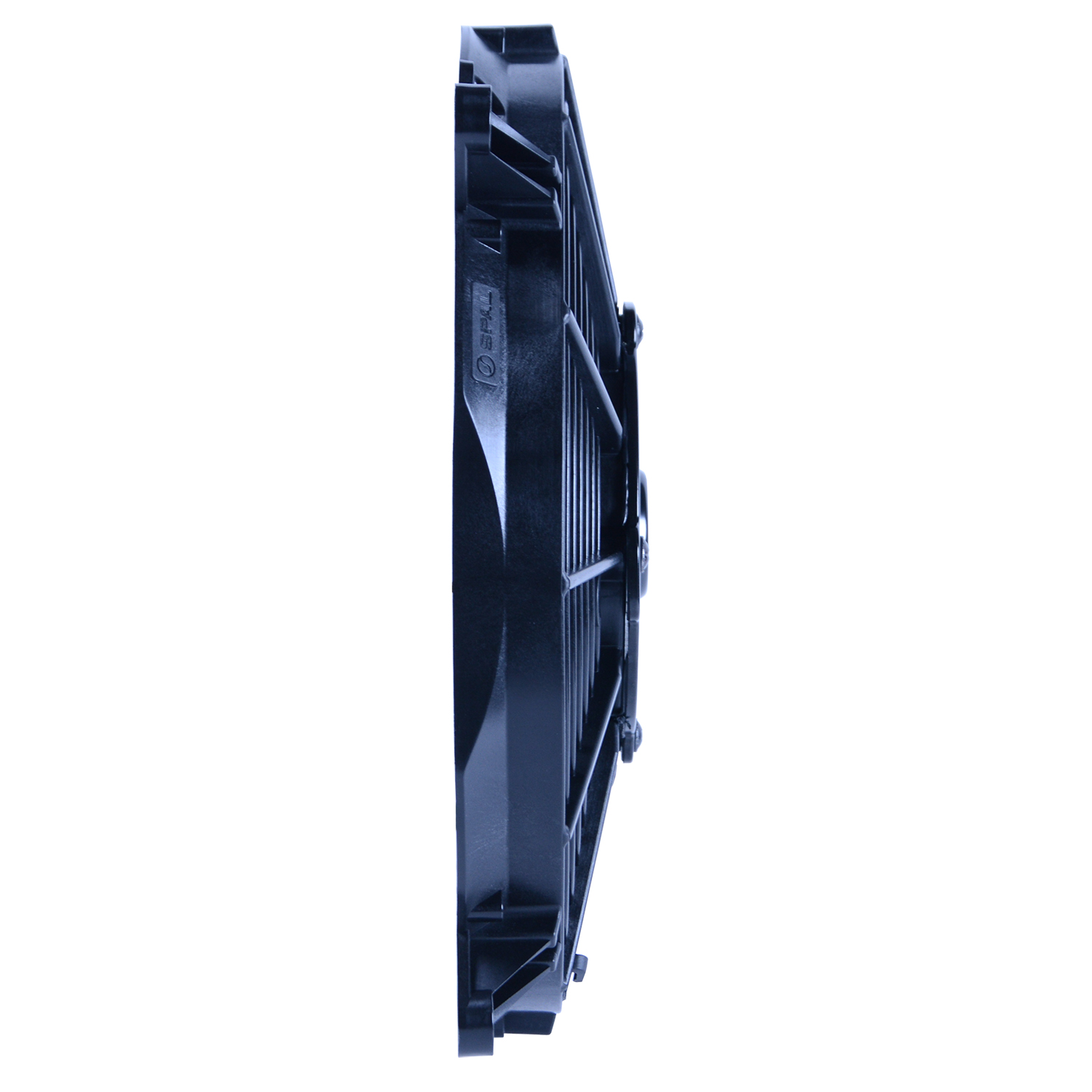

A 10" Diameter version of our high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 2 1/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 times longer than normal electric fan motors, this puller fan is designed to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.
Features
- Primary cooling fan eliminates fuel and horsepower robbing belt driven fans
- 10 thin curved blades allow ultra low profile design for limited space applications
- Sealed waterproof/dustproof IP68 certified motors
- Ultra quiet S-blade designs
- Designed for maximum performance at high static pressure loads for more effective cooling
- Long lasting, sealed IP68 certified waterproof & dustproof motor
- 825 CFM

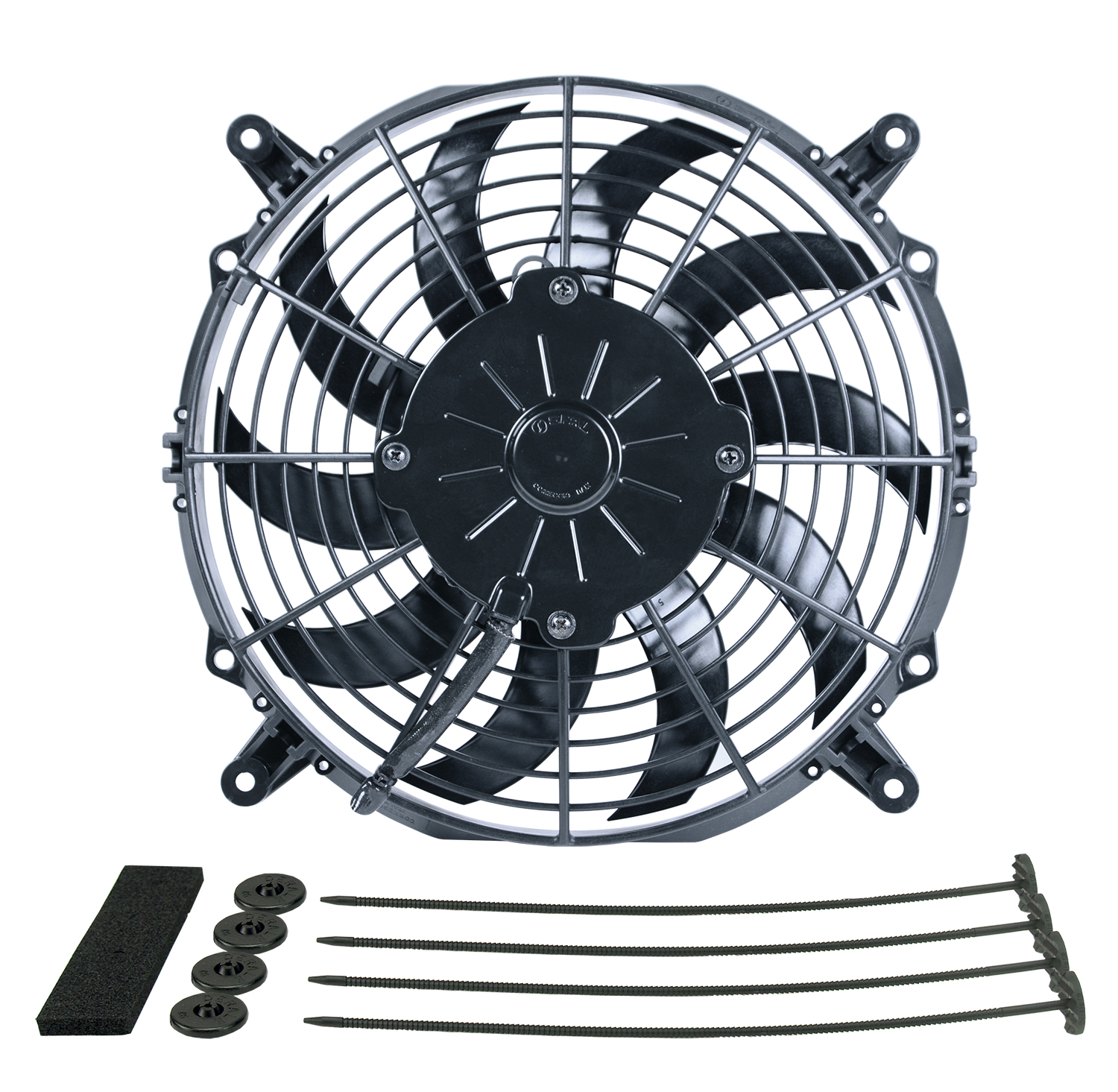

- Includes mounting kit and illustrated installation instructions
- Puller only (engine side)

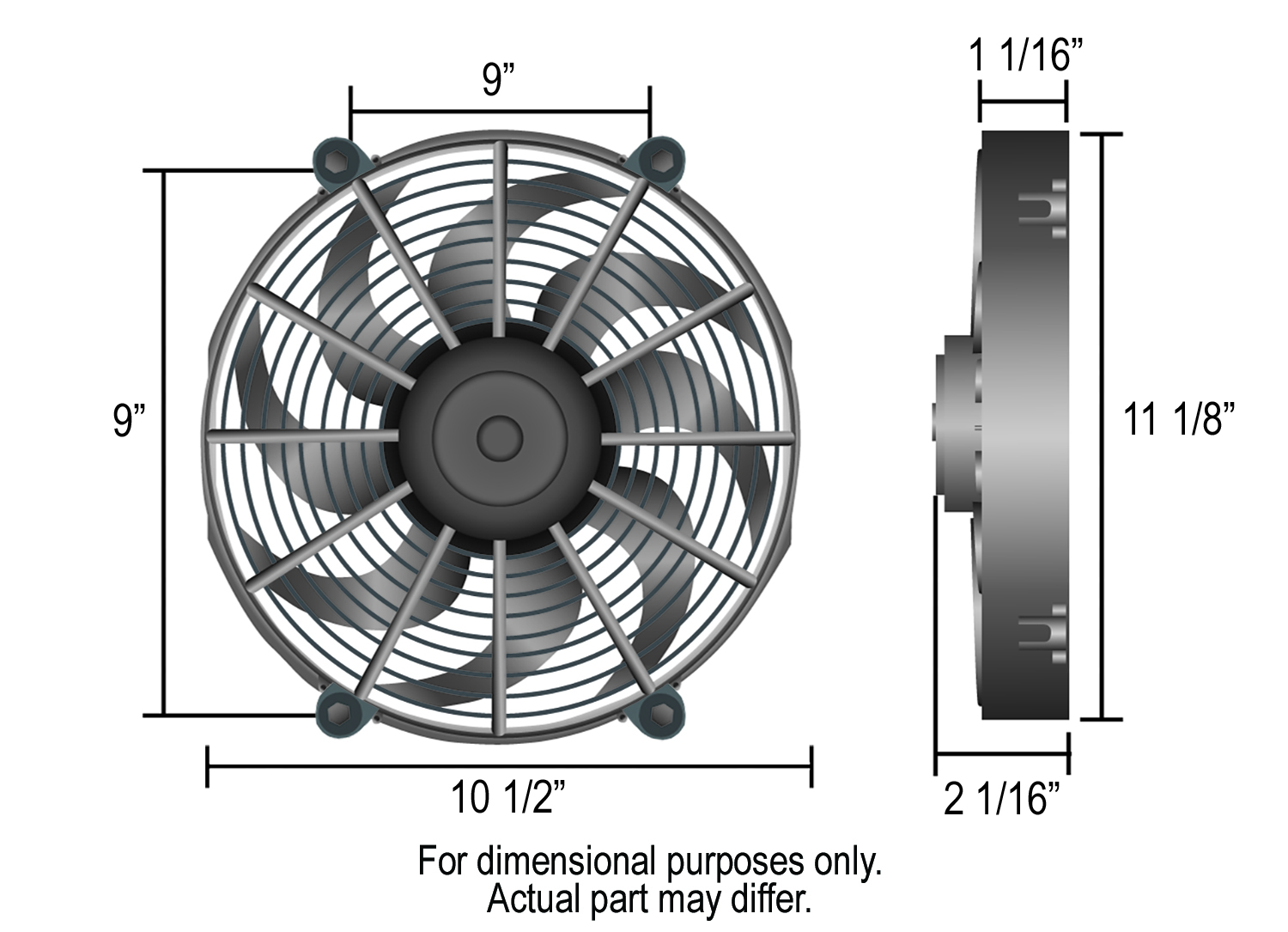

Specifications
- CFM fan: 825
- Amp draw: 9.2
- Width: 10-1/2"
- Height: 11-1/8"
- Depth: 1-1/16"
- Overall Depth: 2-1/16"
- Mounting: 9" x 9"
