Part Number 16924

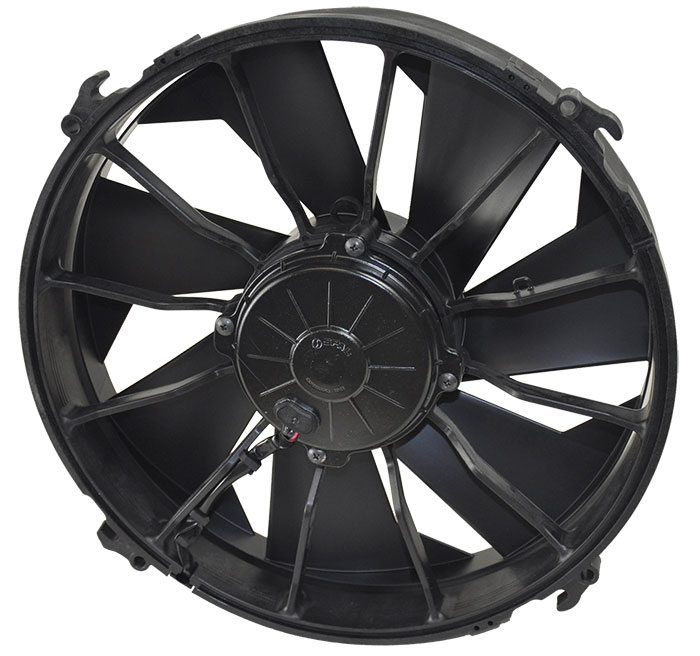

12'' High Output Single RAD Pusher/Puller Fan with Standard Mount Kit - 13-1/8''W x 13-1/8''H x 3-1/2''D
Description
This 12" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 300 watt motor driving 7 skewed blades, it can be used as a pusher with the supplied hardware kit. Fan can also be used as puller by combining with a custom built shroud. Moves 2000 CFM while drawing up to 24.8 amps. This is the replacement fan for part numbers 16814, 16825, 16826, 16836, 16837, 16838, 16842 & 16927.
Features
- State-of-the-art symmetrical design
- High output 300 watt motor
- 2000 CFM

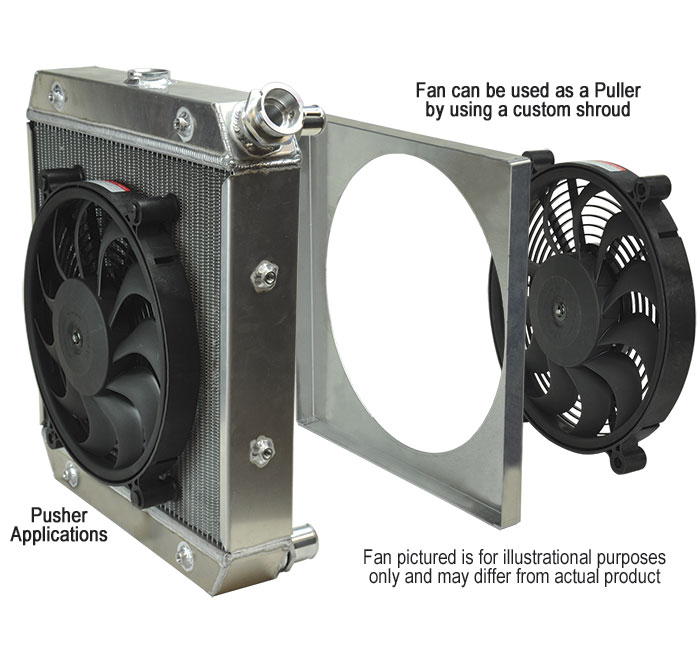

- Mounts as pusher (grill side). *Can be used in puller application when custom shroud is used

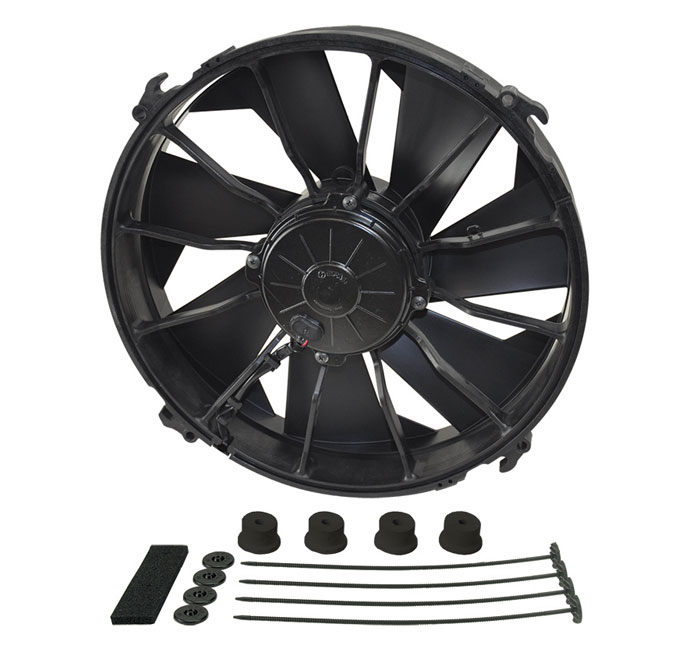

- Includes nylon mounting hardware and rubber isolators

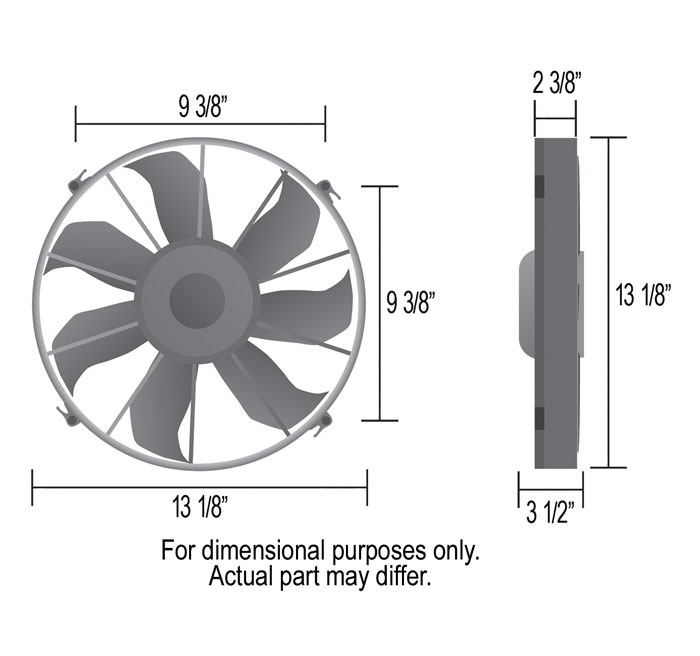

Specifications
- CFM: 2000
- Amp draw: 24.8
- Width: 13-1/8"
- Height: 13-1/8"
- Depth: 2-3/8"
- Overall depth: 3-1/2"
- Mounting: 9-3/8" x 9-3/8"
