Part Number 16214

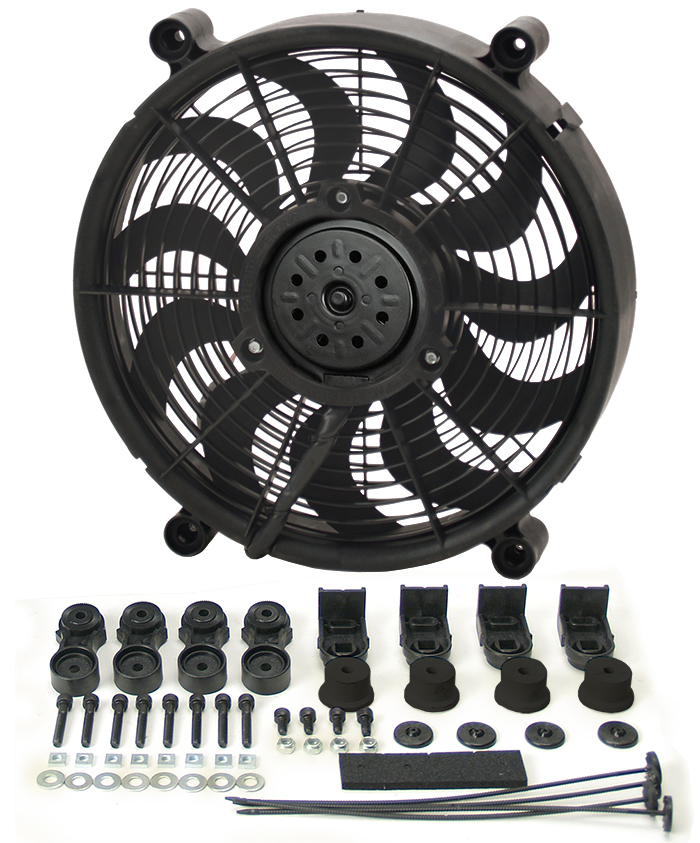

14'' H.O. Single RAD Pusher/Puller Fan with Premium Mount Kit - 14-1/2''W x 14-1/2''H x 2-5/8''D
Description
A very popular primary cooling fan, this 14" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2100 CFM while drawing up to 22 amps. Includes a patented ratchet mounting system for a professional installation.
Specifications
- CFM high/low: 2100/1500
- Amp draw high/low: 22/16.2

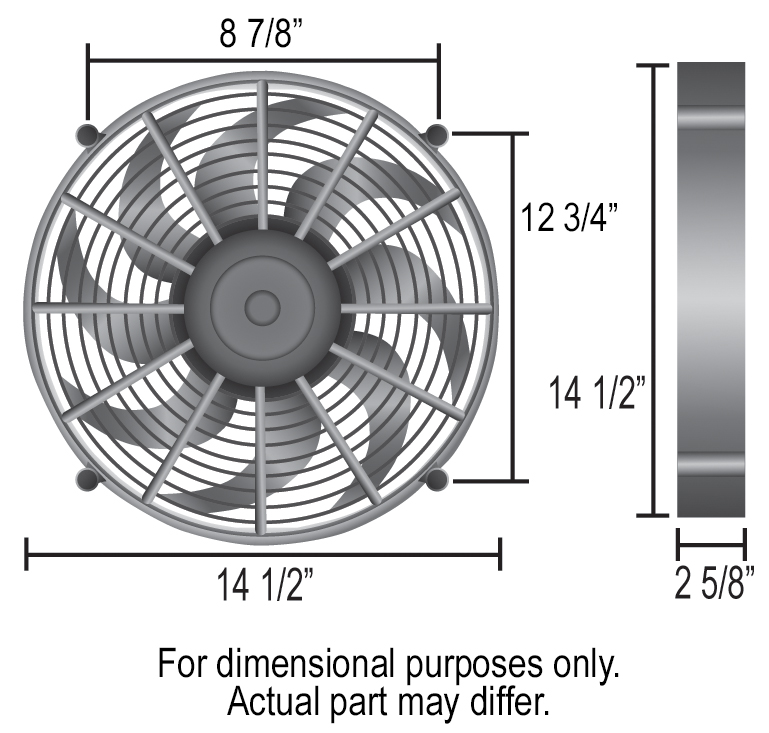

- Width: 14-1/2"
- Height: 14-1/2"
- Depth: 2-5/8"
- Mounting: 8-7/8" x 12-3/4"
Features
- Mounts as a Pusher or Puller without flipping blade or switching motor leads
- State-of-the-art symmetrical design
- High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
- 2100 CFM on high speed / 1500 CFM on low speed
- Ultra-quiet patented skewed blade design
- Patented ratchet mounting system
