Part Number 16913
14'' High Output RAD Pusher Fan - 14-1/2''W x 14-1/2''H x 2-5/8''D
Description

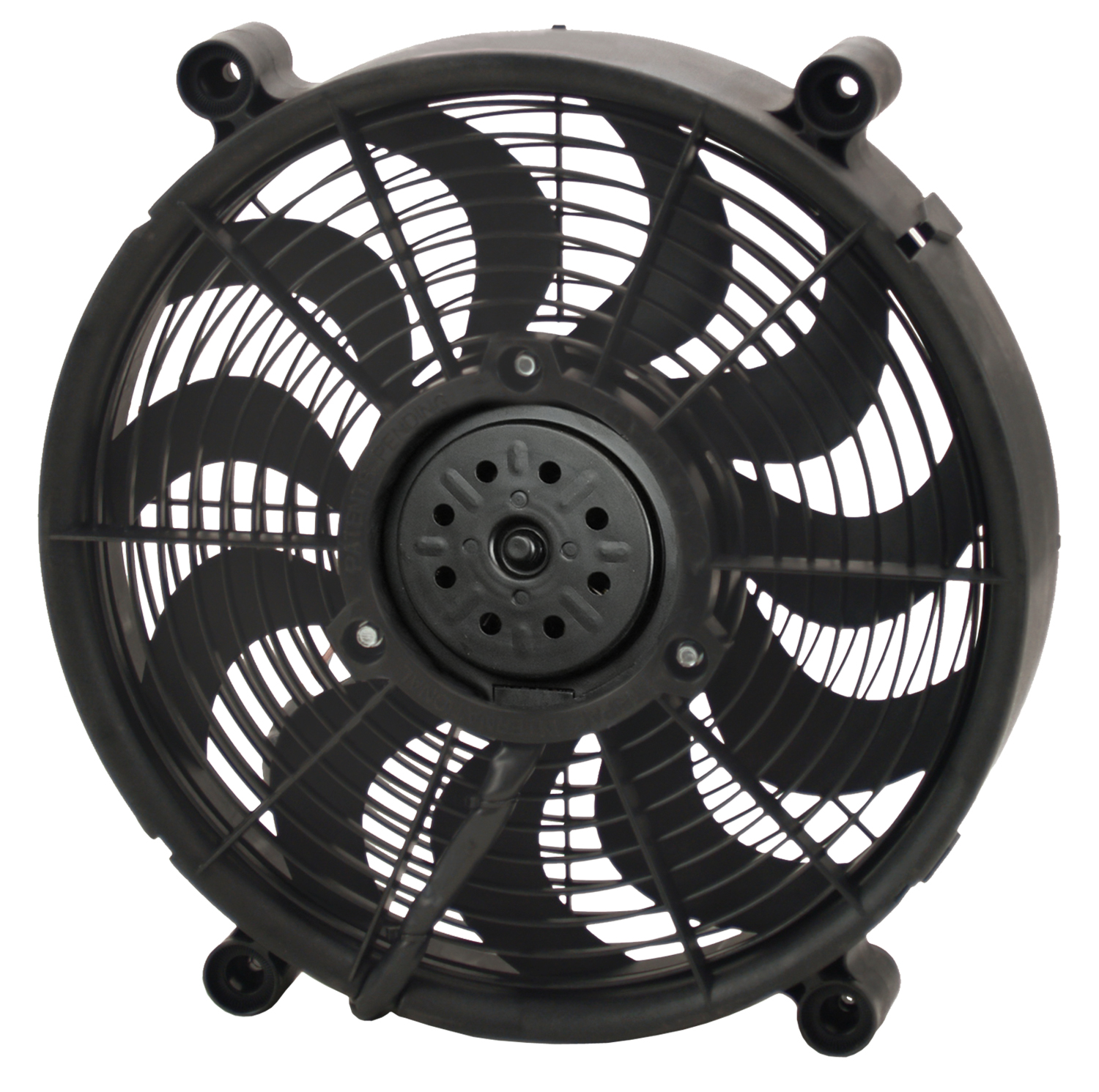

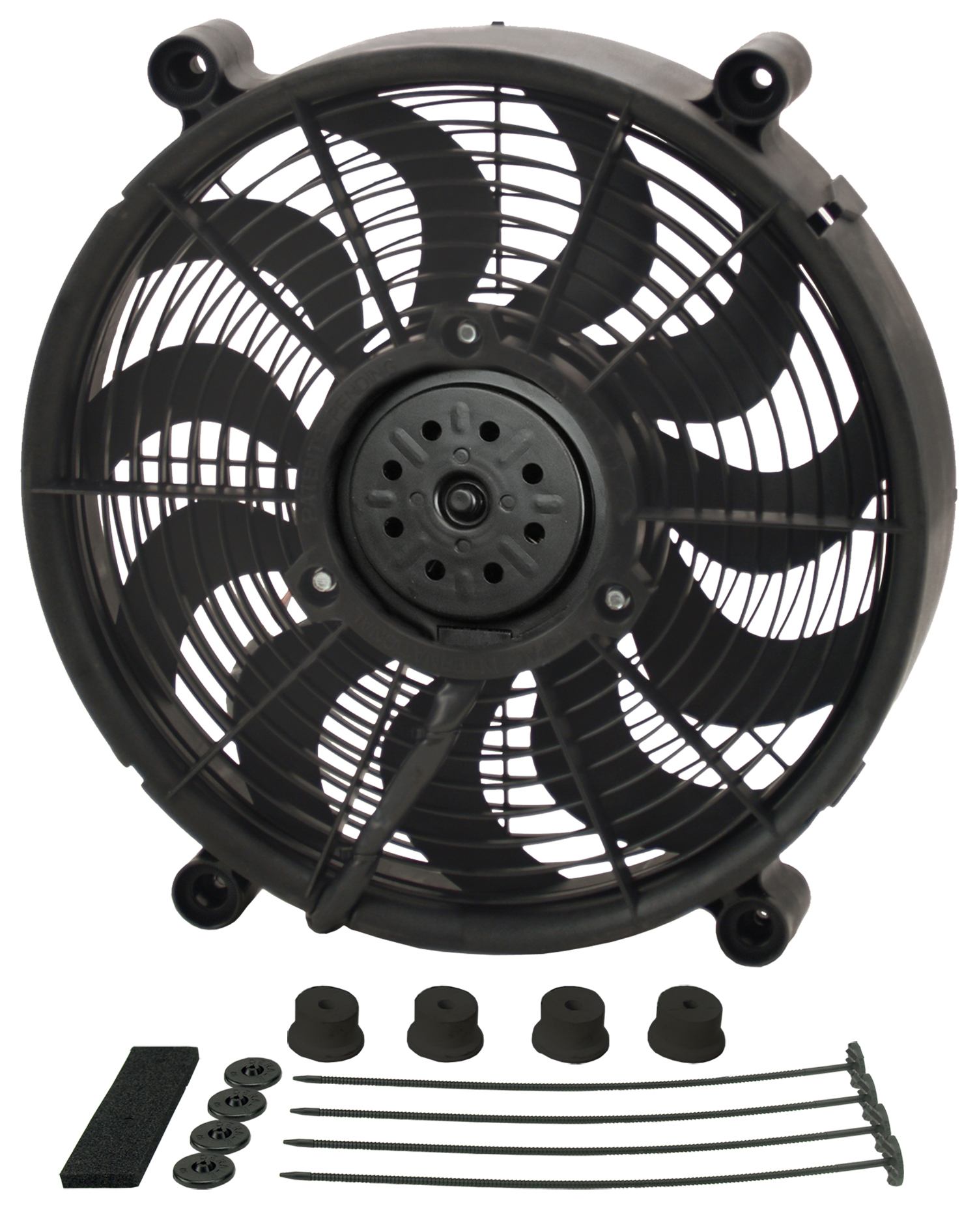

A very popular primary cooling fan, this 14" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan without changing direction of the unit. Moves up to 2100 CFM while drawing up to 22 amps.
Features
- Mounts as Pusher (grill side)
- Can be used in puller application when custom shroud is used (not included)
- State-of-the-art symmetrical design
- High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
- 2100 CFM on high speed / 1500 CFM on low speed
- Ultra-quiet patented skewed blade design
Specifications
- CFM high/low: 2100/1500
- Amp draw high/low: 22/16.2

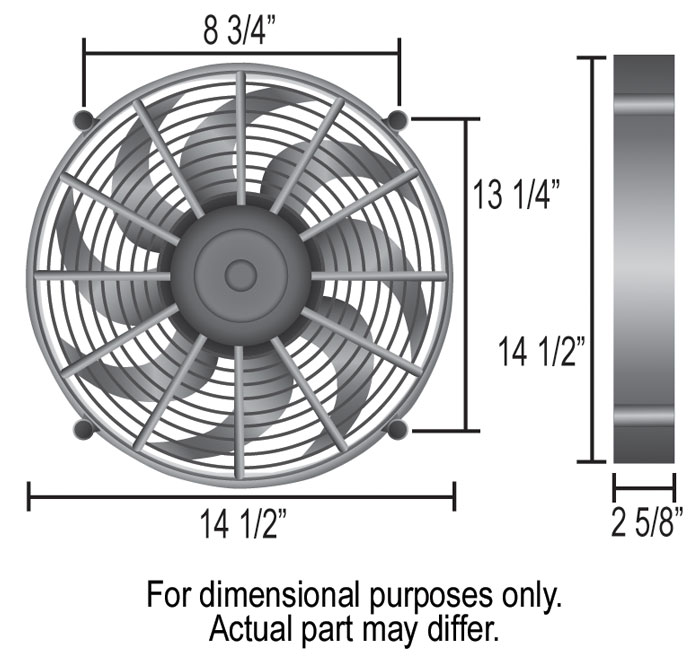

- Width: 14-1/2"
- Height: 14-1/2"
- Depth: 1-5/8"
- Overall depth: 2-5/8"
- Mounting: 8-3/4" x 13-1/4"
