Part Number 18214

14'' H.O. Single RAD Pusher/Puller Fan with Standard Mount Kit

Description

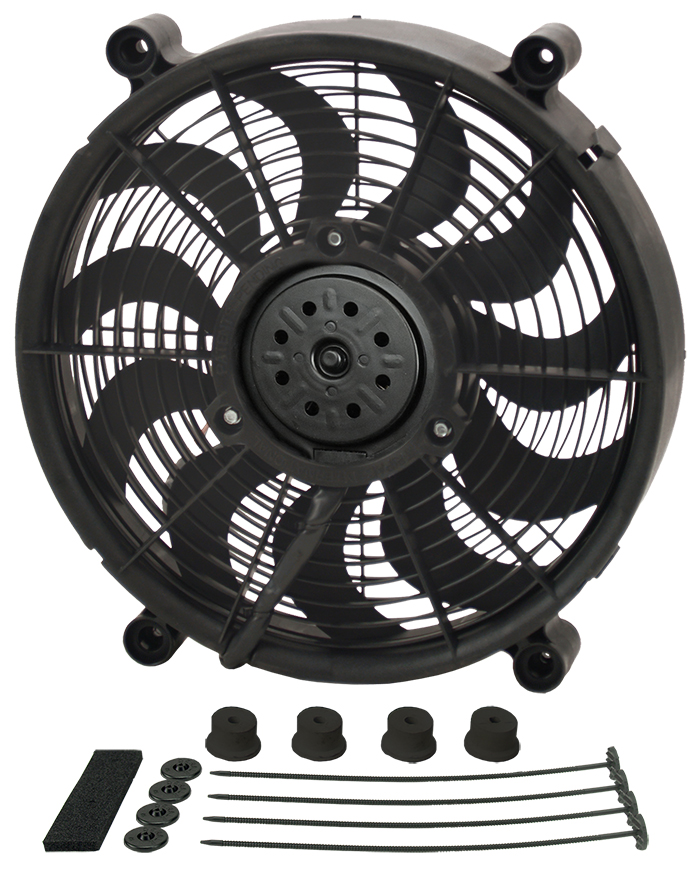

A very popular primary cooling fan, this 14" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2100 CFM while drawing up to 22 amps.

Specifications
  • CFM high/low: 2100/1500
  • Amp draw high/low: 22/16.2

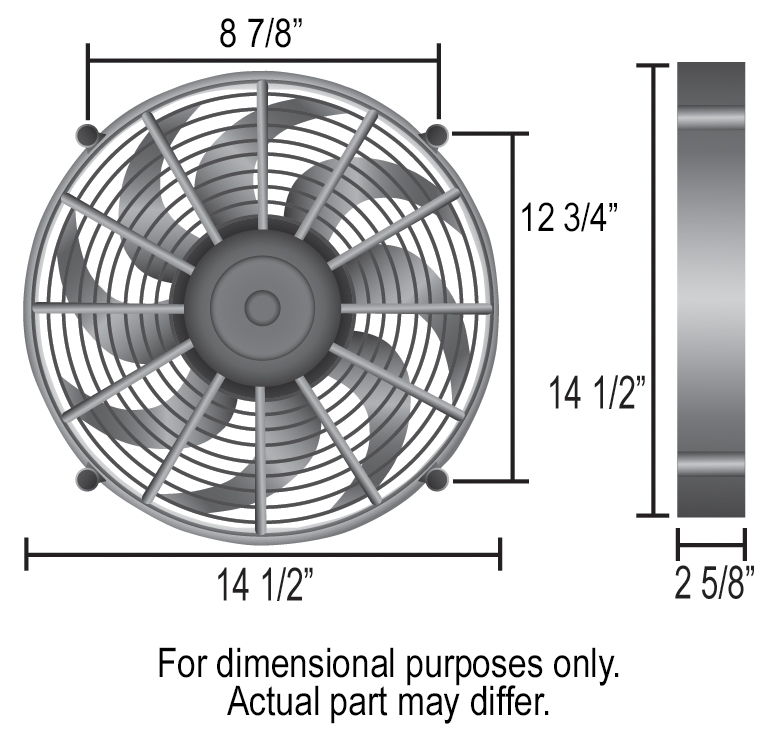

  • Width: 14-1/2"
  • Height: 14-1/2"
  • Depth: 2-5/8"
  • Mounting: 8-7/8" x 12-3/4"
Features
  • Mounts as a Pusher or Puller without flipping blade or switching motor leads
  • State-of-the-art symmetrical design
  • High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
  • 2100 CFM on high speed / 1500 CFM on low speed
  • Ultra-quiet patented skewed blade design
