Part Number 16010

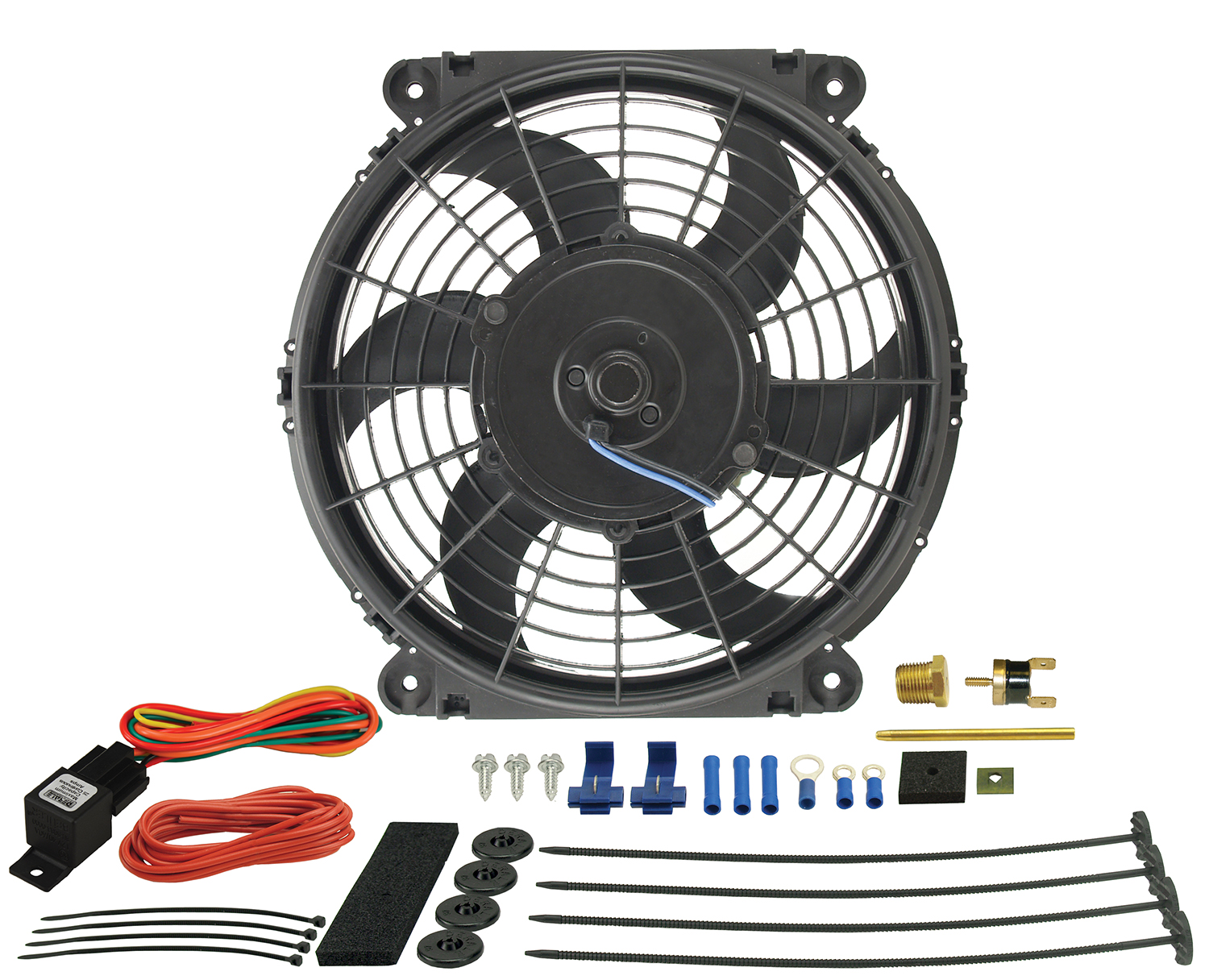

10'' Tornado Electric Fan & 180°F Dual Probe Fan Controller Kit
Description
One of our most popular models, this 10" reversible Tornado fan uses 6 skewed blades, producing 650 CFM at 0 static pressure while drawing only 5.3 amps. Kit includes a high quality single stage fan controller with preset 180°F-on and 165°F-off temperature controls and includes both a push-in radiator probe and a 3/8" NPT brass water jacket probe, plus all necessary installation hardware. Made in the USA.
Features
- Reliable, efficient, high torque motors
- Ultra-quiet patented skewed blade design
- 650 CFM
- Reversible design - can be used as a pusher or puller
- Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware, and wire connections
Temperature Sensor Tech Tips

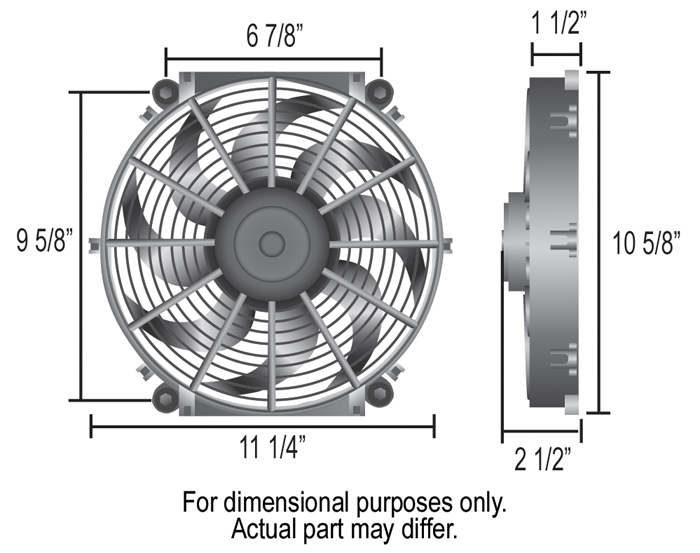

Specifications
- Fan size: 10"
- CFM: 650
- Amp draw: 5.3
- Width: 11-1/4"
- Height: 10-5/8"
- Depth: 1-1/2"
- Overall depth: 2-1/2"
- Mounting: 9-5/8" x 6-7/8"
- Airflow: Puller (Reversible)
