Part Number 16012
12'' Tornado Electric Fan & 180°F Dual Probe Fan Controller Kit
Description
This 12" reversible Tornado fan uses 8 skewed blades, producing 880 CFM at 0 static pressure, drawing only 8.8 amps. Take two of these fans and one of our 16701 Dual fan mounting brackets and you have a powerful dual fan combo in a compact package. Kit includes a high quality single stage fan controller with preset 180°F-on and 165°F-off temperature controls and includes both a push-in radiator probe and a 3/8" NPT brass water jacket probe, plus all necessary installation hardware. Made in the USA.
Features
- Reliable, efficient, high torque motors
- Ultra-quiet patented skewed blade design
- 880 CFM
- Reversible design - can be used as a pusher or puller

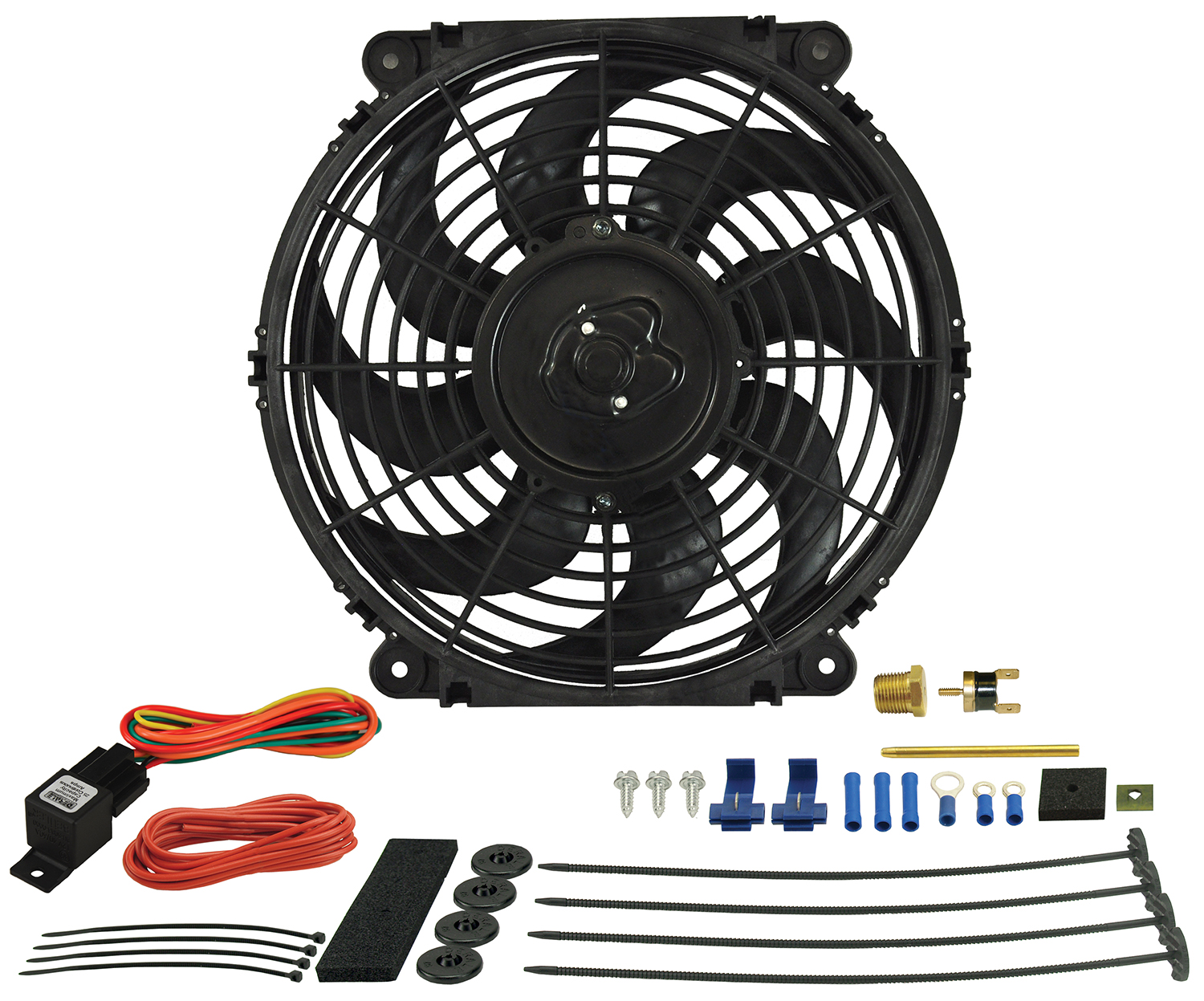

- Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware, and wire connections
Temperature Sensor Tech Tips

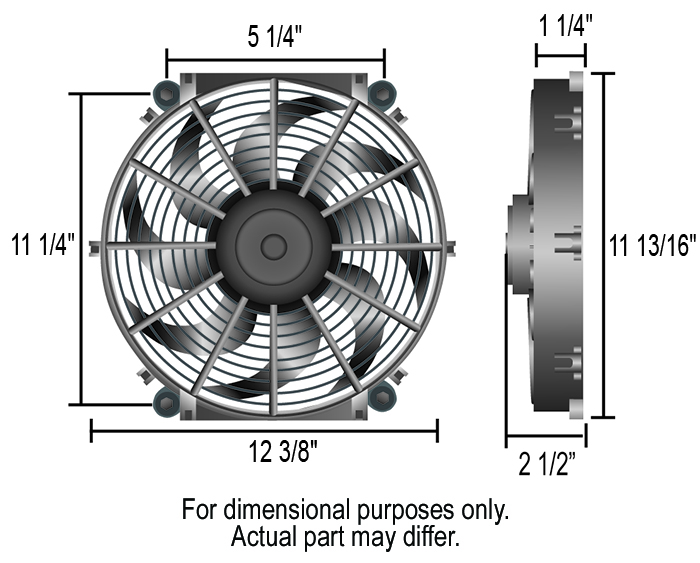

Specifications
- Fan size: 12"
- CFM: 880
- Amp draw: 8.8
- Width: 12-3/8"
- Height: 11-13/16"
- Depth: 1-1/4"
- Overall depth: 2-1/2"
- Mounting: 11-1/4" x 5-1/4"
- Airflow: Puller (reversible)
