Part Number 16016

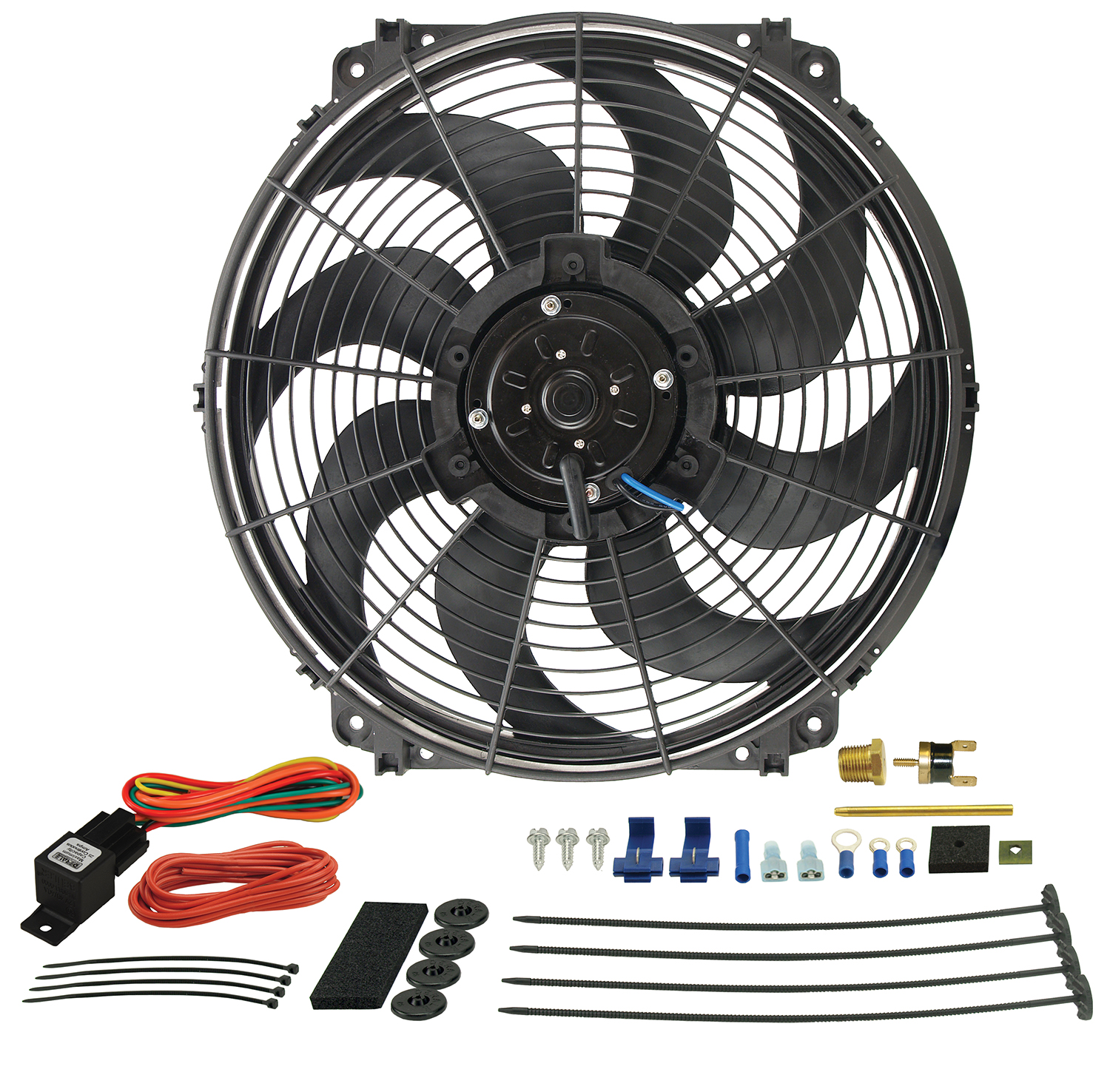

16'' Tornado Electric Fan & 180°F Dual Probe Fan Controller Kit

Description

Our top of the line 16" reversible Tornado fan uses 8 skewed blades, producing a healthy 2175 CFM at 0 static pressure, drawing only 18.4 amps. Kit includes a high quality single stage fan controller with preset 180°F-on and 165°F-off temperature controls and includes both a push-in radiator probe and a 3/8" NPT brass water jacket probe, plus all necessary installation hardware. Made in the USA.

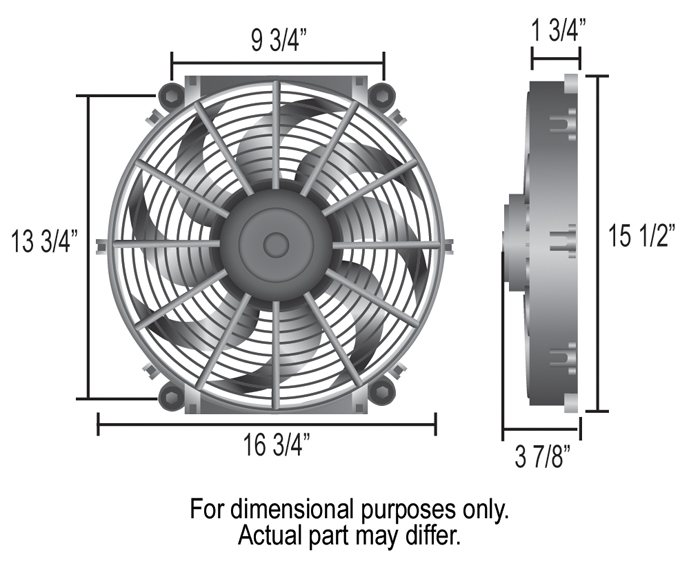

Specifications
  • Fan size: 16"
  • CFM: 2175
  • Amp draw: 18.4
  • Width: 16-3/4"
  • Height: 15-1/2"
  • Depth: 1-3/4"
  • Overall depth: 3-7/8"
  • Mounting: 13-3/4" x 9-3/4"
  • Airflow: Puller (reversible)
Features
  • Reliable, efficient, high torque motors
  • Ultra-quiet patented skewed blade design
  • 2175 CFM
  • Reversible design - can be used as a pusher or puller
  • Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware, and wire connections
