Part Number 16505

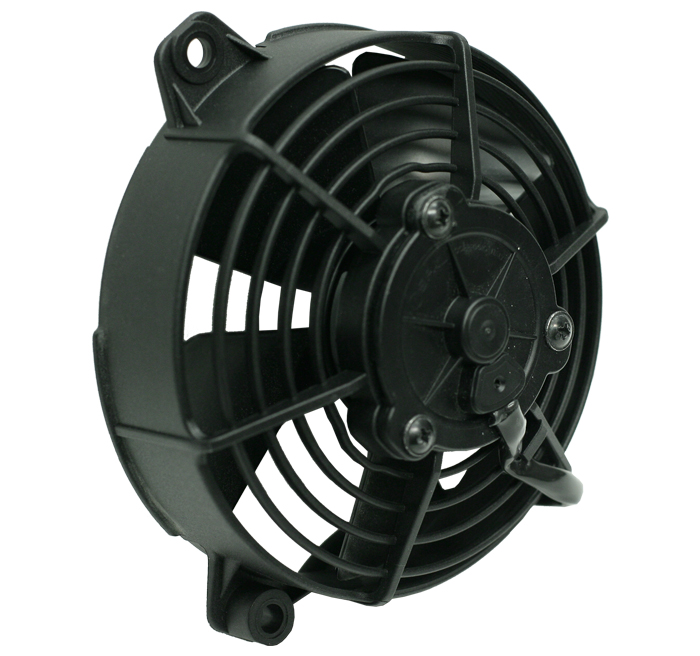

5" Tornado IP68 Electric Puller Fan, Premium Mounting Kit

Description

This 5" diameter fan uses a sealed IP68 certified waterproof & dustproof motor with 5 large, paddle style blades and due to its size a very versatile little puller fan.  Though not reversible, it is popular in multi-industrial applications, from atv's to computers to audio equipment. Fan kit includes everything you will need for a manual switch installation.

Features
  • Reliable, efficient, high torque motors
  • Ultra-quiet patented skewed blade design
  • Long lasting sealed waterproof, dustproof IP-68 certified motor
  • 315 CFM
  • Puller only (engine side)

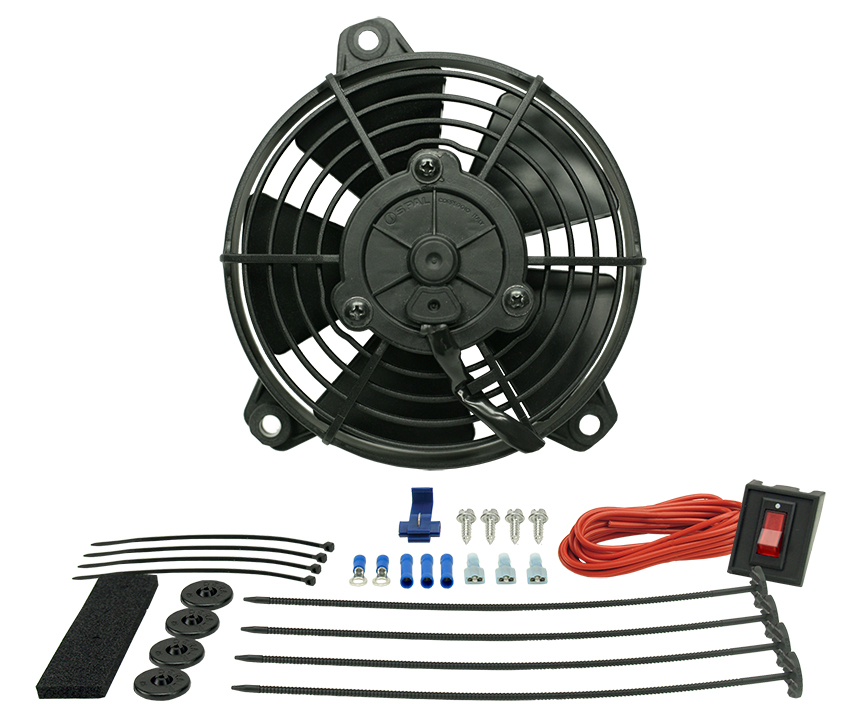

  • Complete with fan kit which includes all mounting hardware, lighted toggle switch, and wire connections
Specifications
  • Fan size: 5"
  • CFM: 315
  • Amp draw: 3.6
  • Width: 5-5/8"
  • Height: 6-1/4"
  • Depth: 1-1/4"
  • Overall depth: 2-1/4"

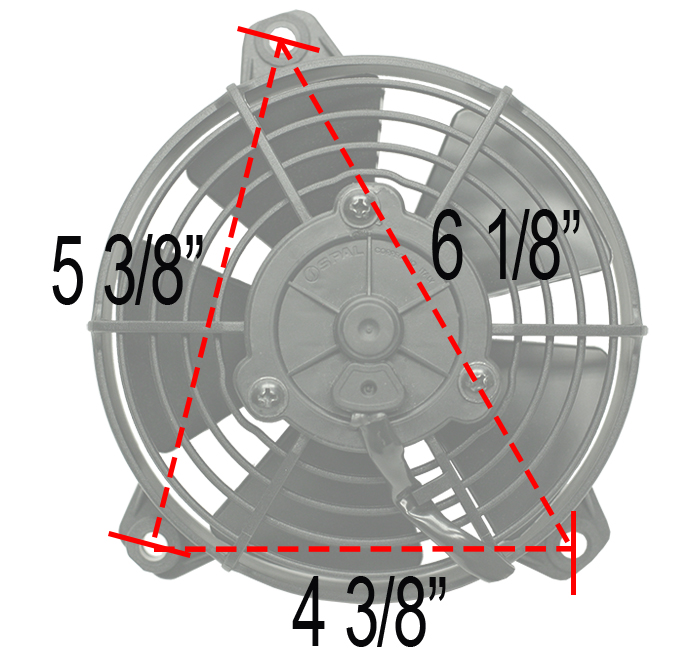

  • Mounting: Three hole mount
    Bottom Hole to Hole Bottom: 4-3/8"
    Left Bottom Hole to Top Hole: 5-3/8"
    Right Bottom Hole to Top Hole: 6-1/8"
  • Airflow: Puller (not reversible)
