Part Number 16509
9'' Tornado Electric Puller Fan, Premium Mounting Kit - W-9-1/2'' x H-9-5/8'' x D-2-1/2''
Description
The 9" reversible Tornado fan uses 8 straight blades, moving 570 CFM at 0 static pressure while drawing only 5.4 amps. Fan kit includes everything you will need for a manual switch installation.
Features
- Reliable, efficient, high torque motors
- Ultra-quiet patented straight blade design
- 570 CFM
- Reversible design - can be used as a pusher or puller

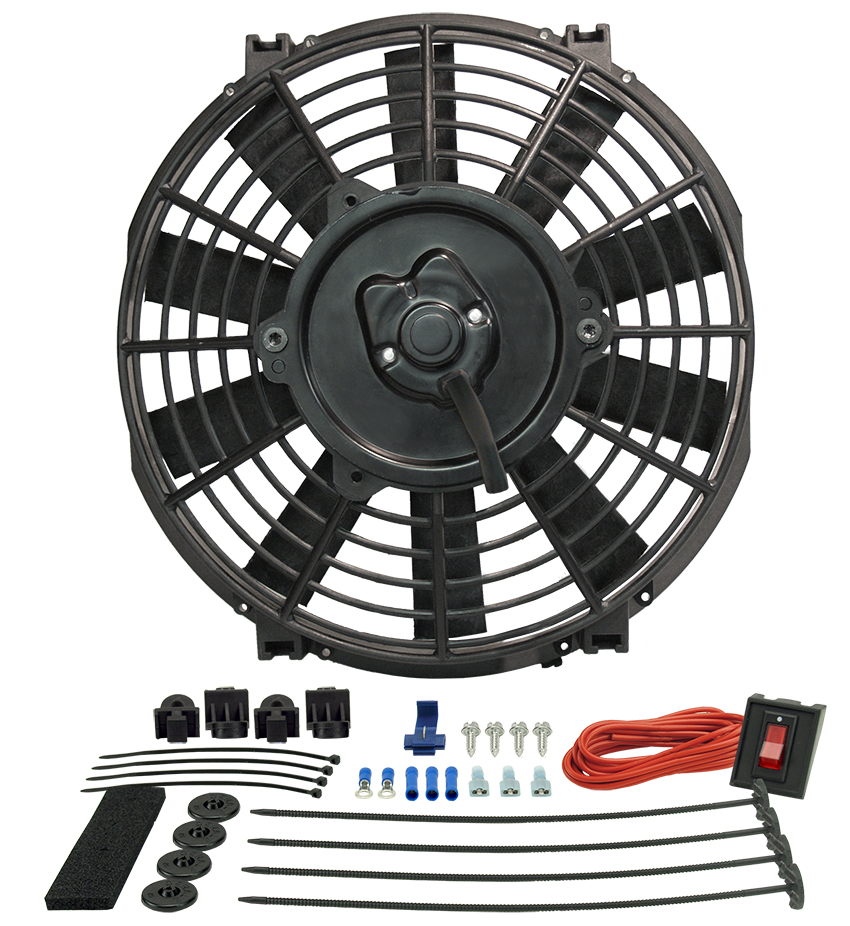

- Complete with fan kit which includes all mounting hardware, lighted toggle switch, and wire connections

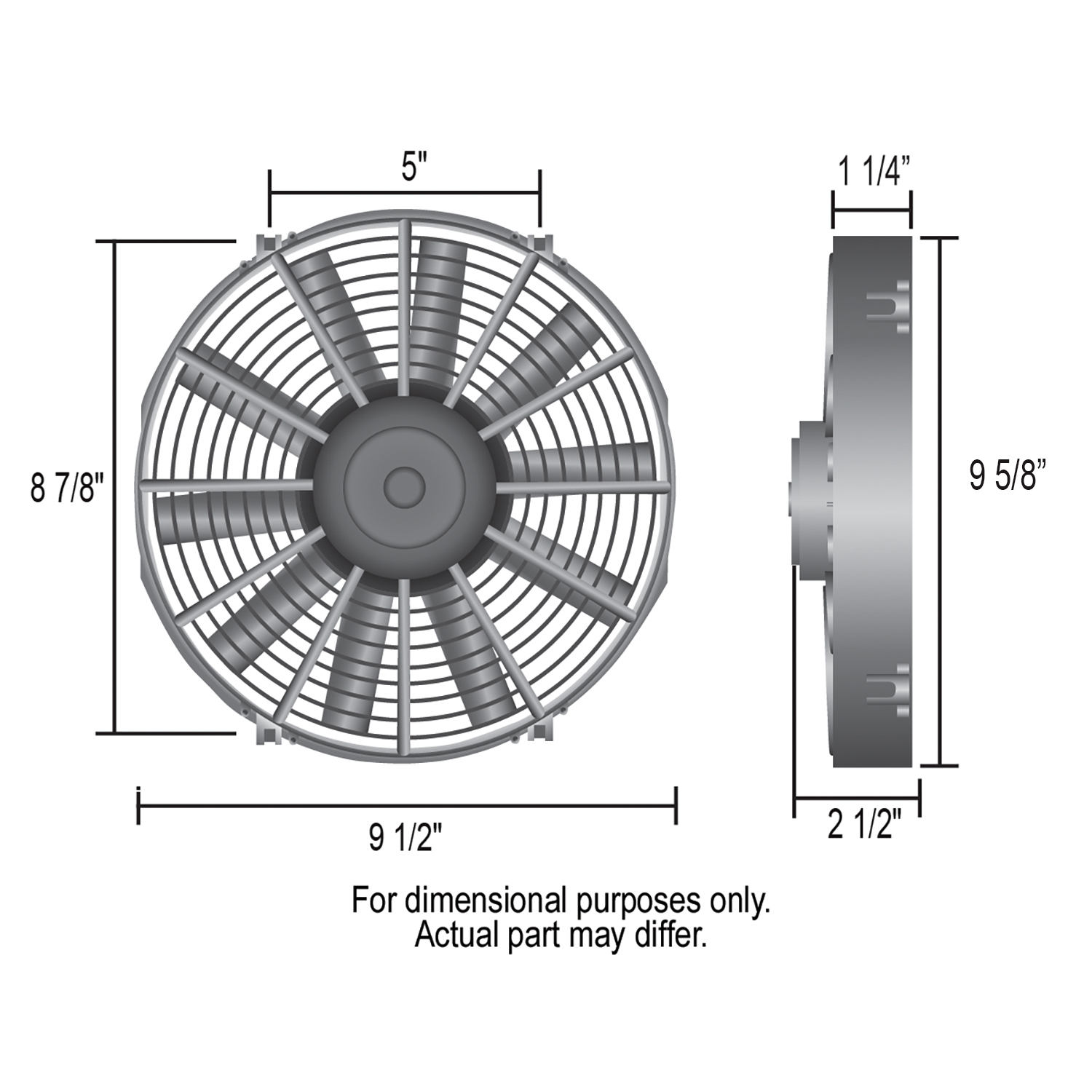

Specifications
- Fan size: 9"
- CFM: 570
- Amp draw: 5.4
- Width: 9-1/2"
- Height: 9-5/8"
- Depth: 1-1/4"
- Overall depth: 2-1/2"
- Mounting: 8-7/8" x 5"
- Airflow: Puller (reversible)
