Part Number 15716

Engine Oil Filter Relocation Kit, 1/2" NPT Ports with 13/16"-16 Engine Thread Size

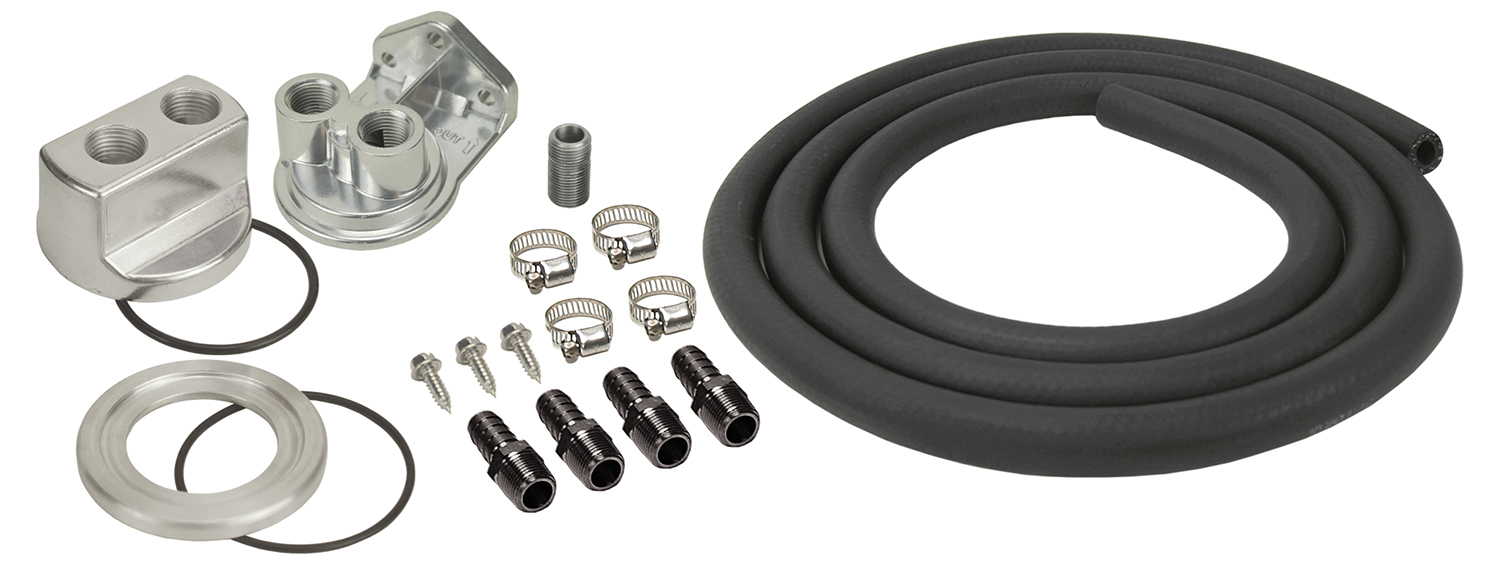

This kit allows oil filter to be relocated to a convenient, easy-access location to accommodate quick, clean filter changes. Includes a high quality, die cast aluminum 1/2" NPT ports up filter mount and 13/16"-16 threaded spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent.

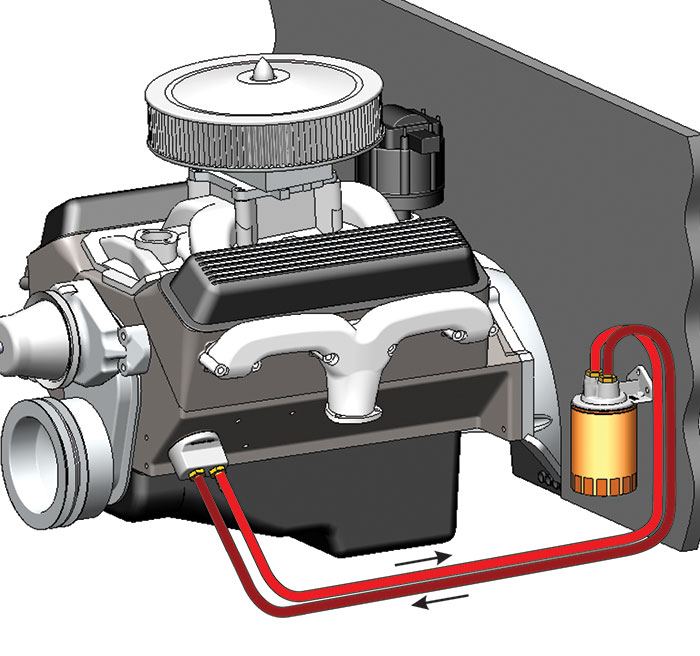

  • Allows for oil filter to be moved to a more convenient location
  • Faster and easier filter changes
  • Ideal for engine swaps
  • Increases oil capacity
  • Single ports-up style filter mount
  • Cast from high quality aluminum
  • 10 ft 1/2" OEM spec hose provided

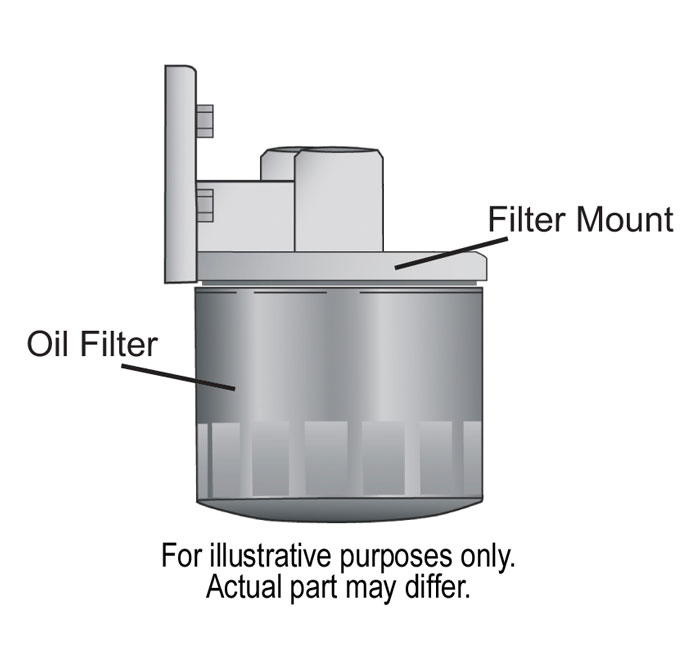

  • Filter mount uses Fram PH8A or equivalent filter

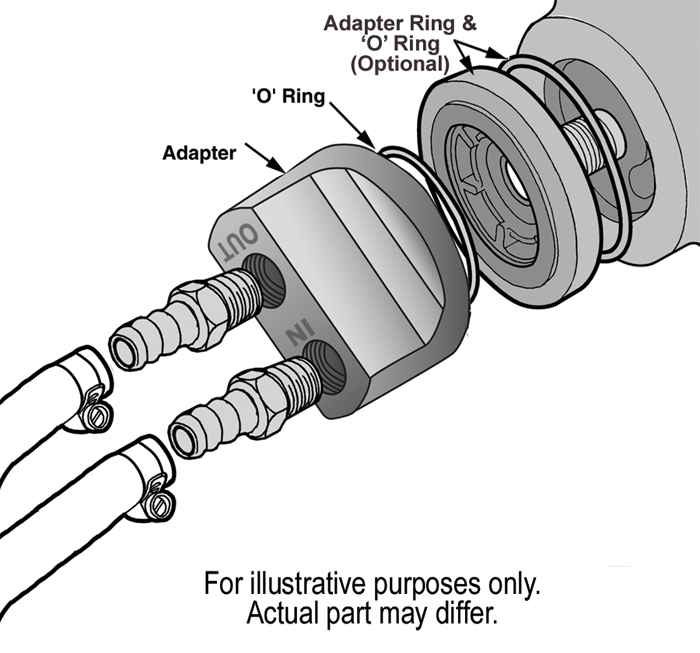

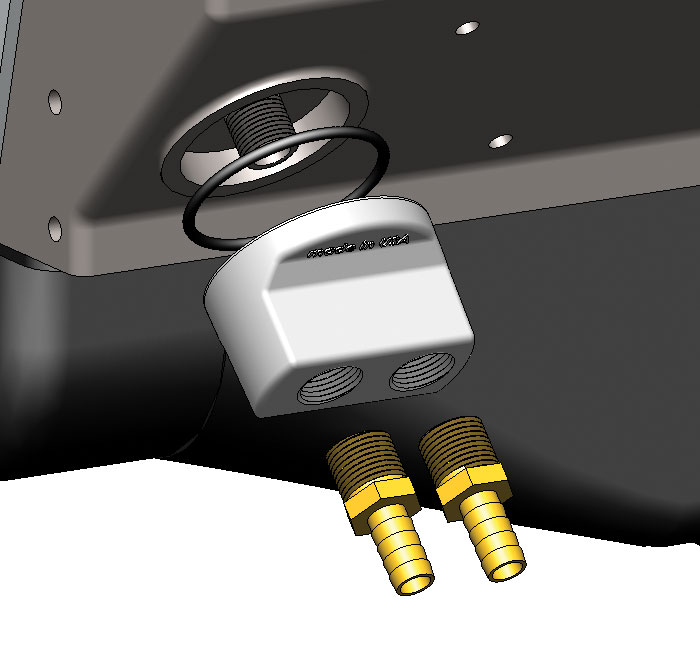

  • Type L Spin-On Adapter with 13/16"-16 thread size *see application guide for specific applications
  • Spin-on adapter type: L

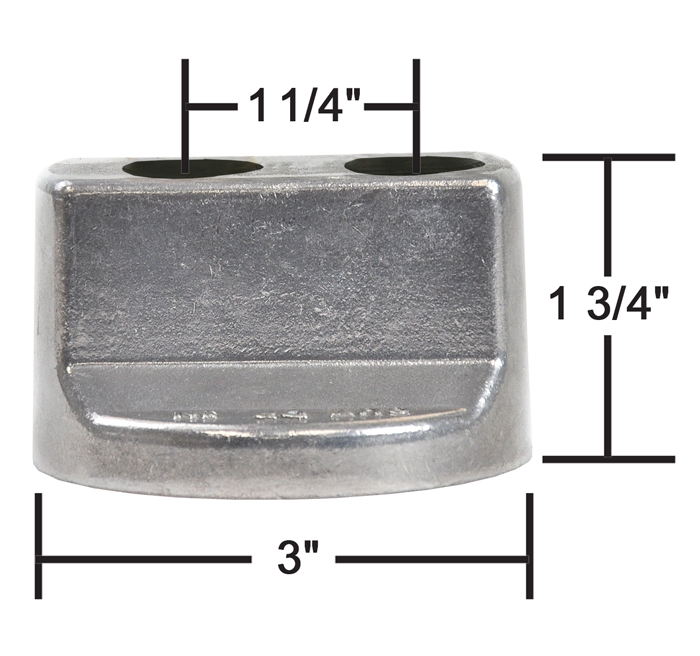

  • Adapter thread size: 13/16"-16
  • Adapter thickness: 1-3/4" or 2"
  • Adapter inlet size: 1/2" NPT
  • Remote filter landing: 2-1/2", 2-3/4" or 3-1/2"
  • Remote filter thread size: 3/4"-16
  • Remote filter inlet size: 1/2" NPT
  • Hose size: 1/2"
  • Hose length: 10'
