Part Number 15725

Engine Oil Filter Relocation Kit, 1/2" NPT Ports with 22x1.5mm Engine Thread Size

Description

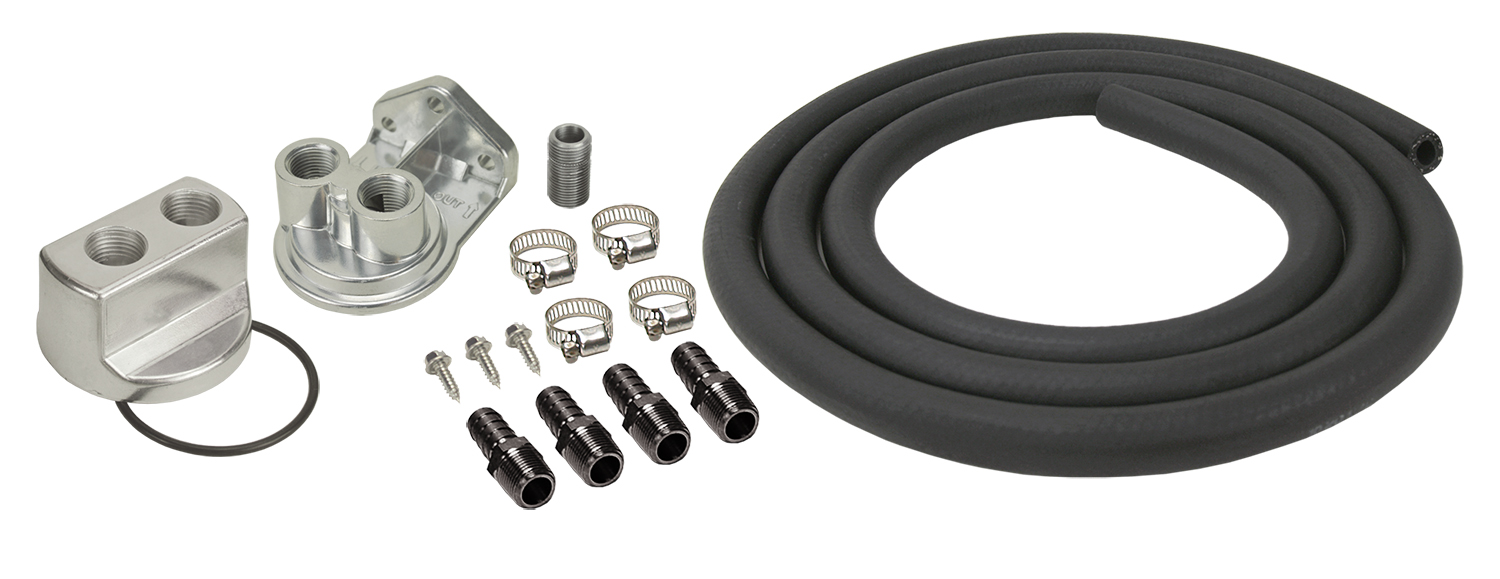

This kit allows oil filter to be relocated to a convenient, easy-access location. Includes a high quality, die cast aluminum 1/2" NPT ports up filter mount and 22mm x 1.5 threaded spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent.

Features

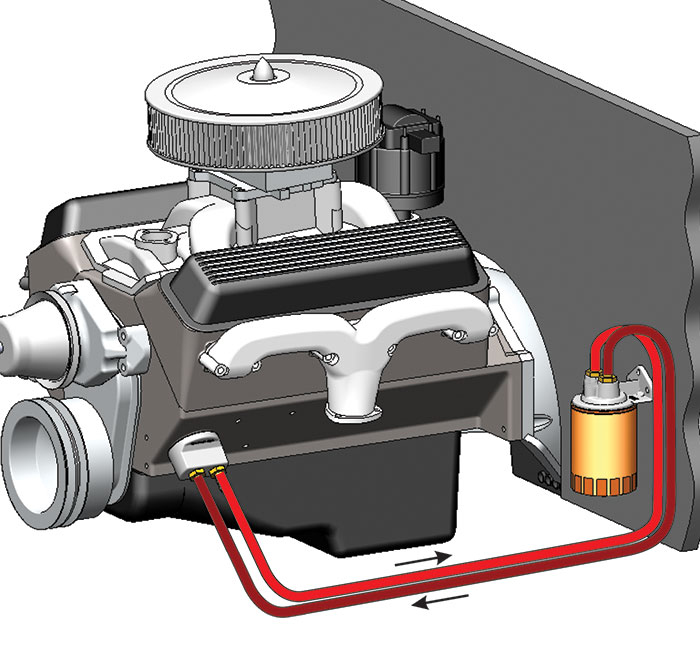

  • Allows for oil filter to be moved to a more convenient location
  • Faster and easier filter changes
  • Ideal for engine swaps
  • Increases oil capacity
  • Single ports-up style filter mount
  • Cast from high quality aluminum
  • 10 ft 1/2" OEM spec hose provided
  • Filter mount uses Fram PH8A or equivalent filter

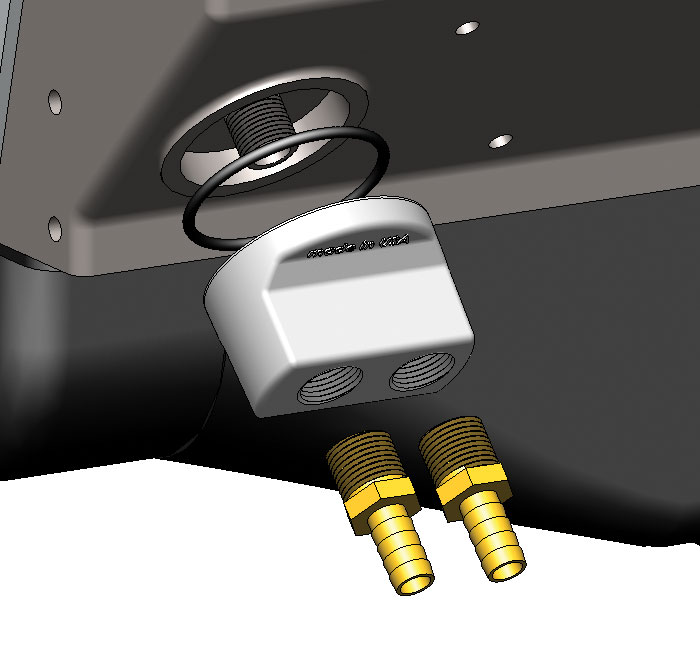

  • Type O Spin-On Adapter with 22 x 1.5mm thread size *see application guide for specific applications
Specifications
  • Spin-on adapter type: O
  • Adapter thread size: 22 x 1.5mm

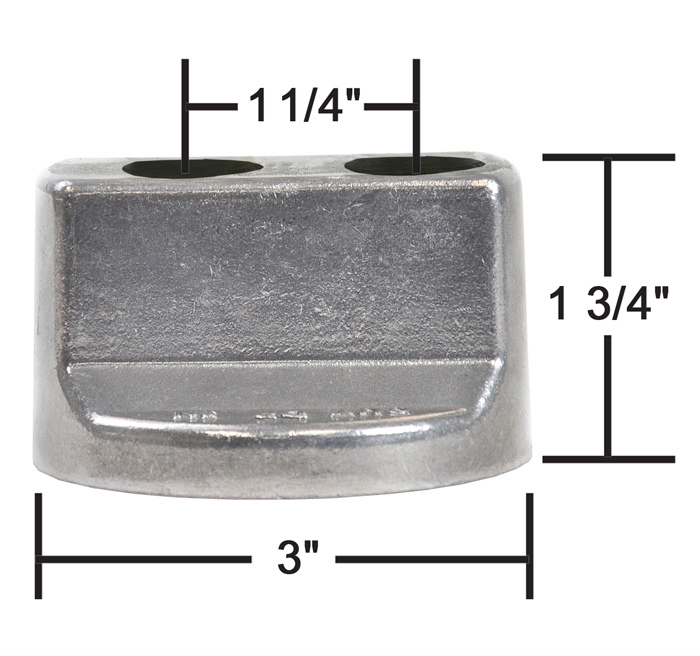

  • Adapter thickness: 1-3/4"
  • Adapter inlet size: 1/2" NPT
  • Remote filter landing: 2-1/2", 2-3/4"
  • Remote filter thread size: 3/4"-16
  • Remote filter inlet size: 1/2" NPT
  • Hose size: 1/2"
  • Hose length: 10'
