Part Number 15780

Single Mount Universal Oil Filter Relocation Kit, 1/2'' NPT Side Ports, 3/4''-16 Filter Thread

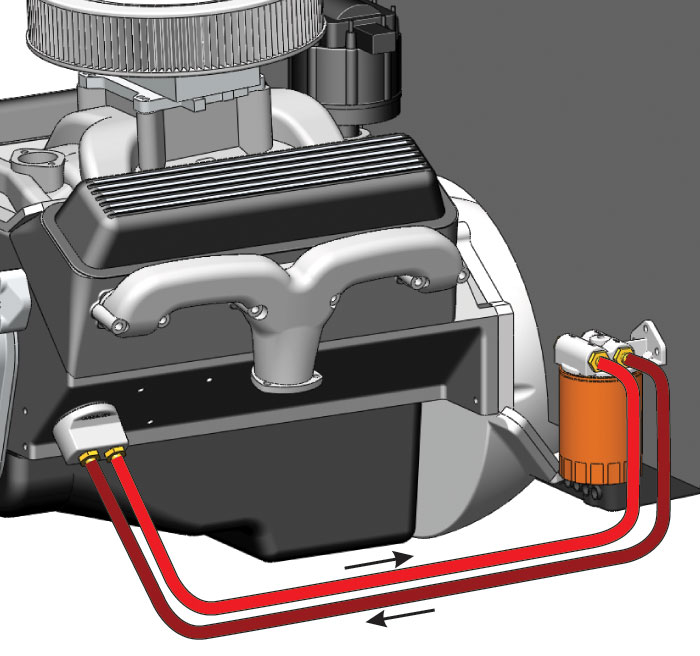

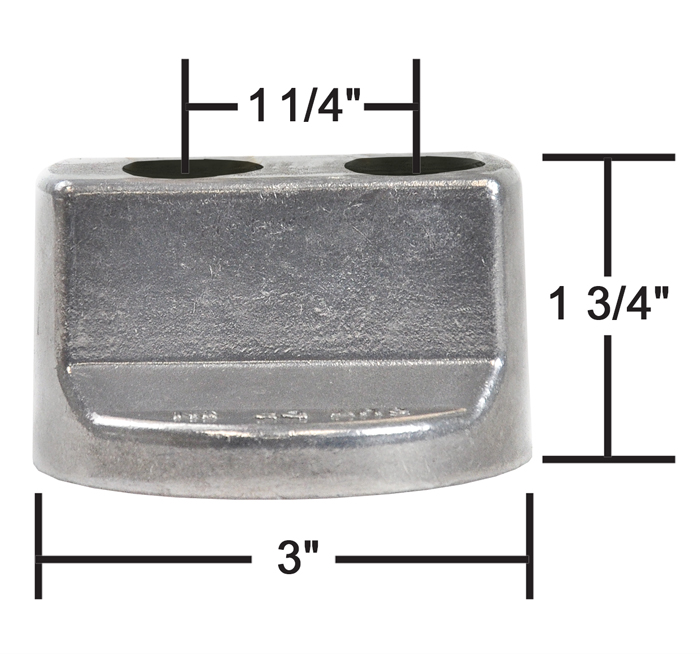

This Universal single mount filter kit allows oil filter to be relocated to a convenient, easy-access location. Includes a high quality, die cast aluminum 1/2" NPT ports-up filter mount and a 1/2" NPT ports up spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent, using a 3/4-16 filter thread. Designed to fit most passenger vehicles on the road today with 2 1/2" to 3 1/2" oil filter landings. Spin-on adapters provide external oil lines to allow the addition of an engine oil cooler and/or remote filter mount, installing at the stock engine oil filter location. This all-new version has a billet style look and has an ultra-bright, polished appearance.

  • High quality aluminum casting
  • 1/2" NPT ports
  • 3/4"-16 filter thread
  • 3/4"-16, 13/16"-16, 18x1.5mm, 20 x 1.5mm, 22 x 1.5mm engine thread sizes

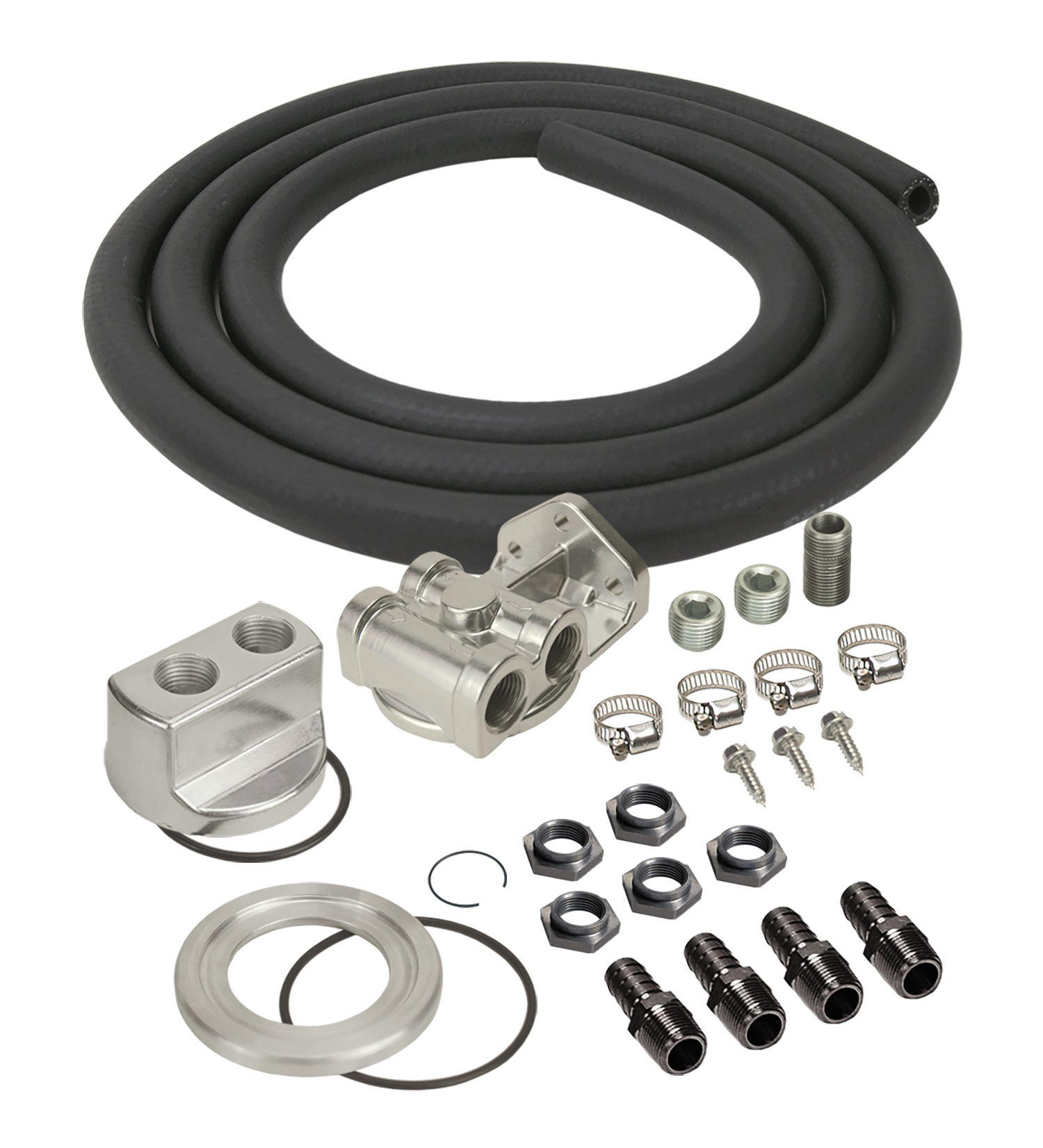

  • Complete Kit includes 1/2" hose barb fittings, spin on adapter, side ports filter mount, filter adapter ring, threaded nipple, O-rings, 1/2" NPT plugs and mounting screws
