Part Number 15702

Universal Thermostatic Sandwich Adapter Kit with 3/8" NPT Ports

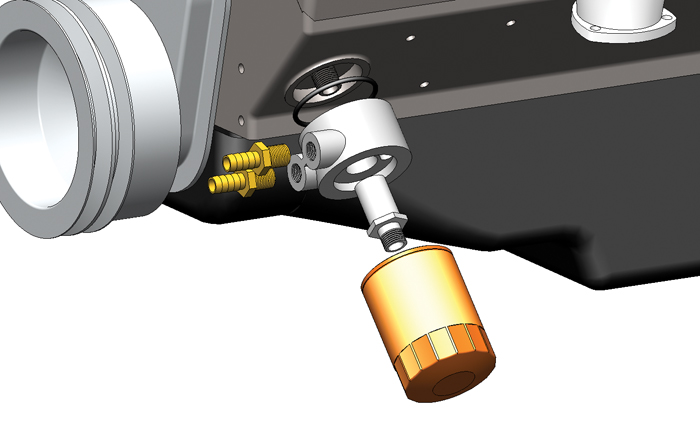

This universal kit is manufactured of high-quality die-cast aluminum and includes an 180°F thermostatic sandwich adapter with 3/8" NPT ports and an O-ring diameter of 2 3/4". A sandwich adapter provides external oil lines to allow the addition of an engine oil cooler. It installs between the stock engine oil filter landing and the oil filter. Kit includes sleeve nuts and hose barb fittings.

  • Sandwich Adapter type: B
  • Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
  • Adapter o-ring size: 2-3/4"
  • Adapter thickness: 1-3/4"
  • Adapter inlet size: 3/8" NPT
  • Barb size: 1/2"
  • Provides external oil lines for oil coolers without relocating the factory oil filter
  • Cast form high quality aluminum
  • Maintain factory equivalent oil filter
  • Type B Sandwich Adapter with 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm thread sizes, fits most applications *see application guide for specific applications

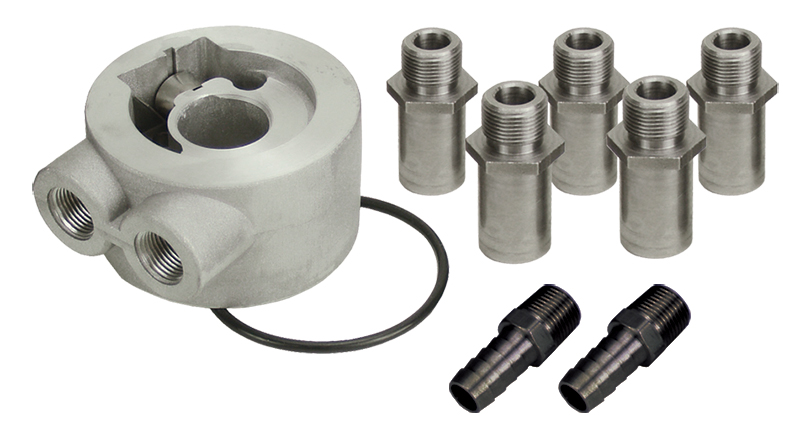

  • Complete Kit includes 1/2" hose barb fittings, sandwich adapter, sleeve nuts & O-ring
