Part Number 13090

Single Mount 3/8'' NPT Ports Up Remote Transmission Filter Kit, Standard

Description

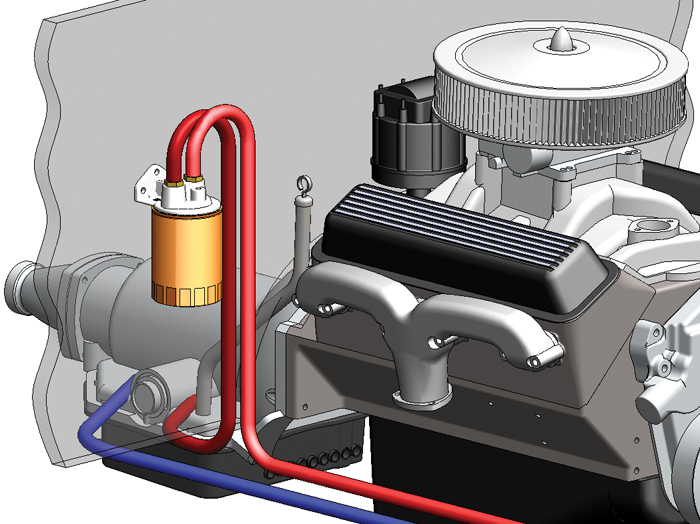

Our universal remote transmission filter kits enable quick and efficient filter changes and filter out contaminants that pass through OE-screen type filters. Another benefit is the increased fluid capacity which effectively cools fluid temperatures moderately and help extend the life of the transmission.

Specifications
  • Nominal Micron Rating: 21
  • By-Pass Valve Setting-PSI: 8-11
  • Anti-Drain Back Valve: Yes
  • Burst Pressure-PSI: 340
  • Max Flow Rate: 7-9 GPM
  • Filter Dimensions: 3-1/2" OD x 3-7/8"
  • Filter thread size: 3/4"-16
  • Filter landing: 2-1/2" to 3-1/2"
  • Inlet size: 3/8" NPT
  • Barb size: 3/8"
  • Hose size: 3/8"
  • Hose length: 4'
Features
  • Extends life of transmission
  • Filters out contaminants more efficiently than OE screen type filters
  • Universal - fits all automatic transmissions
  • Increases fluid capacity

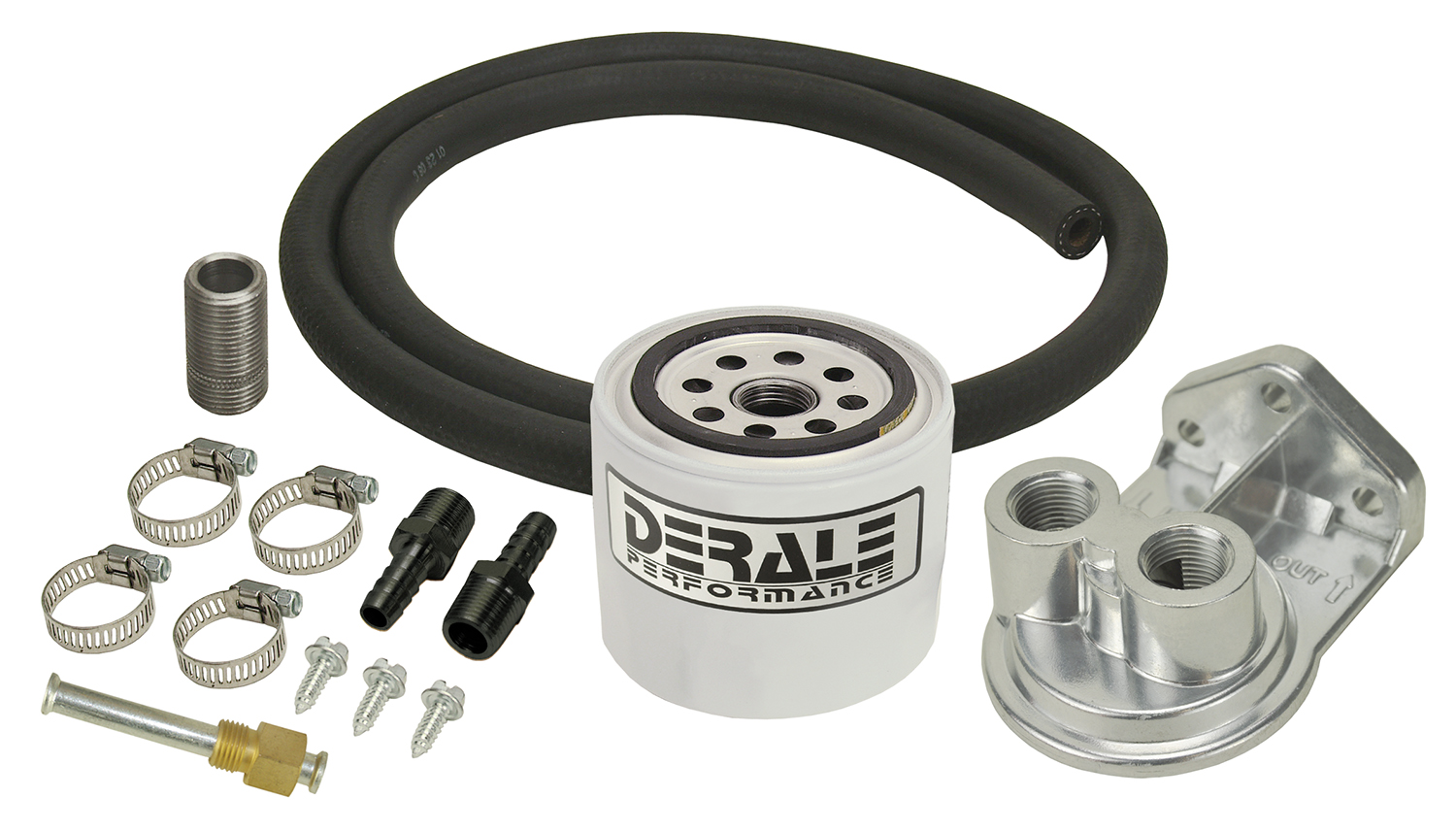

  • Standard kit includes all remote filter mount, 4' hose, filter and mounting hardware
