Part Number 20542

Direct Fit 2011-2014 Ford Mustang GT 5.0 Engine Oil Cooler Kit

Description

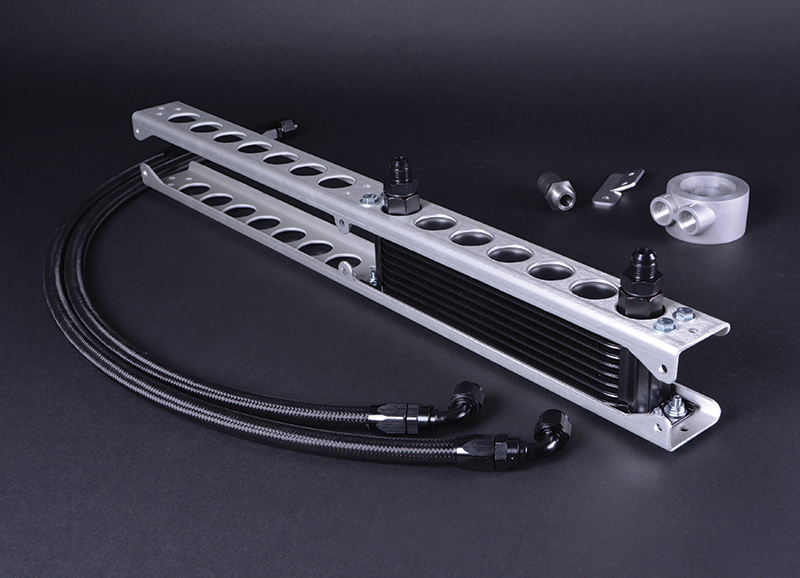

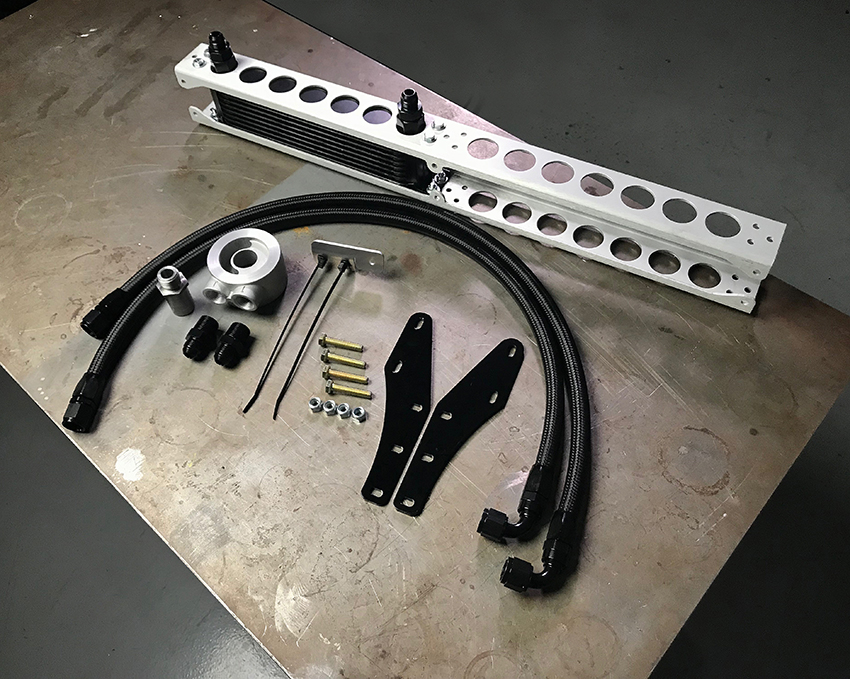

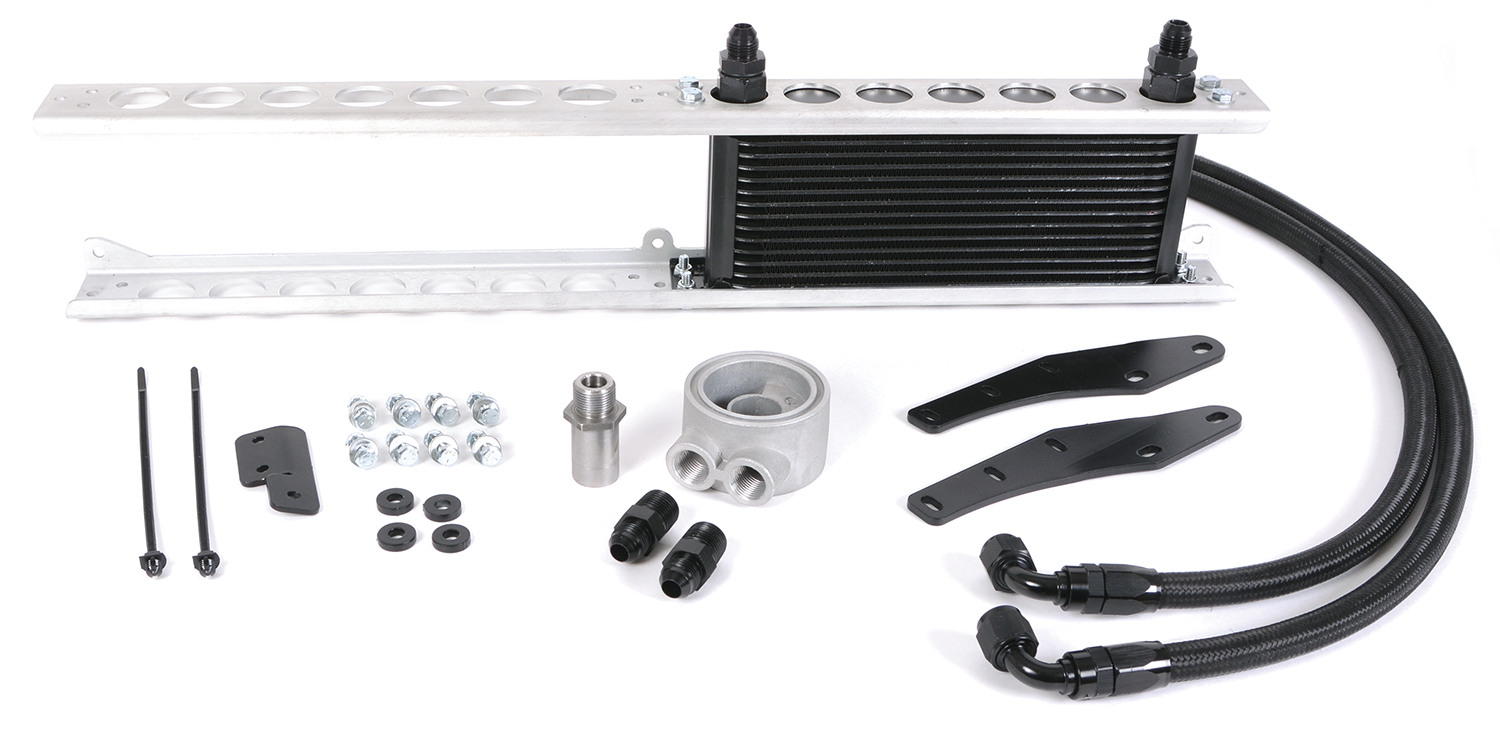

Derale Performance introduces the latest fluid cooling kits designed for the 2011-2014 Ford Mustang GT 5.0. This Stacked Plate Cooler kit comes with all necessary hardware to mount a 16 row stacked plated cooler to the factory crash bar. The cooler sits directly behind the lower grille opening for maximum airflow. The steel braided lines are pre-cut to length for an even faster install. Brackets allow for an additional fluid cooler to be mounted.

Features
  • Designed for fast, easy, bolt on engine oil cooling
  • Most efficient heat exchanger available
  • Furnace brazed aluminum construction
  • Cooler: 16 row design
  • 32,000 BTU's Per Hour
  • Brackets and cooler mounts to factory crash bar
  • Pre-cut steel braided lines for fast installation
  • Includes sandwich adapter, sleeve nuts & O-ring
  • Derale coolers are rated at 250psi working pressure and 300psi burst strength
Specifications
  • Bracket Length: 27 7/8"
  • Bracket Width: 2 3/8"
  • Height with 10 Row Cooler and Fittings Installed: 7 1/8"
  • Inlet size: -8AN
  • Aluminum Brackets
  • 16 Row Stacked Plate Cooler
  •  -8AN Aluminum Fittings
  • Black steel braided lines
  • Sandwich adapter and fittings
  • Mounting brackets
  • Hose bracket
  • All necessary hardware included
  • 10oz additional fluid capacity
