Part Number 13401

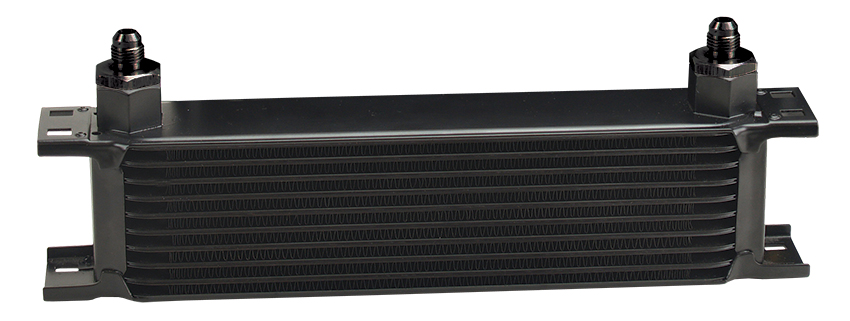

10 Row Series 10000 Stack Plate Transmission Cooler Kit
Description
With our top of the line 10 Row Stack Plate cooler, -6AN aluminum fittings and hose barb adapters, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications
- Cooler style: Stacked Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -6AN male
- Fitting size: 3/8" barb

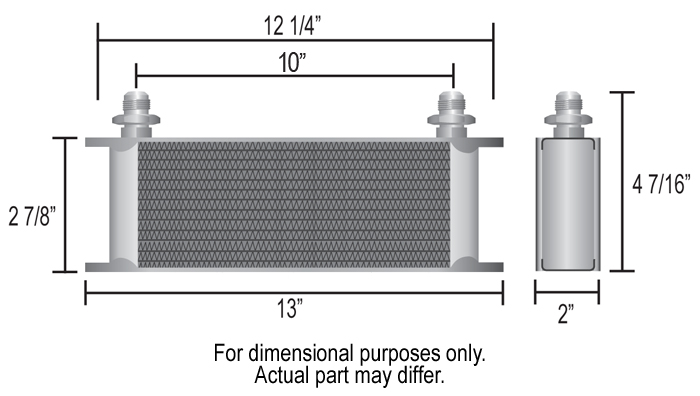

- Width: 13"
- Height: 4-7/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 2-7/8"
- Hose size: 3/8"
- Hose length: 4'
- 20,000 BTU's Per Hour
- 6oz Additional Fluid Capacity
Features
- Built in turbulators agitate fluid for maximum heat transfer
- Sturdy furnace brazed all aluminum construction tested to 250 p.s.i.
- 10 row cooler design
- Male -6AN aluminum O-ring inlet fittings & 3/8" hose barb adapters included

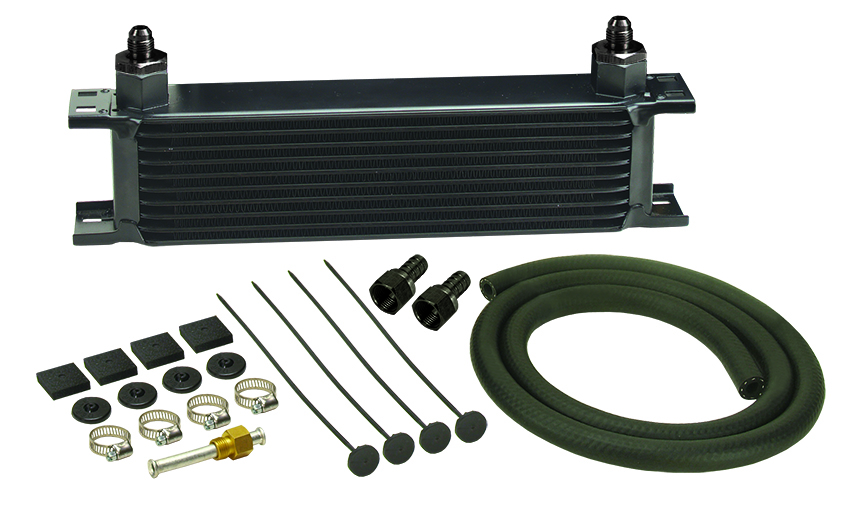

- Complete hardware kit included
- 20,000 BTU's Per Hour
