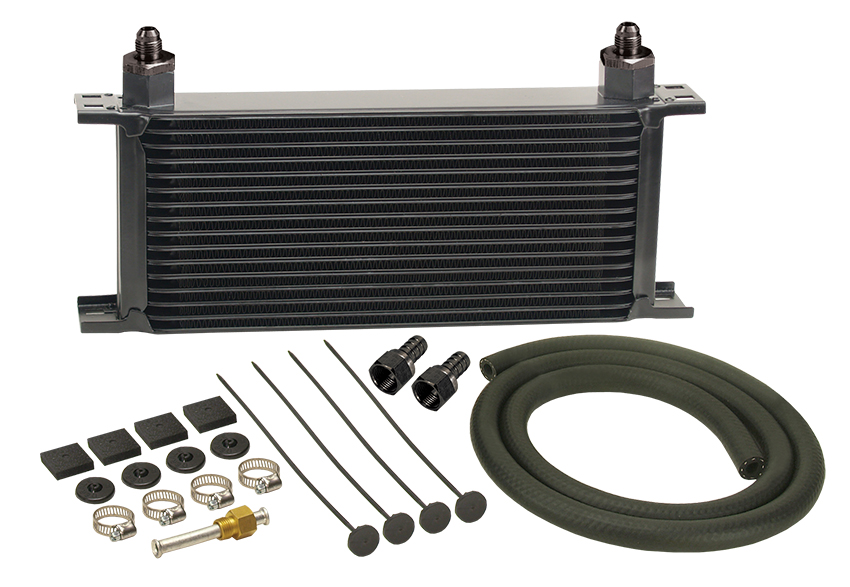

16 Row Series 10000 Stack Plate Transmission Cooler Kit

Series 10000 Stack Plate Transmission Cooler Kit, -6AN 13402

With our top of the line 16 Row Stack Plate cooler, -6AN aluminum fittings and hose barb adapters, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

  • Cooler style: Stacked Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -6AN male
  • Fitting size: 3/8" barb

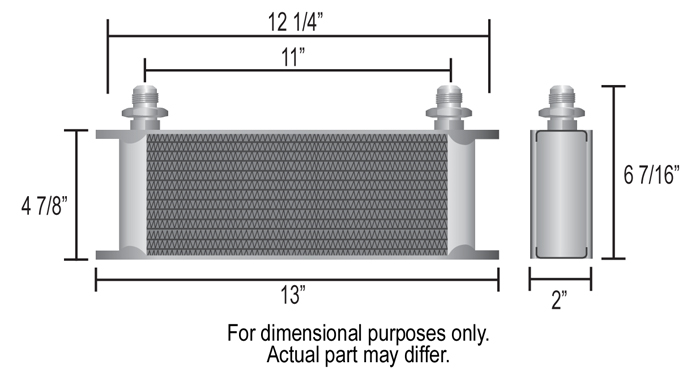

  • Width: 13"
  • Height: 6-7/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x 4-7/8"
  • Hose size: 3/8"
  • Hose length: 4'
  • 10oz. Additional Fluid Capacity
  • Built in turbulators agitate fluid for maximum heat transfer
  • Sturdy furnace brazed all aluminum construction
  • High efficiency Stacked Plate 16 row cooler
  • Male -6AN aluminum O-ring inlet fittings & 3/8" hose barb adapters included
  • Complete hardware kit included
  • 32,000 BTU's Per Hour
  • Derale coolers are rated at 250psi working pressure and 300psi burst strength
