Part Number 13403

19 Row Series 10000 Stack Plate Transmission Cooler Kit

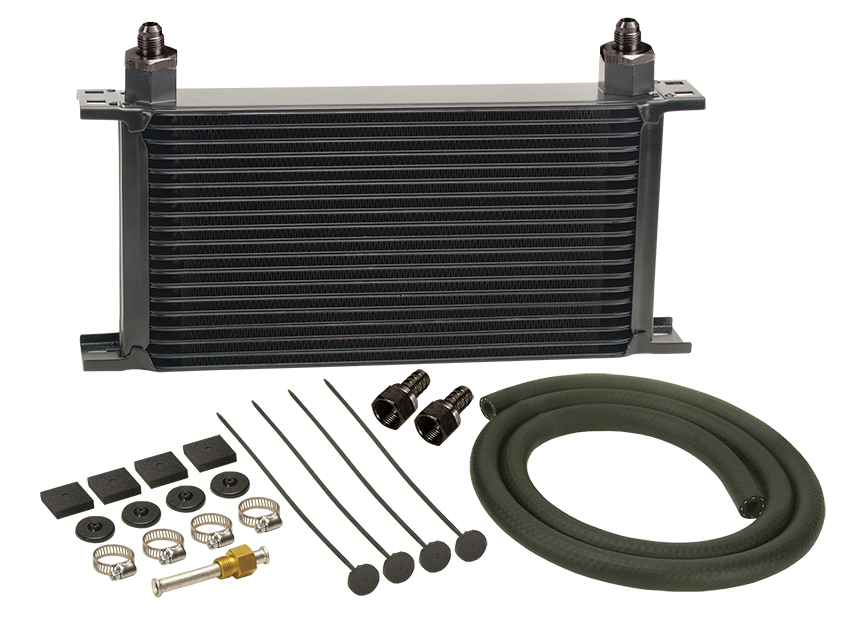

With our top of the line 19 Row Stack Plate cooler, -6AN aluminum fittings and hose barb adapters, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -6AN male

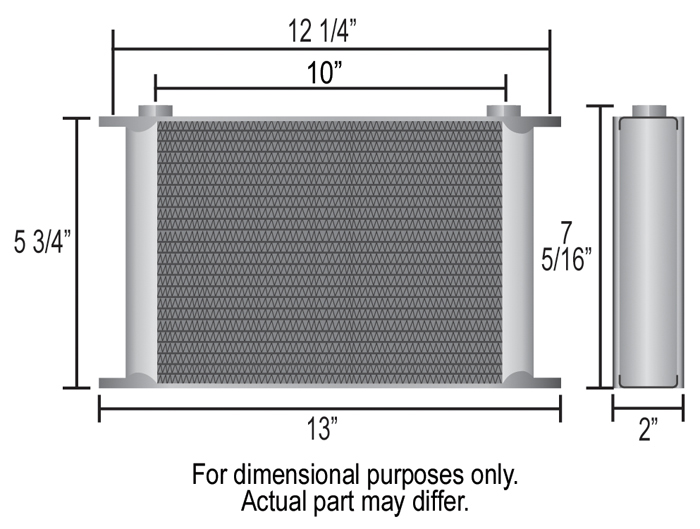

  • Width: 13"
  • Height: 7-5/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x5-3/4"
  • 37,000 BTU's Per Hour
  • Derale coolers are rated at 250psi working pressure and 300psi burst strength
  • 12oz additional fluid capacity
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • 19 row cooler design
  • Male -6AN aluminum O-ring inlet fittings & 3/8" hose barb adapters included
  • Complete hardware kit included
