Part Number 13413

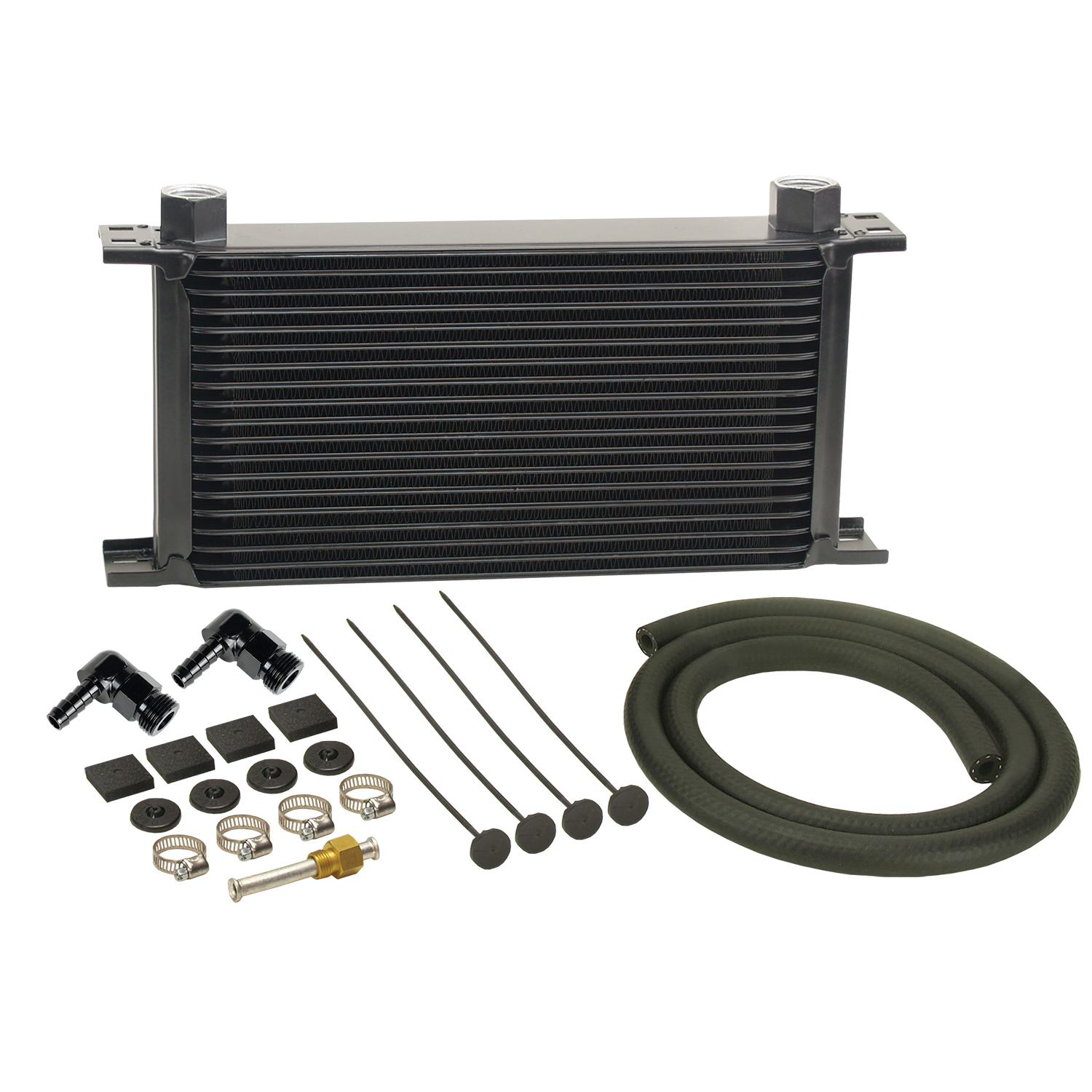

19 Row Series 10000 Stack Plate Transmission Cooler Kit, 90° x 3/8 Hose Barb Fittings
Description
With our top of the line 19 Row Stack Plate cooler, 90° x 3/8 Hose Barb Fittings, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications
- Cooler style: Stacked Plate
- Construction: Aluminum
- Fitting size: 90° x 3/8 Hose Barb Fittings
- Fitting size: 3/8" barb

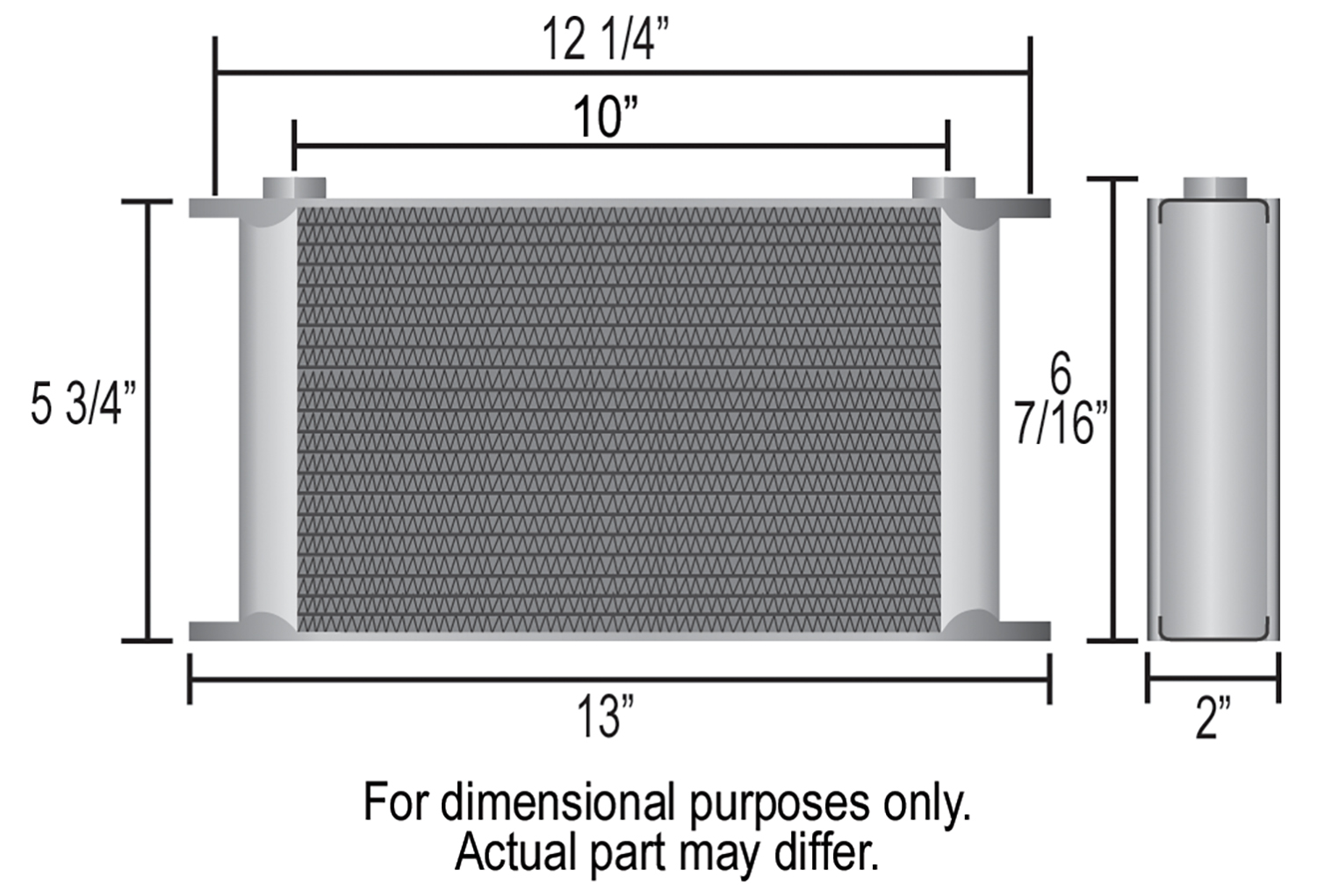

- Width: 13"
- Height: 6-7/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 5-3/4"
- 37,000 BTU's Per Hour
- Hose size: 3/8"
- Hose length: 4'
Features
- Built in turbulators agitate fluid for maximum heat transfer
- Sturdy furnace brazed all aluminum construction tested to 250 p.s.i.
- 19 row cooler design
- 90° x 3/8 Hose Barb Fittings included
- Complete hardware kit included
