19 Row Series 10000 Stack Plate Cooler, -10AN O-ring Female
Stack Plate 19 Row Cooler, -10AN O-ring Female 51978
Description
Our most efficient heat exchanger, the all aluminum 19 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 19 row cooler design
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN UNF o-ring female

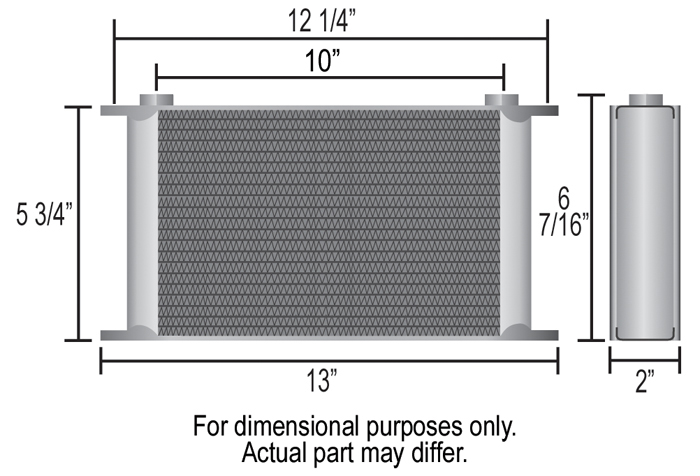

- Width: 13"
- Height: 6-7/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 5-3/4"
- 37,000 BTU's Per Hour
- Fluid Capacity: 12oz
