Part Number 52578
25 Row Series 10000 Stack Plate Cooler, -10AN O-ring Female
Description
Our most efficient heat exchanger, the all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 25 row cooler design
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN UNF o-ring female

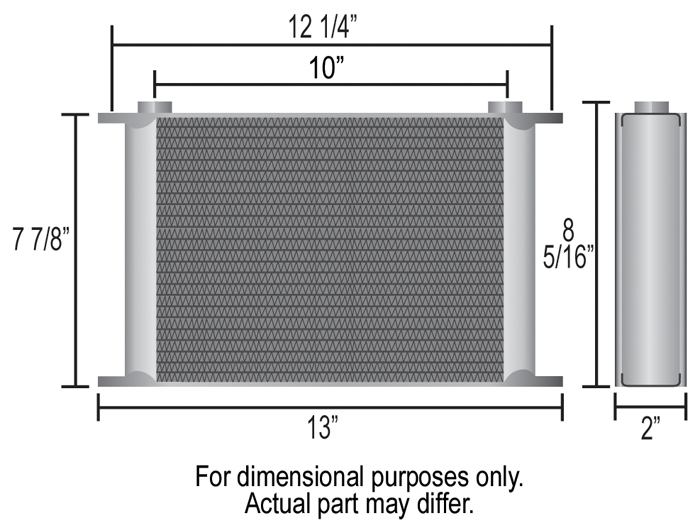

- Width: 13"
- Height: 8-5/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 7-5/8"
- 46,000 BTU's Per Hour
- Fluid Capacity: 16oz
