Part Number 51982

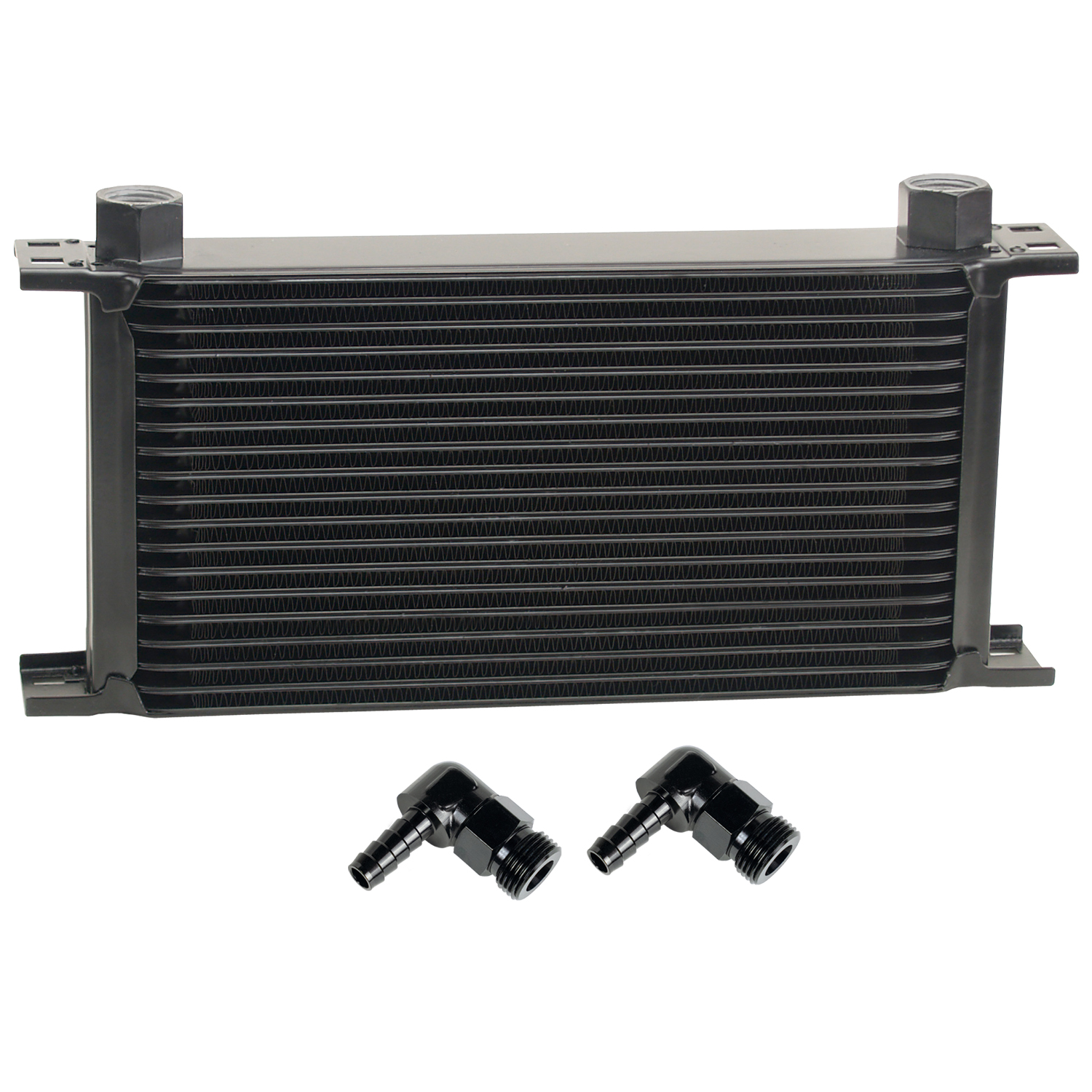

19 Row Series 10000 Stack Plate Cooler, 90° x 1/2 Hose Barb Fitting

Description

Our most efficient heat exchanger, the all aluminum 19 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished 90° x 1/2 Hose Barb Fittings.

Features
  • Designed for engine and transmission cooling
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • 19 row cooler design
  • 90° x 1/2 Hose Barb Fittings
  • 37,000 BTU's Per Hour
Specifications
  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Fitting size: 90° x 1/2 Hose Barb

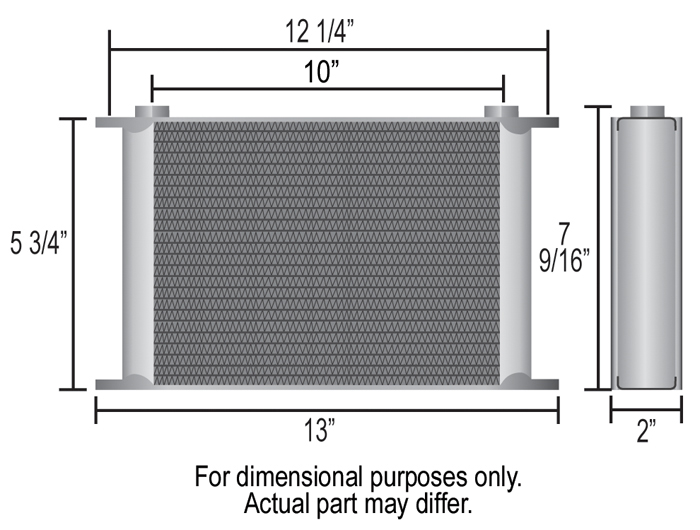

  • Width: 13"
  • Height: 7-9/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x 5-3/4"
  • 37,000 BTU's Per Hour
