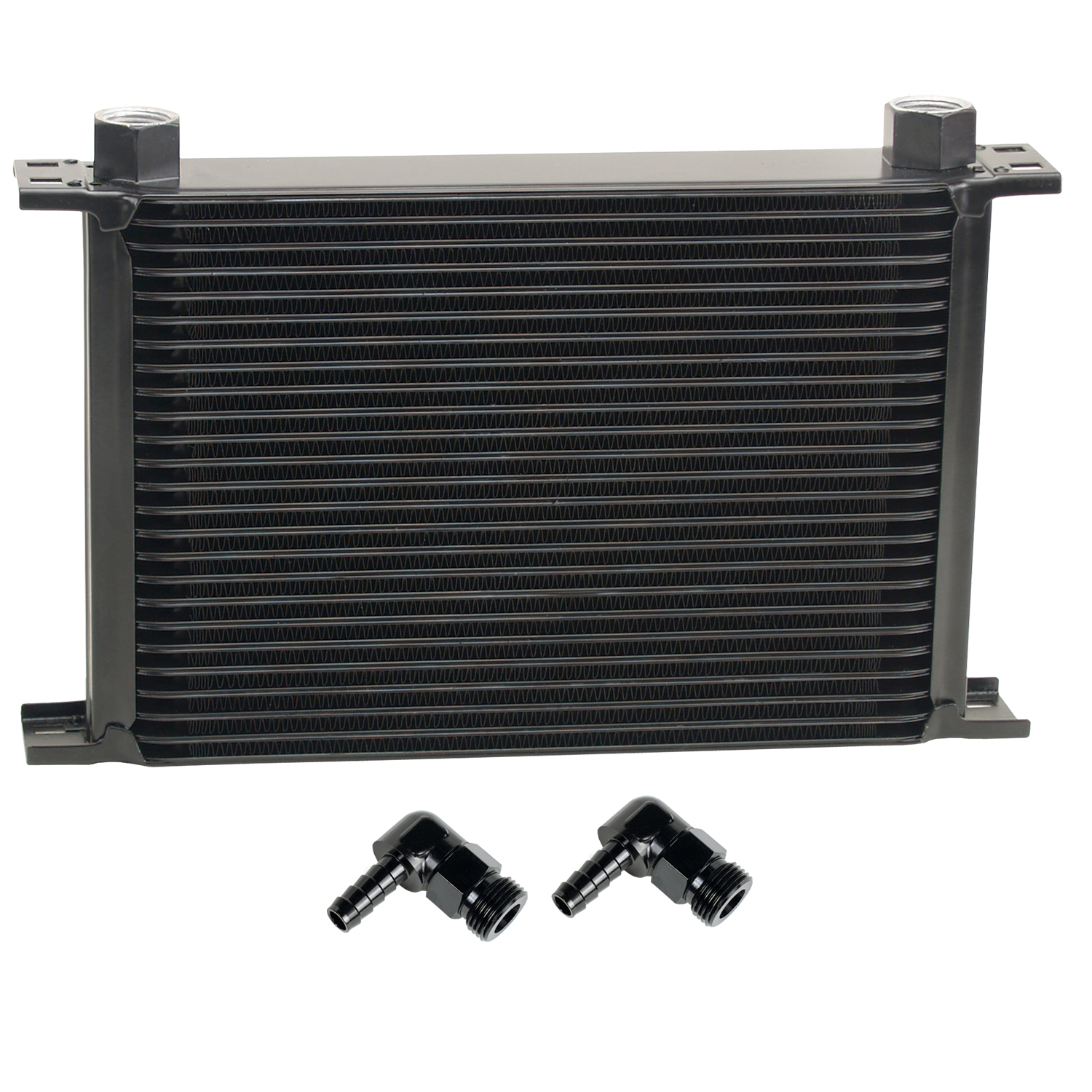

Part Number 52582
25 Row Series 10000 Stack Plate Cooler, 90° x 1/2 Hose Barb Fitting
Description
Our most efficient heat exchanger, the all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum 90° x 1/2 Hose Barb Fittings.
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 25 row cooler design
- 90° x 1/2 Hose Barb Fittings
- 46,000 BTU's Per Hour
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Fitting size: 90° x 1/2 Hose Barb

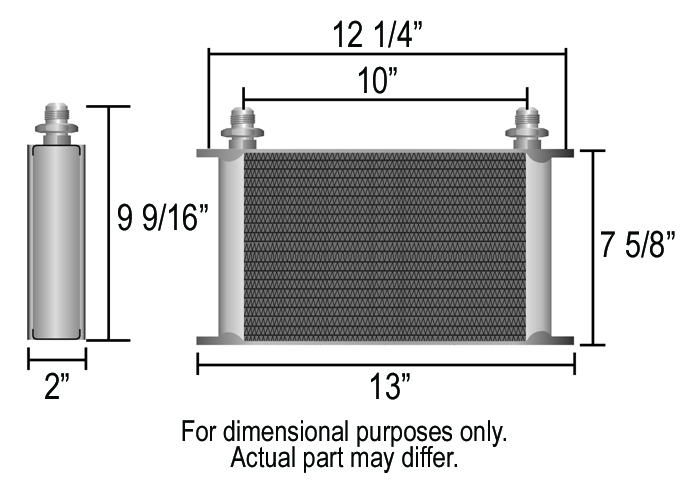

- Width: 13"
- Height: 9-9/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 7-5/8"
- 46,000 BTU's Per Hour
