Part Number 54080
40 Row Series 10000 Stack Plate Cooler, 90° -10AN Fittings
Description

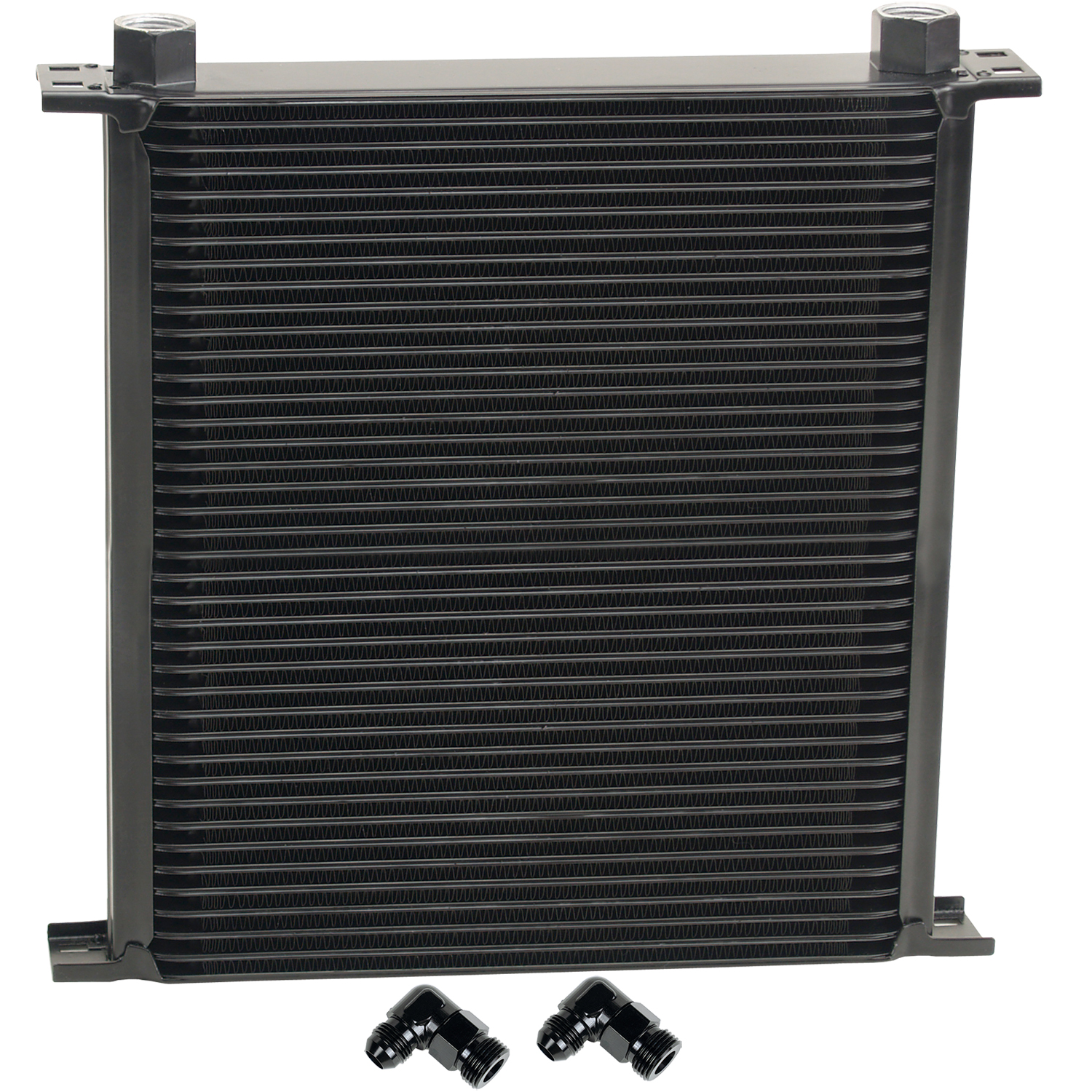

Our most efficient heat exchanger, the all aluminum 40 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum 90° -10AN male adapter fittings.
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 40 row cooler design
- 90° -10AN male adapter fittings
- 67,000 BTU's Per Hour
- 26oz additional fluid capacity

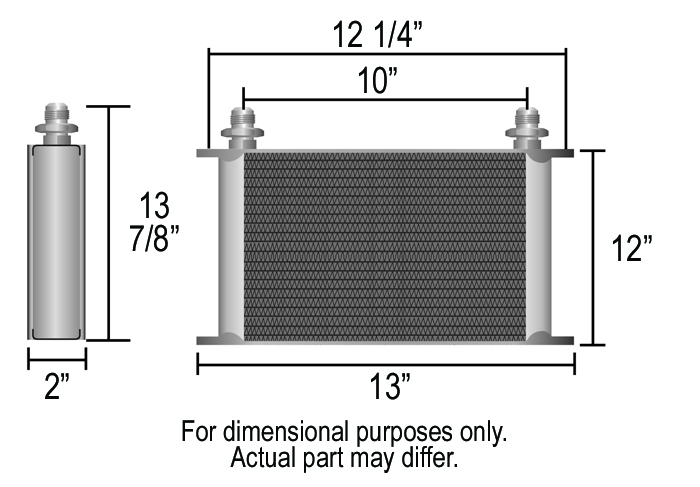

Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Fitting size: 90° -10AN male adapter fittings
- Width: 13"
- Height: 13-7/8"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 12"
- 67,000 BTU's Per Hour
