10 Row Series 10000 Stack Plate Universal Engine Oil Cooler Kit, Sandwich Adapter
Stack Plate Engine Oil Cooler Kit, Sandwich Adapter 15602
Description
Featuring our top-of-the-line 10 row Stack Plate cooler, this unit is perfect for mild to wild street applications. The oven-brazed all-aluminum oil cooler can not only reduce oil temperatures to help extend the life of lower end components and oil life, it also helps reduce coolant temperatures. This universal kit includes 180°F thermostatic sandwich adapter, hose and everything you need to install on most passenger vehicles.
Specifications
- Kit includes Derale 51008 cooler
- Cooler style: Stacked Plate
- Cooler construction: Aluminum
- Cooler inlet size: -8AN

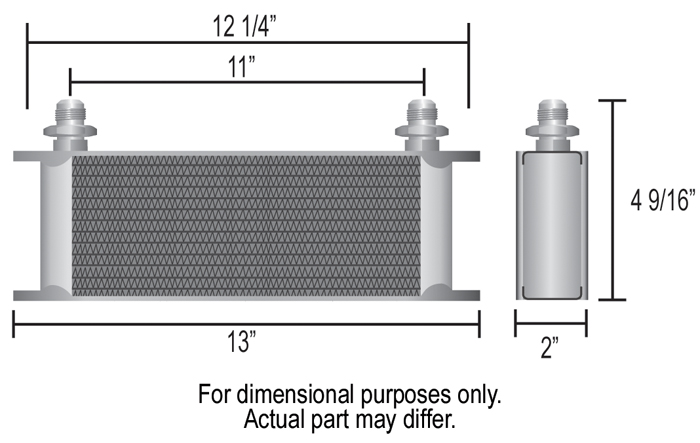

- Cooler width: 13"
- Cooler height: 4-9/16"
- Cooler depth: 2"
- Cooler inlet dim: 11"
- Cooler mounting: 12-1/4"

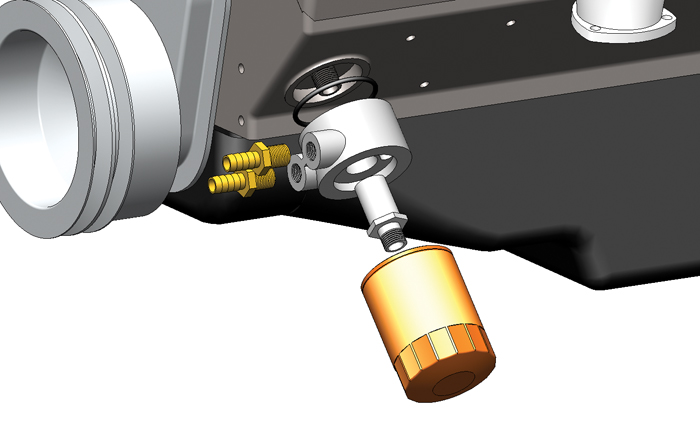

- Sandwich Adapter type: B
- Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
- Adapter o-ring size: 2-3/4"
- Adapter thickness: 1-3/4"
- Adapter inlet size: 3/8" NPT
- Hose size: 1/2"
- Hose length: 10'
- 6oz. Additional Fluid Capacity
Features
- Can reduce engine oil temp up to 50°F
- Helps reduce coolant temperatures
- Extends engine life
- Type B Sandwich Adapter fits most applications *see application guide for specific applications
- Complete hardware kit included
- Cooler is rated at 250psi working pressure and 300psi burst strength
- Cooler is rated at 20,000 BTU's per hour
