10 Row Series 10000 Stack Plate Universal Engine Oil Cooler Kit, Low Profile Sandwich Adapter
Stack Plate Engine Cooler Kit, Sandwich Adapter 15604
Description

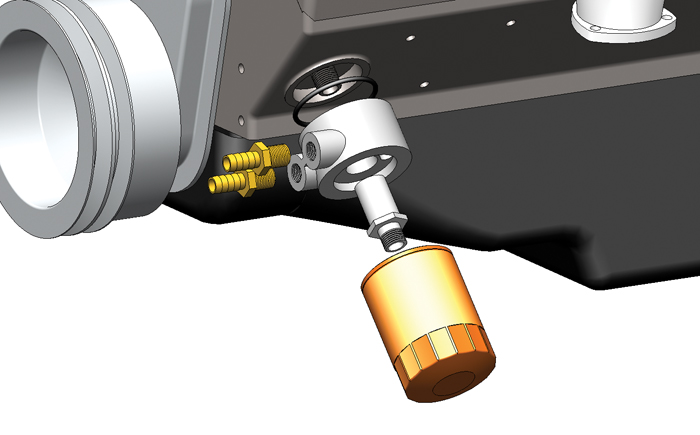

Our top of the line 10 row cooler is perfect for stock to mild street use, this universal stacked plate engine oil cooler kit can not only reduce oil temperatures to help extend the life of lower end components and oil life, it also helps reduce coolant temperatures. The low profile sandwich adapter has a built in oil bypass valve and includes a variety of sleeve nut sizes to fit most passenger vehicles.
Specifications
- Cooler style: Stacked Plate
- Cooler construction: Aluminum
- Cooler inlet size: -8AN

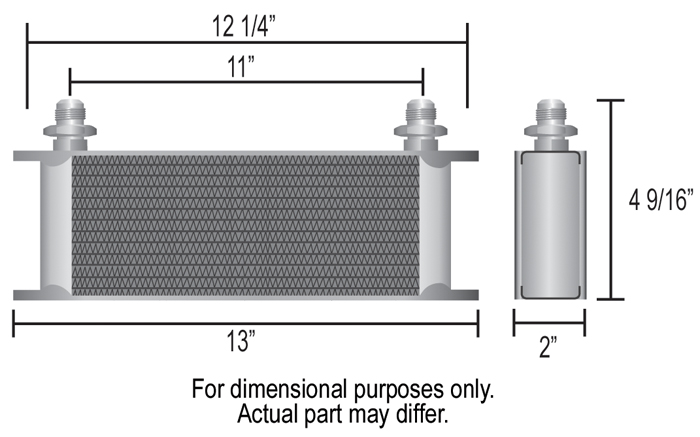

- Cooler width: 13"
- Cooler height: 4-9/16"
- Cooler depth: 2"
- Cooler inlet dim: 11"
- Cooler mounting: 12-1/4"
- Sandwich Adapter type: D
- Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
- Adapter o-ring size: 2-1/2", 2-3/4"
- Adapter thickness: 1-3/4""
- Adapter inlet size: 1/2" NPT
- Hose size: 1/2"
- Hose length: 10'
- 20,000 BTU's Per Hour
- 6oz. Additional Fluid Capacity
Features
- Can reduce engine oil temp up to 50°F
- Helps reduce coolant temperatures
- Extends engine life
- High pressure Stacked Plate style cooler
- Type D Sandwich Adapter fits most applications where clearance is an issue *see application guide for specific applications

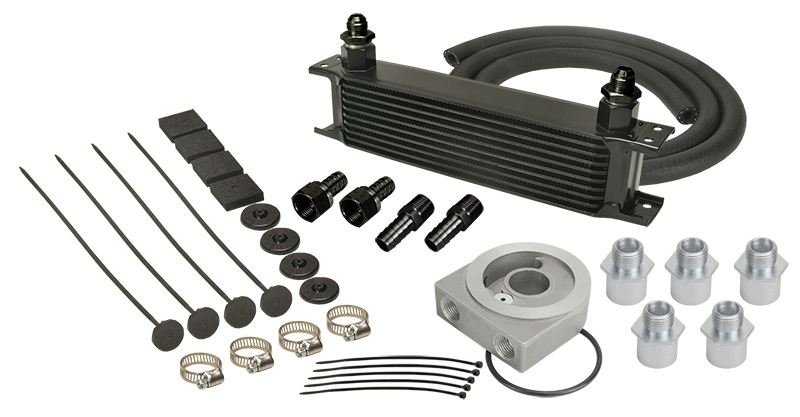

- Complete hardware kit included
- 20,000 BTU's Per Hour
- Cooler is rated at 250psi working pressure and 300psi burst strength
