10 Row Series 10000 Stack Plate Universal Engine Oil Cooler Kit, Sandwich Adapter
Stack Plate Engine Cooler Kit, Sandwich Adapter 15605
Description

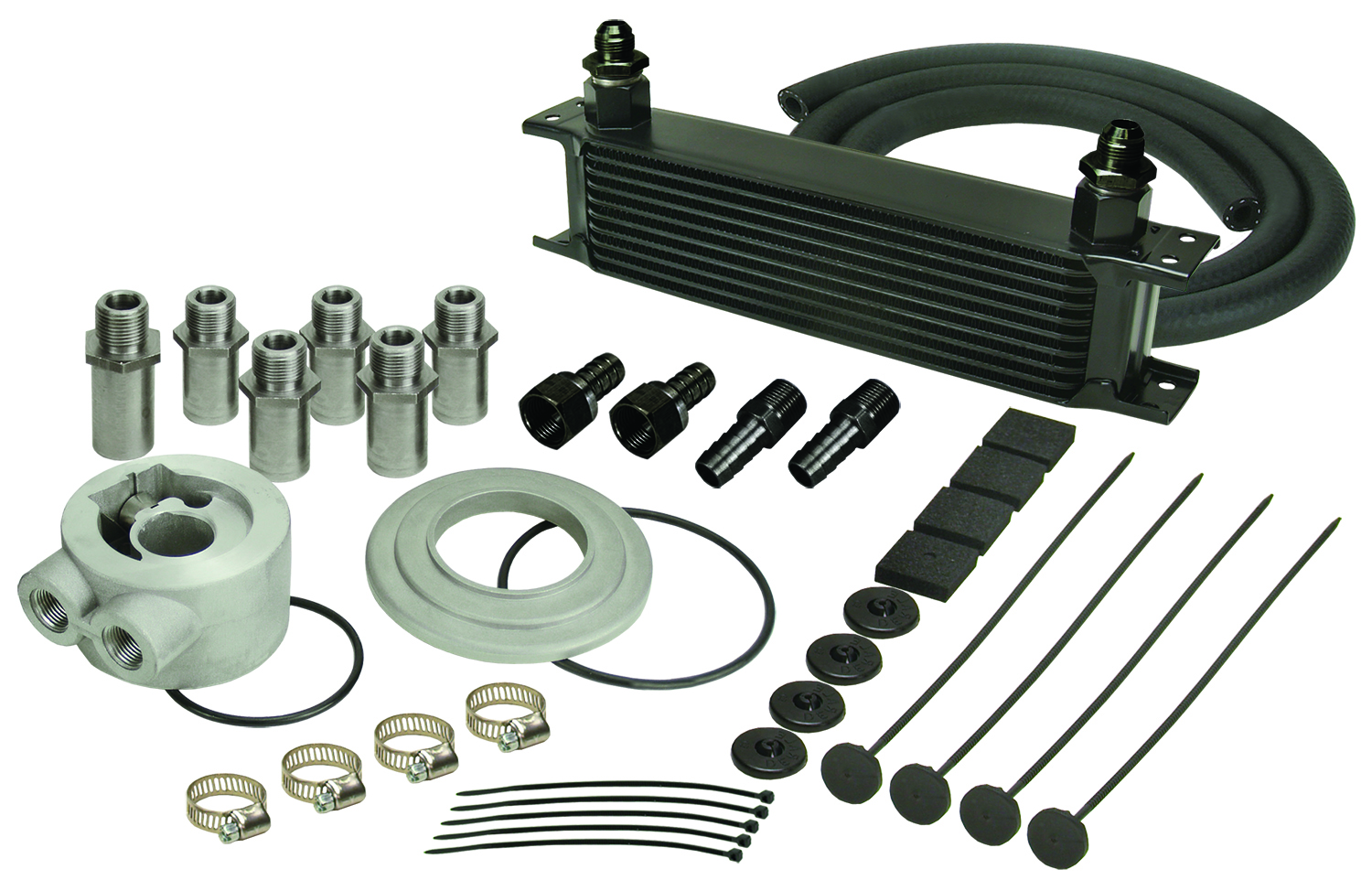

Our top of the line 10 row cooler is perfect for enthusiast level street use, and this universal stacked plate engine oil cooler kit can not only reduce oil temperatures to help extend the life of lower end components and oil life, it also helps reduce coolant temperatures. This universal kit includes 180°F thermostatic sandwich adapter, hose and everything you need to install on most passenger vehicles.
Specifications
- Cooler style: Stacked Plate
- Cooler construction: Aluminum
- Cooler inlet size: -8AN

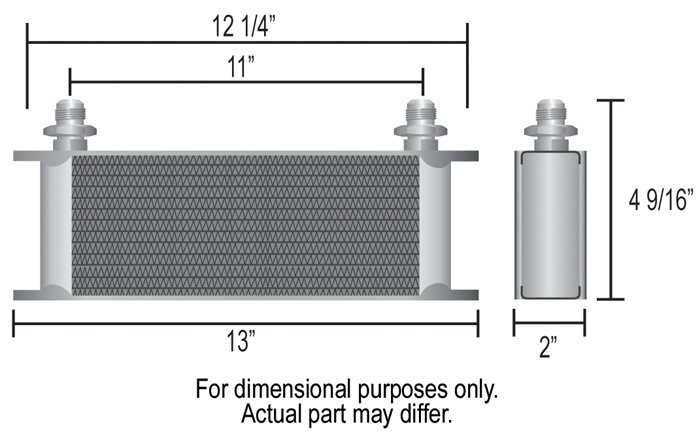

- Cooler width: 13"
- Cooler height: 4-9/16"
- Cooler depth: 2"
- Cooler inlet dim: 11"
- Cooler mounting: 12-1/4"

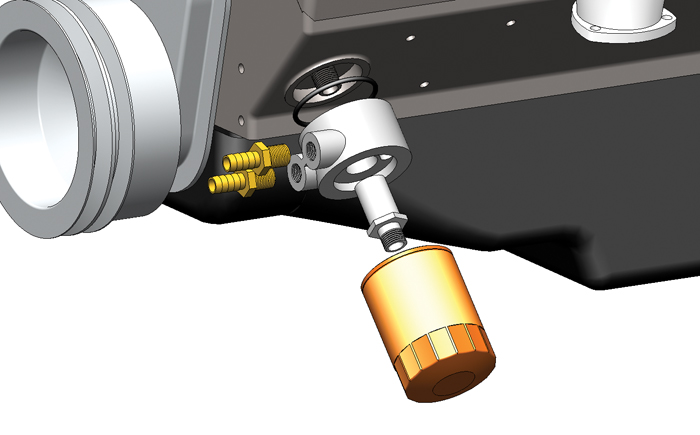

- Sandwich Adapter type: A
- Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
- Adapter o-ring size: 2-3/4" or 3-1/2"
- Adapter thickness: 1-3/4" or 2-1/8"
- Adapter inlet size: 3/8" NPT
- Hose size: 1/2"
- Hose length: 10'
- 20,000 BTU's Per Hour
- 6oz. Additional Fluid Capacity
Features
- Can reduce engine oil temp up to 50°F
- Helps reduce coolant temperatures
- Extends engine life
- High efficiency Stacked Plate 10 row cooler
- Type A Sandwich Adapter fits most applications
- Complete hardware kit included
- 20,000 BTU's Per Hour
- Cooler is rated at 250psi working pressure and 300psi burst strength
